Siemens 3UF7123-1BA01-0 için nasıl fiyat teklifi alabilirim?

Siemens 3UF7123-1BA01-0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSYDN9I9LSXEZ2 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3UF7123-1BA01-0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3UF7123-1BA01-0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3UF7123-1BA01-0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

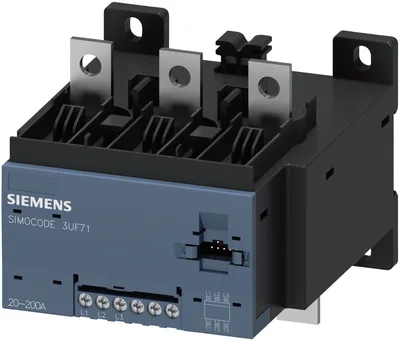

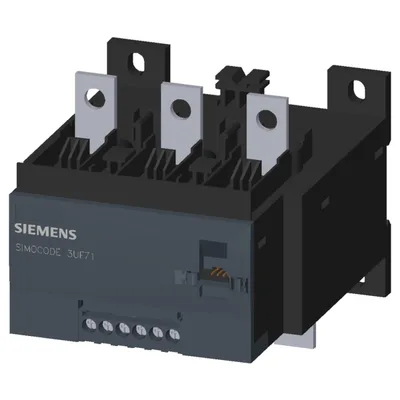

Siemens 3UF7123-1BA01-0

akım/gerilim ölçüm modül için dry-running koruma of centrifugal pumps in hazardous areas, akım setting 20...200 A gerilim measurement en çok 690 V, genişlik 120 mm, bar bağlantı

SiemensMFR # 3UF7123-1BA01-0SKU # YLSYDN9I9LSXEZ2

product brand nameSIMOCODE

product designationCurrent/voltage measuring module

product type designationIUM

measuring procedureRMS value measurement

size of the circuit-breakerS6

current measurementVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

akım/gerilim ölçüm modül için dry-running koruma of centrifugal pumps in hazardous areas, akım setting 20...200 A gerilim measurement en çok 690 V, genişlik 120 mm, bar bağlantı

Siemens 3UF7123-1BA01-0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIMOCODE

product designationCurrent/voltage measuring module

product type designationIUM

General technical data

measuring procedureRMS value measurement

size of the circuit-breakerS6

current measurementVar

voltage measurementVar

active power measurementVar

energy measurementVar

frequency measurementVar

active power monitoring for pump dry-run according to Ignition protection type Ex bVar

measuring procedure for current measurementTRMS

current measuring range extension with external current transformersYok

measuring procedure for voltage measurementTRMS

measurable supply voltage between the line conductors at AC maximum rated value690 V

input for thermistor connectionYok

consumed active power0,5 W

with degree of pollution 3 at AC rated value690 V

for wires of main circuit according to IEC 60947-1 rated value6 kV

surge voltage resistance rated value6.000 V

shock resistance according to IEC 60068-2-2715 g / 11 ms; with basic unit snapped on

vibration resistance1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g; with basic unit snapped on: 1 g

Substance Prohibitance (day/month/year)05/28/2009

SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1

Net Weight0,933 kg

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

Inputs/ Outputs

number of outputs as contact-affected switching element0

Protective and monitoring functions

power factor monitoringVar

ground-fault monitoringVar

voltage detectionVar

trip classCLASS 5E, 7E, 10E, 15E, 20E, 25E, 30E, 35E ve 40E adjustable

current detectionVar

overload protectionVar

Precision

of frequency measurement+/- 1,5 %, 15 A... 400 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C

for current measurement 1+/- 1,5 %, in range 400 A... 1600 A, in range 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C

for current measurement 2+/- 5%, in range 400 A... 1600 A, in range 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C

for voltage measurement 1+/- 1,5 %, in range 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C

at cos phi-measurement 1+/- 1,5 %, 15 A... 400 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C

at cos phi-measurement 2+/- 5%, 400 A... 1600 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C

for active power measurement 1+/- 5%, 15 A... 400 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C

for active power measurement 2+/- 10%, 400 A... 1600 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C

for energy measurement 1+/- 5%, 47 A... 1260 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C

for energy measurement 2+/- 10%, 400 A... 1600 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C

for apparent power measurement 1+/- 3%, 15 A... 400 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C

for apparent power measurement 2+/- 5 %, 400 A... 1600 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C

accuracy of ground-fault monitoringIn the range 30 %.. 120 %/Is: +/- 10 % (Class CI-A), in range 15 %.. 30 % Ie: +/- 25 % (Class CI-B), both values acc. to IEC 60947-1 Annex T

temperature drift per °C0,01 %/°C; Reference temperature: 25°C

measured variable frequency45... 65 Hz

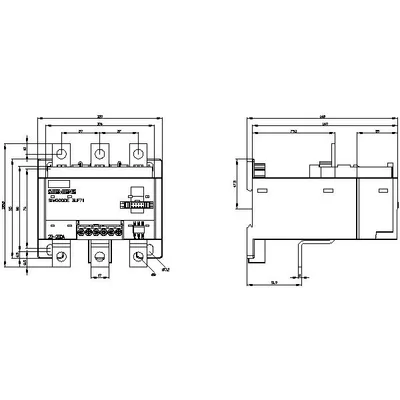

Installation/ mounting/ dimensions

mounting positionany

fastening methoddirect mounting / stand-alone installation

height119 mm

width120 mm

depth145 mm

top30 mm

bottom30 mm

left0 mm

right0 mm

Connections/ Terminals

for main current circuitbusbar connection

for auxiliary and control circuitscrew-type terminals

type of electrical connection at the measurement inputs for voltagescrew-type terminals

finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)

solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)

for AWG cables solid1x (20... 12), 2x (20... 14)

for AWG cables stranded1x (20... 14), 2x (20... 16)

tightening torque at the measurement inputs for voltage0,8... 1,2 N·m

tightening torque [lbf·in] at the measurement inputs for voltage7... 10,3 lbf·in

solid with core end processing16 mm²... 95 mm²

stranded with core end processing25 mm²... 120 mm²

for AWG cables4/0 kcmil... 250 kcmil

design of the thread of the connection screw at the measurement inputs for currentM8 x 25

test voltage for isolation test noteFor insulation tests, it is recommended to disconnect the voltage terminals; this is mandatory for DC test voltages.

Ambient conditions

1 maximum2.000 m

2 maximum3.000 m; maks. +50 °C (no protective separation)

3 maximum4.000 m; maks. +40 °C (no protective separation)

during operation-25... +60 °C

during storage-40... +80 °C

during transport-40... +80 °C

during operation according to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during storage according to IEC 607211K6 (no condensation, relative humidity 10... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4

during transport according to IEC 607212K2, 2C1, 2S1, 2M2

relative humidity during operation10... 95 %

Short-circuit protection

product function short circuit protectionYok

IEC 61508

Safety Integrity Level (SIL) according to IEC 615081

ATEX

IECExVar; IECEx PTB 18.0004X

according to ATEX directive 2014/34/EUBVS 06 ATEX F001, PTB 18 ATEX 5003 X

according to UKCAITS21UKEX0464, ITS21UKEX0455X

explosion device group and category according to ATEX directive 2014/34/EUII (2) G, II (2 ) D, I (M2) / I (M2), II (1/2) G, II (1G/2D)

Galvanic isolation

(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths ve clearances), the information in the "Protective Separation" test report, Yok. A0258, must be observed (link see further information)

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release20... 200 A

— at 50 Hz rated value110... 690 V

— at 60 Hz rated value110... 690 V

operating frequency rated value50... 60 Hz

Control circuit/ Control

type of voltageAC

inrush current maximum2.000 A; 10 x Io

Ürün bilgileri

EAN4047621058238

UPC804766765537

Ürün ailesiSIMOCODE pro 3UF7 motor management and control devices

Yaşam döngüsü durumuAktif

Gümrük tarife kodu85371098

Teslimat ve lojistik

Menşe ülkeGermany

Teslim süresi5 gün

İade edilebilirEvet

Net ağırlık0,933 Kg

Paket ölçüleri (U x G x Y)145 x 136 x 172 MM

Standart paket adedi1 adet

Minimum sipariş adedi1

Tehlikeli maddeHayır

İhracat kontrolüAL : N / ECCN : 9N9999

Çevre ve uyumluluk

RoHS uyumuSince: 28-05-09

WEEE kategorisi5

REACH bilgisiLead monoxide (lead oxide) CAS-No. 1317-36-8 > 0,1 % (w / w)

SCIP numarası4b83adea-c267-4b06-91c8-05e2cb75fca7

Siemens kataloğu

Ürün grubu5836

Katalog kimliğiCC-IC10

Grup koduR711

Ürün sınıfıStraightforward, can be reused over the short term
