Siemens 3UF7111-1AA01-0 için nasıl fiyat teklifi alabilirim?

Siemens 3UF7111-1AA01-0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSSZTLVJWEGJFW ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3UF7111-1AA01-0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3UF7111-1AA01-0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3UF7111-1AA01-0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

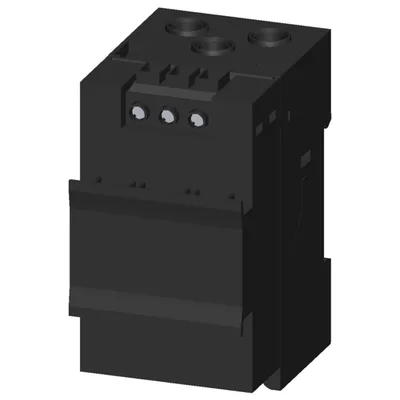

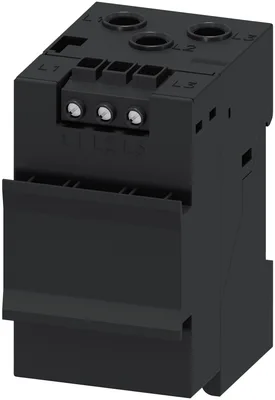

Siemens 3UF7111-1AA01-0

akım/gerilim ölçüm modül V2; Set akım 3...40 A, gerilim measurement en çok 690 V, Overall genişlik 45 mm, Straight-through transformatör, temel ünite required pro V PB, pro V MR, pro V PN veya pro V EIP

SiemensMFR # 3UF7111-1AA01-0SKU # YLSSZTLVJWEGJFW

product brand nameSIMOCODE

product designationCurrent/voltage measuring module

product type designationIUM

measuring procedureRMS value measurement

size of the circuit-breakerS00, S0

current measurementVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3UF7111-1AA01-0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIMOCODE

product designationCurrent/voltage measuring module

product type designationIUM

General technical data

measuring procedureRMS value measurement

size of the circuit-breakerS00, S0

current measurementVar

voltage measurementVar

active power measurementVar

energy measurementVar

frequency measurementVar

measuring procedure for current measurementTRMS

current measuring range extension with external current transformersVar

measuring procedure for voltage measurementTRMS

measurable supply voltage between the line conductors at AC maximum rated value690 V

input for thermistor connectionYok

consumed active power0,5 W

with degree of pollution 3 at AC rated value690 V

for wires of main circuit according to IEC 60947-1 rated value6 kV

surge voltage resistance rated value6.000 V

shock resistance according to IEC 60068-2-2715 g / 11 ms; with basic unit snapped on

vibration resistance1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g; with basic unit snapped on: 1 g

reference code according to IEC 81346-2F

Substance Prohibitance (day/month/year)05/28/2009

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1

Net Weight0,178 kg

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

Inputs/ Outputs

number of outputs as contact-affected switching element0

Protective and monitoring functions

power factor monitoringVar

ground-fault monitoringVar

voltage detectionVar

trip classCLASS 5E, 7E, 10E, 15E, 20E, 25E, 30E, 35E ve 40E adjustable

current detectionVar

overload protectionVar

Precision

of frequency measurement+/- 1,5 %, 2,25 A... 80 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C

for current measurement 1+/- 1,5 %, in range 2,25 A... 80 A, in range 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C

for current measurement 2+/- 3%, in range 80 A... 320 A, in range 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C

for voltage measurement 1+/- 1,5 %, in range 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C

at cos phi-measurement 1+/- 1,5 %, 7,5 A... 230 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C

at cos phi-measurement 2+/- 5%, 80 A... 320 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C

for active power measurement 1+/- 5%, 2,25 A... 80 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C

for active power measurement 2+/- 10%, 80 A... 320 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C

for energy measurement 1+/- 5%, 2,25 A... 80 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C

for energy measurement 2+/- 10%, 80 A... 320 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C

for apparent power measurement 1+/- 3%, 2,25 A... 80 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C

for apparent power measurement 2+/- 1,5%, 2,25 A... 80 A, 0,85 x 110 V... 1,1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C

accuracy of ground-fault monitoringIn the range 30 %.. 120 %/Is: +/- 10 % (Class CI-A), in range 15 %.. 30 % Ie: +/- 25 % (Class CI-B), both values acc. to IEC 60947-1 Annex T

temperature drift per °C0,01 %/°C; Reference temperature: 25°C

measured variable frequency45... 65 Hz

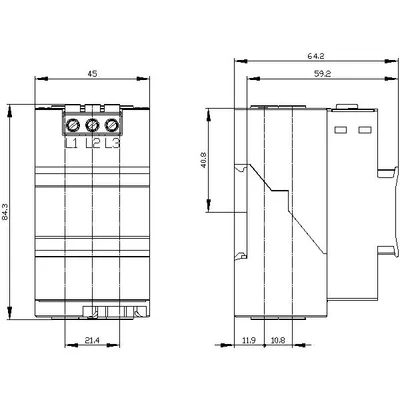

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew ve snap-on mounting

height84 mm

width45 mm

depth64 mm

top30 mm

bottom30 mm

left0 mm

right0 mm

diameter of inlet opening7,5 mm

diameter of inlet opening for current measurement7,5 mm

Connections/ Terminals

for main current circuitstraight-through transformers

for auxiliary and control circuitscrew-type terminals

type of electrical connection at the measurement inputs for voltagescrew-type terminals

finely stranded with core end processing1x (0,25... 2,5 mm²), 2x (0,25... 1,0 mm²)

solid1x (0,25... 2,5 mm²), 2x (0,25... 1,0 mm²)

for AWG cables solid1x (24... 14), 2x (24... 18)

for AWG cables stranded1x (20... 14), 2x (20... 16)

tightening torque at the measurement inputs for voltage0,5... 0,6 N·m

tightening torque [lbf·in] at the measurement inputs for voltage4,4... 5,3 lbf·in

test voltage for isolation test noteFor insulation tests, it is recommended to disconnect the voltage terminals; this is mandatory for DC test voltages.

Ambient conditions

1 maximum2.000 m

2 maximum3.000 m; maks. +50 °C (no protective separation)

3 maximum4.000 m; maks. +40 °C (no protective separation)

during operation-25... +60 °C

during storage-40... +80 °C

during transport-40... +80 °C

during operation according to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during storage according to IEC 607211K6 (no condensation, relative humidity 10... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4

during transport according to IEC 607212K2, 2C1, 2S1, 2M2

relative humidity during operation10... 95 %

Short-circuit protection

product function short circuit protectionYok

IEC 61508

Safety Integrity Level (SIL) according to IEC 615081

ATEX

according to ATEX directive 2014/34/EUBVS 06 ATEX F001

according to UKCAITS21UKEX0464

explosion device group and category according to ATEX directive 2014/34/EUII (2) G, II (2 ) D, I (M2)

Galvanic isolation

(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths ve clearances), the information in the "Protective Separation" test report, Yok. A0258, must be observed (link see further information)

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release3... 40 A

— at 50 Hz rated value110... 690 V

— at 60 Hz rated value110... 690 V

operating frequency rated value50... 60 Hz

Control circuit/ Control

type of voltageAC

inrush current maximum400 A; 10 x Io

Ürün bilgileri

EAN4047621025766

UPC804766420177

Ürün ailesiSIMOCODE pro 3UF7 motor management and control devices

Yaşam döngüsü durumuAktif

Gümrük tarife kodu85371098

Teslimat ve lojistik

Menşe ülkeGermany

Teslim süresi5 gün

İade edilebilirEvet

Net ağırlık0,178 Kg

Paket ölçüleri (U x G x Y)99 x 53 x 75 MM

Standart paket adedi1 adet

Minimum sipariş adedi1

Tehlikeli maddeHayır

İhracat kontrolüAL : N / ECCN : 9N9999

Çevre ve uyumluluk

RoHS uyumuSince: 28-05-09

WEEE kategorisi5

REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)

SCIP numarasıd03fe8e4-bf4c-4f07-b1fa-bfa971ceb240

Siemens kataloğu

Ürün grubu5836

Katalog kimliğiCC-IC10

Grup koduR711

Ürün sınıfıStraightforward, can be reused over the short term
