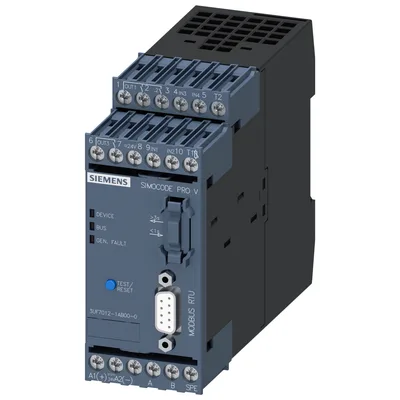

Siemens 3UF7012-1AB00-0

temel cihaz SIMOCODE pro V MR, MODBUS RTU arayüz 57,6 Kbps, RS-485, 4 I/3 O freely configurable, Us: 24 V DC, giriş için thermistor bağlantı monostable röle çıkış, expandable by expansion modülleri

SiemensMFR # 3UF7012-1AB00-0SKU # CEY-8EF3B038DD69

product brand nameSIMOCODE

product designationMotor management system

design of the productbasic unit 2

product type designationpro V MR

current measurementYok

voltage measurementYok

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3UF7012-1AB00-0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIMOCODE

product designationMotor management system

design of the productbasic unit 2

product type designationpro V MR

General technical data

current measurementYok

voltage measurementYok

active power measurementVar

energy measurementYok

frequency measurementYok

bus communicationVar

data acquisition functionVar

diagnostics functionVar

password protectionVar

test functionVar

maintenance functionVar

MRRT redundancy procedureYok

input for thermistor connectionVar

digital inputVar

input for analog temperature sensorsYok

input for ground fault detectionYok

relay outputVar

temperature monitoring moduleVar

current measuring moduleVar

current/voltage measuring moduleVar

fail-safe digital I/O moduleVar

ground-fault monitoring moduleVar

decoupling moduleVar

analog I/O moduleVar

digital I/O module with monostable outputsVar

digital I/O module with bistable outputsVar

control unit with displayVar

control unitVar

consumed active power2,6 W

insulation voltage with degree of pollution 3 at AC rated value300 V

surge voltage resistance rated value4.000 V

according to IEC 60068-2-2715 g / 11 ms

vibration resistance1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g

at 24 V6 A

at 120 V6 A

at 230 V3 A

at 24 V2 A

at 60 V0,55 A

at 125 V0,25 A

mechanical service life (operating cycles) typical10.000.000

electrical endurance (operating cycles) typical100.000

buffering time in the event of power failure0,05 s

reference code according to IEC 81346-2F

at 50 °C6 A

at 60 °C5 A

type of input characteristicType 1 in accordance with EN 61131-2

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1 Perfluorobutane sulfonic acid (PFBS) ve its salts CAS-Yok. -

Net Weight0,332 kg

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

due to high-frequency radiation according to IEC 61000-4-610 V

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

conducted HF interference emissions according to CISPR11corresponds to degree of severity A

field-bound HF interference emission according to CISPR11corresponds to degree of severity A

Inputs/ Outputs

parameterizable inputsVar

parameterizable outputsVar

number of inputs4

for thermistor connection1

number of digital inputs with a common reference potential4

type 1 acc. to IEC 61131Var

rated value24 V

number of outputs3

number of semiconductor outputs0

number of outputs as contact-affected switching element3

switching behaviormonostable

number of relay outputs3

type of relay outputsMonostable

wire length for digital signals maximum300 m

with conductor cross-section = 0.5 mm² maximum50 m

with conductor cross-section = 1.5 mm² maximum150 m

with conductor cross-section = 2.5 mm² maximum250 m

Protective and monitoring functions

asymmetry detectionVar

blocking current evaluationVar

power factor monitoringVar

ground fault detectionVar

ground-fault monitoringYok

phase failure detectionVar

phase sequence recognitionVar

voltage detectionVar

monitoring of number of start operationsVar

overvoltage detectionVar

overcurrent detection 1 phaseVar

undervoltage detectionVar

undercurrent detection 1 phaseVar

active power monitoringVar

current detectionVar

overload protectionVar

evaluation of thermistor motor protectionVar

total cold resistance number of sensors in series maximum1,5 kΩ

response value of thermoresistor3.400... 3.800 Ω

of the short-circuit control9 Ω

release value of thermoresistor1.500... 1.650 Ω

Motor control functions

parameterizable overload relayVar

circuit breaker controlVar

direct startVar

reverse startingVar

star-delta circuitVar

star-delta reversing circuitVar

Dahlander circuitVar

Dahlander reversing circuitVar

pole-changing switch circuitVar

pole-changing switch reversing circuitVar

slide controlVar

valve controlVar

Communication/ Protocol

PROFIBUS DP protocolYok

PROFINET IO protocolYok

PROFIsafe protocolYok

Modbus RTUVar

EtherNet/IPYok

OPC UA sunucusuYok

LLDPYok

Address Resolution Protocol (ARP)Yok

SNMPYok

HTTPSYok

NTPYok

Media Redundancy Protocol (MRP)Yok

web serverYok

shared deviceYok

at the Ethernet interface AutocrossoverYok

at the Ethernet interface AutonegotiationYok

at the Ethernet interface AutosensingYok

is supported Device Level Ring (DLR)Yok

is supported PROFINET system redundancy (S2)Yok

supports PROFIenergy measured valuesYok

supports PROFIenergy shutdownYok

transfer rate maximum0,057 Mbit/s

I&M0 - device-specific informationVar

I&M1 - higher level designation/location designationVar

I&M2 - installation dateVar

I&M3 - commentVar

type of electrical connection of the communication interface9-pin D-sub socket (57,6 Kbit) / screw terminal (57,6 Kbit)

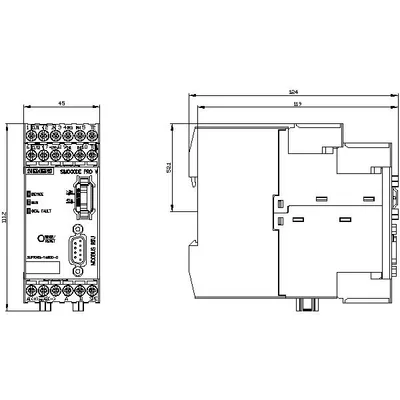

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew ve snap-on mounting

height111 mm

width45 mm

depth124 mm

top40 mm

bottom40 mm

left0 mm

right0 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

for auxiliary and control circuitscrew-type terminals

solid1x (0,5... 4.0mm²), 2x (0,5... 2,5 mm²)

finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)

for AWG cables solid1x (20... 12), 2x (20... 14)

for AWG cables stranded1x (20... 14), 2x (20... 16)

tightening torque with screw-type terminals0,8... 1,2 N·m

tightening torque [lbf·in] with screw-type terminals7... 10,3 lbf·in

type of connectable conductor cross-sections for PROFIBUS wire2x 0,34 mm², AWG 22

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +80 °C

during transport-40... +80 °C

during operation according to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during storage according to IEC 607211K6 (no condensation, relative humidity 10... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4

during transport according to IEC 607212K2, 2C1, 2S1, 2M2

during operation5... 95 %

contact rating of auxiliary contacts according to ULB300 / R300

Short-circuit protection

design of short-circuit protection per outputFuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1,6 A (IEC 60947-5-1) veya 6 A (I_K < 500 A)

Electrical Safety

touch protection against electrical shockfinger-safe

ATEX

according to ATEX directive 2014/34/EUBVS 06 ATEX F001

acc. to Equipment and Protective System Intended for Use in Potentially Explosive Atmospheres Regulations 2016 (S.I. 2016 No.1107)ITS21UKEX0464, ITS21UKEX0455X

according to UKCAITS21UKEX0464, ITS21UKEX0455X

explosion device group and category according to ATEX directive 2014/34/EUI (M2), II (2) G, II (2) D

Galvanic isolation

(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths ve clearances), the information in the "Protective Separation" test report, Yok. A0258, must be observed (link see further information)

design of the electrical isolationProtective separation in accordance with IEC 60947-1 for all circuits

Control circuit/ Control

product function soft starter controlVar

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

control supply voltage 1 at DC rated value24 V

initial value0,8

full-scale value1,2

at 24 V11 A

at 24 V1,1 ms
