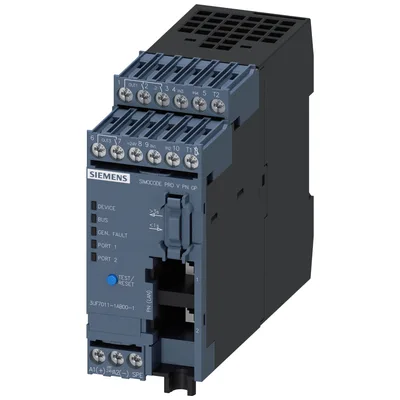

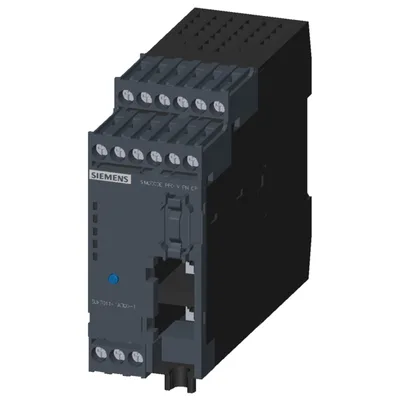

Siemens 3UF7011-1AB00-1

temel cihaz SIMOCODE pro V PN GP, Ethernet/PROFINET IO, PN system redundancy, OPC UA server, web server, transfer rate 100 Mbps, 2 x bus bağlantı via RJ45, 4 I/3 O freely configurable, Us: 24 V DC, giriş için thermistor bağlantı monostable röle çıkış, expandable by 1 genişleme modülü(DM, TM, EM)

SiemensMFR # 3UF7011-1AB00-1SKU # YLS5XIT6ZBZKMFH

product brand nameSIMOCODE

product designationMotor management system

design of the productbasic unit 3

product type designationpro V PN GP

current measurementYok

voltage measurementYok

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3UF7011-1AB00-1

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIMOCODE

product designationMotor management system

design of the productbasic unit 3

product type designationpro V PN GP

General technical data

current measurementYok

voltage measurementYok

active power measurementYok

energy measurementYok

frequency measurementYok

bus communicationVar

data acquisition functionVar

diagnostics functionVar

password protectionVar

test functionVar

maintenance functionVar

input for thermistor connectionVar

digital inputVar

input for analog temperature sensorsYok

input for ground fault detectionYok

relay outputVar

temperature monitoring moduleVar

current measuring moduleVar

current/voltage measuring moduleYok

fail-safe digital I/O moduleYok

ground-fault monitoring moduleVar

decoupling moduleYok

analog I/O moduleYok

digital I/O module with monostable outputsVar

digital I/O module with bistable outputsYok

control unit with displayYok

control unitVar

consumed active power3,6 W

insulation voltage with degree of pollution 3 at AC rated value300 V

surge voltage resistance rated value4.000 V

according to IEC 60068-2-2715 g / 11 ms

vibration resistance1 … 6 Hz / 15 mm; 6 … 500 Hz / 2 g

at 24 V6 A

at 120 V6 A

at 230 V3 A

at 24 V2 A

at 60 V0,55 A

at 125 V0,25 A

mechanical service life (operating cycles) typical10.000.000

electrical endurance (operating cycles) typical100.000

buffering time in the event of power failure0,02 s

reference code according to IEC 81346-2F

at 50 °C6 A

at 60 °C5 A

type of input characteristicType 1 in accordance with EN 61131-2

Substance Prohibitance (day/month/year)08/31/2018

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-Yok. 80-05-7

Net Weight0,293 kg

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

due to high-frequency radiation according to IEC 61000-4-610 V

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

conducted HF interference emissions according to CISPR11corresponds to degree of severity A

field-bound HF interference emission according to CISPR11corresponds to degree of severity A

Inputs/ Outputs

parameterizable inputsVar

parameterizable outputsVar

number of inputs4

for thermistor connection1

number of digital inputs with a common reference potential4

type 1 acc. to IEC 61131Var

rated value24 V

number of outputs3

number of semiconductor outputs0

number of outputs as contact-affected switching element3

switching behaviormonostable

number of relay outputs3

type of relay outputsMonostable

wire length for digital signals maximum300 m

with conductor cross-section = 0.5 mm² maximum50 m

with conductor cross-section = 1.5 mm² maximum150 m

with conductor cross-section = 2.5 mm² maximum250 m

Protective and monitoring functions

asymmetry detectionVar

blocking current evaluationVar

power factor monitoringYok

ground fault detectionVar

ground-fault monitoringYok

phase failure detectionVar

phase sequence recognitionYok

voltage detectionYok

monitoring of number of start operationsVar

overvoltage detectionYok

overcurrent detection 1 phaseVar

undervoltage detectionYok

undercurrent detection 1 phaseVar

active power monitoringYok

current detectionVar

overload protectionVar

evaluation of thermistor motor protectionVar

total cold resistance number of sensors in series maximum1,5 kΩ

response value of thermoresistor3.400... 3.800 Ω

of the short-circuit control9 Ω

release value of thermoresistor1.500... 1.650 Ω

Motor control functions

parameterizable overload relayVar

circuit breaker controlVar

direct startVar

reverse startingVar

star-delta circuitVar

star-delta reversing circuitYok

Dahlander circuitYok

Dahlander reversing circuitYok

pole-changing switch circuitYok

pole-changing switch reversing circuitYok

slide controlYok

valve controlYok

Communication/ Protocol

PROFIBUS DP protocolYok

PROFINET IO protocolVar

PROFIsafe protocolYok

Modbus RTUYok

EtherNet/IPYok

OPC UA sunucusuVar

LLDPVar

Address Resolution Protocol (ARP)Var

SNMPVar

HTTPSVar

NTPVar

Media Redundancy Protocol (MRP)Var

web serverVar

shared deviceYok

at the Ethernet interface AutocrossoverVar

at the Ethernet interface AutonegotiationVar

at the Ethernet interface AutosensingVar

Media Redundancy Protocol for Planned Duplication (MRPD)Var

is supported Device Level Ring (DLR)Yok

is supported PROFINET system redundancy (S2)Var

supports PROFIenergy measured valuesVar

supports PROFIenergy shutdownVar

transfer rate100 Mbit/s

transfer rate maximum100 Mbit/s

PROFINET conformity classC

I&M0 - device-specific informationVar

I&M1 - higher level designation/location designationVar

I&M2 - installation dateVar

I&M3 - commentVar

type of electrical connection of the communication interface2x RJ45

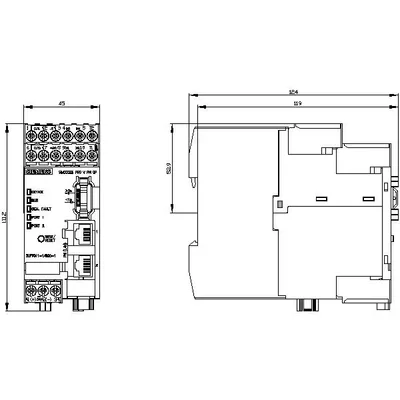

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew ve snap-on mounting

height111 mm

width45 mm

depth124 mm

top40 mm

bottom40 mm

left0 mm

right0 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

for auxiliary and control circuitscrew-type terminals

solid1x (0,5... 4.0mm²), 2x (0,5... 2,5 mm²)

finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,5 mm²)

for AWG cables solid1x (20... 12), 2x (20... 14)

for AWG cables stranded1x (20... 14), 2x (20... 16)

tightening torque with screw-type terminals0,8... 1,2 N·m

tightening torque [lbf·in] with screw-type terminals7... 10,3 lbf·in

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +80 °C

during transport-40... +80 °C

during operation according to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during storage according to IEC 607211K6 (no condensation, relative humidity 10... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4

during transport according to IEC 607212K2, 2C1, 2S1, 2M2

during operation5... 95 %

contact rating of auxiliary contacts according to ULB300 / R300

Short-circuit protection

design of short-circuit protection per outputFuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1,6 A (IEC 60947-5-1) veya 6 A (I_K < 500 A)

Electrical Safety

touch protection against electrical shockfinger-safe

ATEX

IECExVar; IECEx BVS 20,0020

according to ATEX directive 2014/34/EUBVS 06 ATEX F001

according to UKCAITS21UKEX0464

explosion device group and category according to ATEX directive 2014/34/EUI (M2), II (2) G, II (2) D

Galvanic isolation

(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths ve clearances), the information in the "Protective Separation" test report, Yok. A0258, must be observed (link see further information)

design of the electrical isolationProtective separation in accordance with IEC 60947-1 for all circuits

Control circuit/ Control

product function soft starter controlVar

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

control supply voltage 1 at DC rated value24 V

initial value0,85

full-scale value1,2

at 24 V17 A

at 24 V1,1 ms

Ürün bilgileri

EAN4047621056128

UPC804766730573

Ürün ailesiSIMOCODE pro 3UF7 motor management and control devices

Yaşam döngüsü durumuAktif

Gümrük tarife kodu85371098

Teslimat ve lojistik

Menşe ülkeGermany

Teslim süresi5 gün

İade edilebilirEvet

Net ağırlık0,293 Kg

Paket ölçüleri (U x G x Y)132 x 52 x 134 MM

Standart paket adedi1 adet

Minimum sipariş adedi1

Tehlikeli maddeHayır

İhracat kontrolüAL : N / ECCN : 9N9999

Çevre ve uyumluluk

RoHS uyumuSince: 31-08-18

WEEE kategorisi5

REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)

SCIP numarası26e6cd01-eade-49ab-9292-c4c9462b823a

Siemens kataloğu

Ürün grubu5836

Katalog kimliğiCC-IC10

Grup koduR711

Ürün sınıfıStraightforward, can be reused over the short term
