Siemens 3TG1001-1BB4

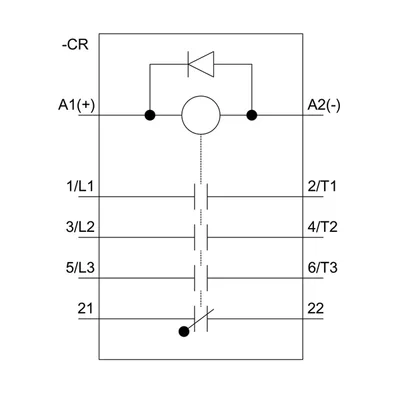

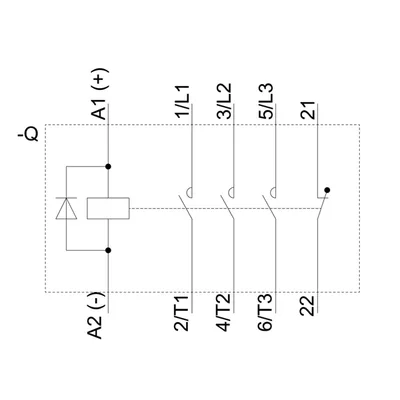

power relay, AC-3, 8.4 A, 4 kW / 400 V, 3-pole, 24 V DC, auxiliary contacts: 1 NC, flat connector 6.3 x 0.8 mm
consumed active power4 W
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)07/01/2006
Net Weight141 g
ambient temperature during operation-25... +55 °C
number of poles4
Ürün Hakkında
power relay, AC-3, 8.4 A, 4 kW / 400 V, 3-pole, 24 V DC, auxiliary contacts: 1 NC, flat connector 6.3 x 0.8 mm
Siemens 3TG1001-1BB4
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
consumed active power4 W
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)07/01/2006
Net Weight141 g
ambient temperature during operation-25... +55 °C
number of poles4
number of NO contacts for main contacts3
number of NC contacts for main contacts0
type of voltageDC
at AC-1 at 400 V rated value16 A
at AC-3 at 400 V rated value8,4 A
at AC-3e at 400 V rated value6,4 A
at AC-3 at 400 V rated value4 kW
at AC-3e at 400 V rated value3 kW
control supply voltage at DC rated value24 V
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
fastening method side-by-side mountingVar
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail
height62 mm
width36 mm
depth61 mm
for main current circuittab terminals
for auxiliary and control circuittab terminals
Safety related data
mirror contact according to IEC 60947-4-1Var
suitable for safety functionVar
service life maximum20 a
with low demand rate according to SN 3192040 %
with high demand rate according to SN 3192073 %
B10 value with high demand rate according to SN 31920400.000
failure rate [FIT] with low demand rate according to SN 31920100 1/s
ISO 13849
device type according to ISO 13849-13
overdimensioning according to ISO 13849-2 necessaryVar
IEC 61508
safety device type according to IEC 61508-2Type A
Electrical Safety
protection class IP on the front according to IEC 60529IP00
