Siemens 3TC7814-0EB için nasıl fiyat teklifi alabilirim?

Siemens 3TC7814-0EB için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B031DB4F ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3TC7814-0EB stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3TC7814-0EB orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3TC7814-0EB teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

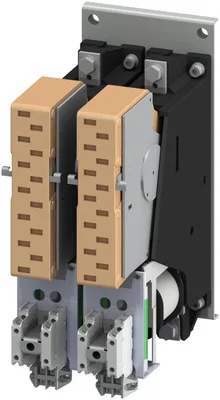

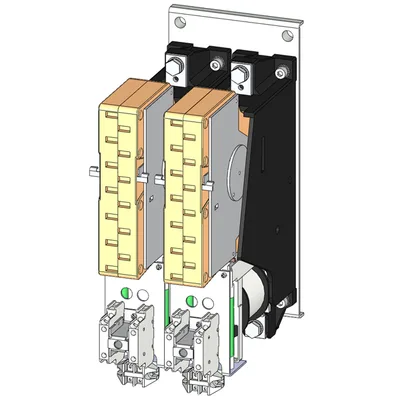

Siemens 3TC7814-0EB

contactor, DC-3/DC-5, 400 A, 2-pole, 24 V DC, auxiliary contacts: 4 NO + 4 NC, connecting bar

SiemensMFR # 3TC7814-0EBSKU # CEY-8EF3B031DB4F

product designationContactor

product type designation3TC

size of contactor12

function module for communicationYok

auxiliary switchYok

insulation voltage rated value1.500 V

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

contactor, DC-3/DC-5, 400 A, 2-pole, 24 V DC, auxiliary contacts: 4 NO + 4 NC, connecting bar

Siemens 3TC7814-0EB

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product designationContactor

product type designation3TC

General technical data

size of contactor12

function module for communicationYok

auxiliary switchYok

insulation voltage rated value1.500 V

surge voltage resistance rated value8 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1630 V

of contactor typical30.000.000

of the contactor with added auxiliary switch block typical30.000.000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)03/01/2017

SVHC substance nameLead CAS-Yok. 7439-92-1

Net Weight22 kg

Ambient conditions

during operation-25... +55 °C

during storage-50... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles2

number of poles for main current circuit2

number of NO contacts for main contacts2

number of NC contacts for main contacts0

type of voltageDC

— at 24 V rated value500 A

— at 110 V rated value500 A

— at 220 V rated value500 A

— at 440 V rated value500 A

— at 600 V rated value500 A

— at 750 V rated value500 A

— at 24 V rated value500 A

— at 110 V rated value500 A

— at 220 V rated value500 A

— at 440 V rated value500 A

— at 600 V rated value500 A

— at 750 V rated value500 A

— at 1500 V rated value500 A

— at 220 V rated value400 A

— at 600 V rated value400 A

— at 750 V rated value400 A

— at 24 V rated value400 A

— at 110 V rated value400 A

— at 220 V rated value400 A

— at 440 V rated value400 A

— at 600 V rated value400 A

— at 750 V rated value400 A

— at 24 V rated value400 A

— at 110 V rated value400 A

— at 220 V rated value400 A

— at 440 V rated value400 A

— at 600 V rated value400 A

— at 750 V rated value400 A

— at 1500 V rated value400 A

— at 110 V rated value55 kW

— at 220 V rated value110 kW

— at 440 V rated value220 kW

— at 750 V rated value375 kW

— at 1500 V rated value750 kW

— at 110 V rated value35 kW

— at 220 V rated value70 kW

— at 440 V rated value140 kW

— at 600 V rated value200 kW

— at 750 V rated value250 kW

— at 1200 V rated value400 kW

— at 1500 V rated value500 kW

at DC-1 maximum1.000 1/h

at DC-3 maximum500 1/h

at DC-5 maximum500 1/h

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

at 50 Hz0,8... 1,2

closing power of magnet coil at DC92 W

holding power of magnet coil at DC92 W

closing delay at DC60... 100 ms

opening delay at DC20... 35 ms

arcing time40... 70 ms

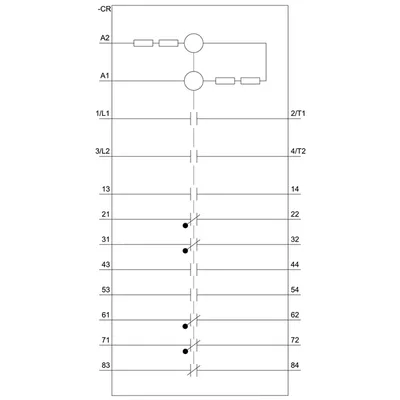

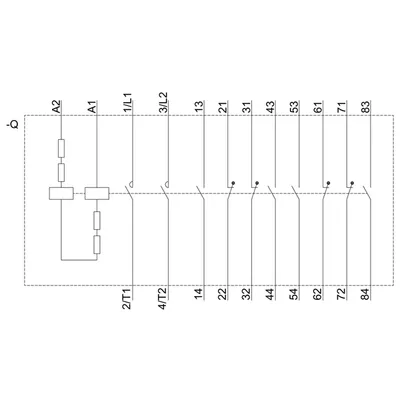

Auxiliary circuit

number of NC contacts for auxiliary contacts4

instantaneous contact4

number of NO contacts for auxiliary contacts4

instantaneous contact4

number of CO contacts for auxiliary contacts0

identification number and letter for switching elements44

operational current at AC-12 maximum10 A

at 230 V rated value5,6 A

at 400 V rated value3,6 A

at 500 V rated value2,5 A

at 24 V rated value10 A

at 48 V rated value10 A

at 60 V rated value10 A

at 110 V rated value3,2 A

at 125 V rated value2,5 A

at 220 V rated value0,9 A

at 600 V rated value0,22 A

at 24 V rated value10 A

at 48 V rated value5 A

at 60 V rated value5 A

at 110 V rated value1,14 A

at 125 V rated value0,98 A

at 220 V rated value0,48 A

at 600 V rated value0,07 A

Short-circuit protection

— with type of coordination 1 required2 x 3NE1330-5E (315 A) parallel (1500 V, 12 kA)

— with type of coordination 2 required2 x 3NE1330-5E (315 A) parallel (1500 V, 12 kA)

for short-circuit protection of the auxiliary switch requiredgG: 16 A (500 V, 1 kA)

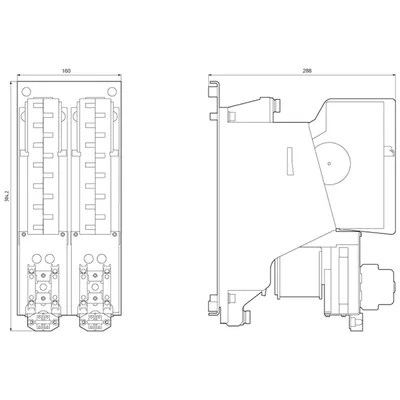

Installation/ mounting/ dimensions

mounting position+/-22,5° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface

fastening method side-by-side mountingVar

fastening methodscrew fixing

height375 mm

width160 mm

depth290 mm

— forwards20 mm

— backwards0 mm

— upwards25 mm

— downwards10 mm

— at the side10 mm

— forwards50 mm

— backwards0 mm

— upwards25 mm

— at the side10 mm

— downwards10 mm

— forwards50 mm

— backwards0 mm

— upwards25 mm

— downwards10 mm

— at the side10 mm

Connections/ Terminals

type of electrical connectionscrew terminal

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

— solid or stranded2x (1... 2,5 mm²)

— finely stranded with core end processing2x (0,75... 1,5 mm²)

Safety related data

product function mirror contact according to IEC 60947-4-1Var; 1 auxiliary NC contact her biri of the right ve left current path must be connected in series

Electrical Safety
