Siemens 3TC5617-0BP0 için nasıl fiyat teklifi alabilirim?

Siemens 3TC5617-0BP0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B031DB50 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3TC5617-0BP0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3TC5617-0BP0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3TC5617-0BP0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

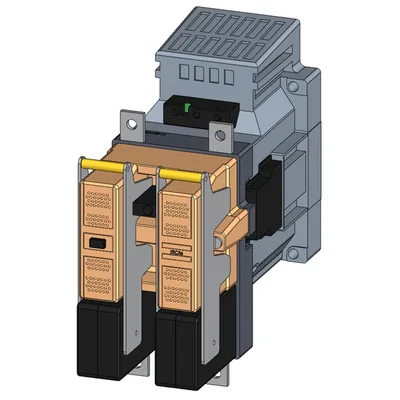

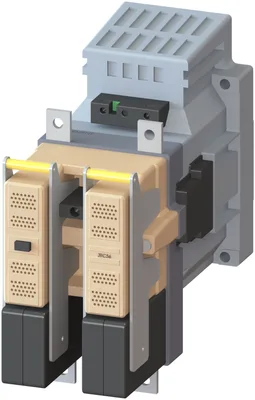

Siemens 3TC5617-0BP0

contactor, DC-3/DC-5, 400 A, 2-pole, 230 V AC, 50 Hz / 277 V AC, 60 Hz, auxiliary contacts: 2 NO + 2 NC, connecting bar, frame size 12

SiemensMFR # 3TC5617-0BP0SKU # CEY-8EF3B031DB50

product designationContactor

product type designation3TC

size of contactor12

function module for communicationYok

auxiliary switchVar

insulation voltage rated value1.000 V

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

contactor, DC-3/DC-5, 400 A, 2-pole, 230 V AC, 50 Hz / 277 V AC, 60 Hz, auxiliary contacts: 2 NO + 2 NC, connecting bar, frame size 12

Siemens 3TC5617-0BP0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product designationContactor

product type designation3TC

General technical data

size of contactor12

function module for communicationYok

auxiliary switchVar

insulation voltage rated value1.000 V

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1660 V

at AC12 g / 5 ms, 5,6 g / 10 ms

of contactor typical10.000.000

of the contactor with added auxiliary switch block typical10.000.000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-Yok. 7439-92-1

Net Weight14,537 kg

Ambient conditions

during operation-25... +55 °C

during storage-50... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles2

number of poles for main current circuit2

number of NO contacts for main contacts2

number of NC contacts for main contacts0

type of voltageDC

— at 24 V rated value400 A

— at 110 V rated value400 A

— at 220 V rated value400 A

— at 24 V rated value400 A

— at 110 V rated value400 A

— at 220 V rated value400 A

— at 440 V rated value400 A

— at 600 V rated value400 A

— at 750 V rated value400 A

— at 220 V rated value400 A

— at 600 V rated value400 A

— at 750 V rated value400 A

— at 24 V rated value220 A

— at 110 V rated value220 A

— at 220 V rated value400 A

— at 24 V rated value400 A

— at 110 V rated value400 A

— at 220 V rated value400 A

— at 440 V rated value400 A

— at 600 V rated value400 A

— at 750 V rated value400 A

— at 110 V rated value44 kW

— at 220 V rated value88 kW

— at 440 V rated value176 kW

— at 750 V rated value300 kW

— at 110 V rated value35 kW

— at 220 V rated value70 kW

— at 440 V rated value140 kW

— at 600 V rated value200 kW

— at 750 V rated value250 kW

at DC-1 maximum1.000 1/h

at DC-3 maximum600 1/h

at DC-5 maximum600 1/h

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz rated value230 V

at 60 Hz rated value277 V

at 50 Hz0,8... 1,1

apparent pick-up power of magnet coil at AC1.780 V·A

at 50 Hz1.780 V·A

at 60 Hz2.140 V·A

inductive power factor with closing power of the coil0,3

at 50 Hz0,3

at 60 Hz0,3

apparent holding power of magnet coil at AC121 V·A

at 50 Hz121 V·A

at 60 Hz140 V·A

inductive power factor with the holding power of the coil0,22

at 50 Hz0,22

at 60 Hz0,29

arcing time20... 30 ms

Auxiliary circuit

number of NC contacts for auxiliary contacts2

instantaneous contact2

number of NO contacts for auxiliary contacts2

instantaneous contact2

number of CO contacts for auxiliary contacts0

identification number and letter for switching elements22

operational current at AC-12 maximum10 A

at 230 V rated value5,6 A

at 400 V rated value3,6 A

at 500 V rated value2,5 A

at 24 V rated value10 A

at 48 V rated value10 A

at 60 V rated value10 A

at 110 V rated value8 A

at 125 V rated value6 A

at 220 V rated value2 A

at 600 V rated value0,4 A

at 24 V rated value10 A

at 48 V rated value5 A

at 60 V rated value5 A

at 110 V rated value2,4 A

at 125 V rated value2,1 A

at 220 V rated value1,1 A

at 600 V rated value0,21 A

UL/CSA ratings

contact rating of auxiliary contacts according to ULA600 / P600

Short-circuit protection

— with type of coordination 1 required2 x 3NE1330-4D (315 A) parallel (750 V, 12 kA)

— with type of coordination 2 required2 x 3NE1330-4D (315 A) parallel (750 V, 12 kA)

for short-circuit protection of the auxiliary switch requiredgG: 16 A (500 V, 1 kA)

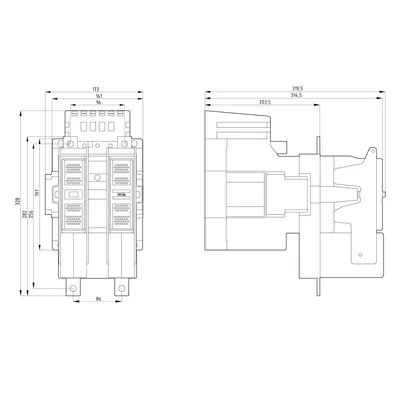

Installation/ mounting/ dimensions

mounting position+/-22,5° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface

fastening method side-by-side mountingVar

fastening methodscrew fixing

height281 mm

width160 mm

depth255 mm

— forwards25 mm

— backwards0 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

— forwards100 mm

— backwards0 mm

— upwards10 mm

— at the side10 mm

— downwards10 mm

— forwards100 mm

— backwards0 mm

— upwards10 mm

— downwards10 mm

— at the side10 mm

Connections/ Terminals

type of electrical connectionscrew terminal

for main current circuitscrew-type terminals

for auxiliary and control circuitscrew-type terminals

— solid or stranded2x (1... 2,5 mm²)

— finely stranded with core end processing2x (0,75... 1,5 mm²)

Safety related data

product function mirror contact according to IEC 60947-4-1Var

Electrical Safety

protection class IP on the front according to IEC 60529IP00; IP20 with box terminal/cover
