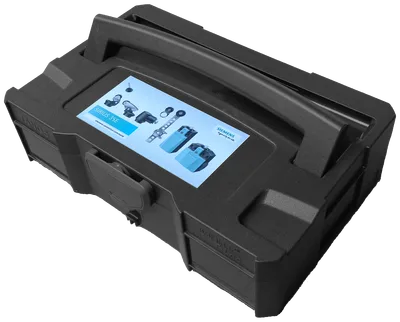

Siemens 3SX5110-0BK
SIRIUS 3SE5 konum anahtar plastic, service box, TANOS box filled ile: 3x temel konum anahtar, genişlik 31 mm, 40 mm, 50 mm: 3SE5232-0CC05, 3SE5132-0CA00, 3SE5242-0CC05, 19 different aktüatör heads, aksesuar: M12 plug 4-pole, 3SY3127, yellow kapak ile LED, 3SE5230-1AA00-1AG0 için 31 mm, dahil SIRIUS 3SE brochure German/English
product brand nameSIRIUS
product designationService box
product type designation3SE5
of the supplied basic switch3SE5232-0CC05
of the supplied switching contacts3SE5000-0CA00
product function positive openingVar
Ürün Hakkında
SIRIUS 3SE5 konum anahtar plastic, service box, TANOS box filled ile: 3x temel konum anahtar, genişlik 31 mm, 40 mm, 50 mm: 3SE5232-0CC05, 3SE5132-0CA00, 3SE5242-0CC05, 19 different aktüatör heads, aksesuar: M12 plug 4-pole, 3SY3127, yellow kapak ile LED, 3SE5230-1AA00-1AG0 için 31 mm, dahil SIRIUS 3SE brochure German/English
Siemens 3SX5110-0BK
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationService box
design of the product3SE5232-0CC05, 3SE5132-0CA00, 3SE5242-0CC05, 3SE5000-0BA00, 3SE5000-0LA00, 3SE5230-1AA00-1AG0, 3SE5000-0AC30, 3SE5000-0AE10, 3SE5000-0AF10, 3SE5000-0AD03, 3SE5000-0AD04, 3SE5000-0AR01, 3SE5000-0AH00, 3SE5000-0AK00, 3SE5000-0AA21, 3SE5000-0AA60, 3SE5000-0AA50, 3SE5000-0AA80, 3SE5000-0AB01, 3SE5000-0AE05, 3SE5000-0AD06, 3SY3127
product type designation3SE5
of the supplied basic switch3SE5232-0CC05
of the supplied switching contacts3SE5000-0CA00
of the supplied empty enclosure with cover3SE5232-0AC05
General technical data
product function positive openingVar
insulation voltage rated value400 V
degree of pollutionclass 3
surge voltage resistance rated value6 kV
protection class IPIP65
according to IEC 60068-2-2730 g / 11 ms
according to IEC 60068-2-60,35 mm/5 g
mechanical service life (operating cycles) typical15.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current10 A
material of the enclosure of the switch headplastic
reference code according to IEC 81346-2B
continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A; for a short-circuit current smaller than 400 A
continuous current of the DIAZED fuse link gG6 A
active principlemechanical
repeat accuracy0,05 mm
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-Yok. 96-45-7
Net Weight1,175 kg
minimum actuating force in directions of actuation20 N
length of the sensor75,7 mm
width of the sensor31 mm
Ambient conditions
during operation-25... +85 °C
during storage-40... +90 °C
explosion protection category for dustyok
Main circuit
design of the switching contactmechanical
operating frequency rated value50... 60 Hz
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
at 24 V rated value6 A
at 120 V rated value6 A
at 240 V rated value6 A
at 400 V rated value4 A
at 24 V rated value3 A
at 125 V rated value0,55 A
at 250 V rated value0,27 A
at 400 V rated value0,12 A
Enclosure
design of the housingblock, narrow
material of the enclosureplastic
coating of the enclosureOther types
design of the housing according to standardVar
Drive Head
design of the actuating elementRounded plunger, plastic plunger
standard-compliant actuator headEN 50047, design B
shape of the switch headrounded
design of the switching functionpositive opening
circuit principlesnap-action contacts
number of switching contacts safety-related1
cable entry type1x (M20 x 1,5)
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectionscrew terminal
solid1x (0,5... 1,5 mm²), 2x (0,5... 0,75 mm²)
finely stranded with core end processing1x (0,5... 1,5 mm²), 2x (0,5... 0,75 mm²)
for AWG cables solid1x (20... 16), 2x (20... 18)
for AWG cables stranded1x (20... 16), 2x (20... 18)
design of the interface for safety-related communicationwithout
Communication/ Protocol
design of the interfacewithout
Ürün bilgileri
EAN4047621090283
Ürün ailesiAccessories and spare parts
Yaşam döngüsü durumuAktif
Gümrük tarife kodu85365080
Teslimat ve lojistik
Menşe ülkeGermany
Teslim süresi10 gün
İade edilebilirEvet
Net ağırlık1,175 Kg
Paket ölçüleri (U x G x Y)265 x 172 x 78 MM
Standart paket adedi1 adet
Minimum sipariş adedi1
Tehlikeli maddeHayır
İhracat kontrolüAL : N / ECCN : N
Çevre ve uyumluluk
RoHS uyumuSince: 01-07-06
WEEE kategorisi5
REACH bilgisiImidazolidine-2-thione (2-imidazoline-2-thiol) CAS-No. 96-45-7 > 0,1 % (w / w)
SCIP numarası63cae1bd-8b8f-404a-8a57-421da667198a
Siemens kataloğu
Ürün grubu5317
Katalog kimliğiCC-IC10
Grup koduR711
Ürün sınıfıStraightforward, can be reused over the short term
Aksesuarlar 3
Siemens 3SX5110-0BK motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SE5000-0CA00 | Bileşen | |
| 3SE5232-0CC05 | Bileşen | |
| 3SE5232-0AC05 | Bileşen |
