Siemens 3SU1853-3NB00-1AD1

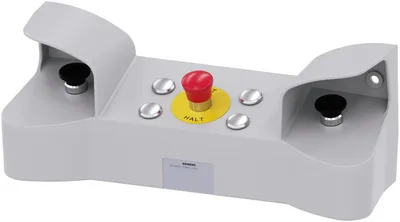

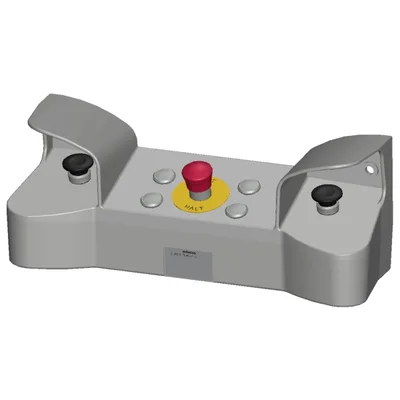

two-hand çalışma console için command devices, 22 mm, round, muhafaza material metal, muhafaza top parça gray, 3 command nokta metal, 4 ek holes için 22 mm command devices 2 mushroom pushbuttons black 40 mm, 2x 1 NO+1 NC, vidalı klemens, 1x acil durdurma red, 40 mm, 2 NC, vidalı klemens, ön montaj, 4x sealing plug metal, ile kablo cut-outs için metric kablo glands
product brand nameSIRIUS ACT
product designationTwo-hand operation console
product type designation3SU1
of supplied empty enclosure3SU1853-3AA00-0AD1
of supplied accessory3SU1950-0FA80-0AA0
material of the enclosuremetal
Ürün Hakkında
two-hand çalışma console için command devices, 22 mm, round, muhafaza material metal, muhafaza top parça gray, 3 command nokta metal, 4 ek holes için 22 mm command devices 2 mushroom pushbuttons black 40 mm, 2x 1 NO+1 NC, vidalı klemens, 1x acil durdurma red, 40 mm, 2 NC, vidalı klemens, ön montaj, 4x sealing plug metal, ile kablo cut-outs için metric kablo glands
Siemens 3SU1853-3NB00-1AD1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationTwo-hand operation console
product type designation3SU1
of supplied contact moduleR2 = 3SU1400-1AA10-1BA0 / L2 = 3SU1400-1AA10-1BA0 / M1 = 3SU1400-1AA10-1CA0 / R1 = 3SU1400-1AA10-1CA0 / L1 = 3SU1400-1AA10-1CA0 / M2 = 3SU1400-1AA10-1CA0
of supplied contact module at the command point A 13SU1400-1AA10-1CA0
of supplied contact module at the command point A 33SU1400-1AA10-1BA0
of supplied contact module at the command point B 13SU1400-1AA10-1CA0
of supplied contact module at the command point B 33SU1400-1AA10-1CA0
of supplied contact module at the command point C 13SU1400-1AA10-1CA0
of supplied contact module at the command point C 33SU1400-1AA10-1BA0
of the supplied holder at the command point A3SU1550-0AA10-0AA0
of the supplied holder at the command point B3SU1550-0AA10-0AA0
of the supplied holder at the command point C3SU1550-0AA10-0AA0
of the supplied actuator at the command point A3SU1050-1BD10-0AA0
of the supplied actuator at the command point B3SU1050-1HB20-0AA0
of the supplied actuator at the command point C3SU1050-1BD10-0AA0
of supplied empty enclosure3SU1853-3AA00-0AD1
of supplied accessory3SU1950-0FA80-0AA0
of the supplied accessories at the command point B3SU1900-0BB31-0AT0
Enclosure
design of the housingTwo-hand operating console with standard components
material of the enclosuremetal
number of command points3
color of the enclosure top partgrey
as a kitYok
pre-wired on strip terminalYok
fastening method of the enclosureHorizontal
Actuator
design of the actuating elementA = mushroom pushbutton / B = EMERGENCY STOP mushroom pushbutton / C = mushroom pushbutton
principle of operation of the actuating elementA = momentary contact / B = latching / C = momentary contact
lockoutYok
staggered switchingYok
color of the actuating elementA = black / B = red / C = black
material of the actuating elementmetal
shape of the actuating elementround
number of contact modules6
type of unlocking deviceA = yok / B = rotate to unlock / C = yok
Front ring
product component front ringVar
material of the front ringmetal
color of the front ringsilver
Holder
material of the holderMetal
General technical data
positive openingVar
EMERGENCY OFF functionVar
EMERGENCY STOP functionVar
product component stand/pedestalYok
protection class IPIP66
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
vibration resistance according to IEC 60068-2-610... 500 Hz: 5 g
reference code according to IEC 81346-2S
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance nameLead CAS-Yok. 7439-92-1
Net Weight4,927 kg
Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts4
number of NO contacts for auxiliary contacts2
Connections/ Terminals
type of electrical connection on enclosureCable routing the rear 2 x M25
Safety related data
product function suitable for safety functionVar
test wear-related service life necessaryVar
with low demand rate according to SN 3192020 %
with high demand rate according to SN 3192020 %
with high demand rate per NC contact according to SN 3192020 %
B10 value with high demand rate according to SN 31920100.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT
ISO 13849
device type according to ISO 13849-13
IEC 61508
safety device type according to IEC 61508-2Type A
T1 value for proof test interval or service life according to IEC 6150820 a
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)

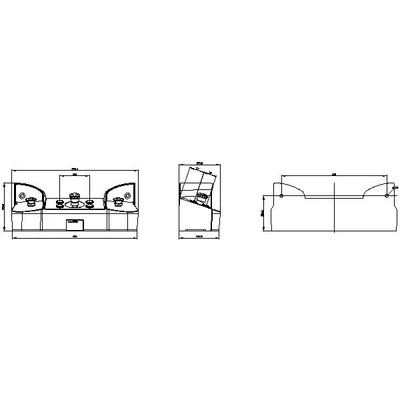

Installation/ mounting/ dimensions
fastening method of modules and accessoriesFront plate mounting
height185,6 mm
width492,4 mm
depth159,5 mm
Accessories
number of backing plates1
marking of backing plateNOT-HALT
color of backing plateYellow
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,625 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.267 kg
global warming potential [CO2 eq] / total0,593 kg
Aksesuarlar 4
Siemens 3SU1853-3NB00-1AD1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0AF81-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AF16-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0JQ10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0HG10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
