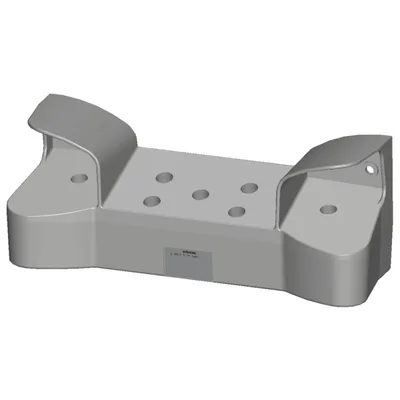

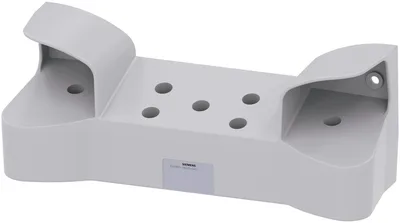

Siemens 3SU1853-3AA00-0AD1
Two-hand çalışma console için command devices, 22 mm, round, muhafaza material metal, muhafaza top parça gray, 3 kontrol nokta metal, 4 ek drilled holes, için 22 mm command devices, olmadan equipment, ile kablo cut-outs, için metric vidalı connections
product brand nameSIRIUS ACT
product designationTwo-hand operation console
product type designation3SU1
material of the enclosuremetal
number of command points7
color of the enclosure top partgrey
Ürün Hakkında
Two-hand çalışma console için command devices, 22 mm, round, muhafaza material metal, muhafaza top parça gray, 3 kontrol nokta metal, 4 ek drilled holes, için 22 mm command devices, olmadan equipment, ile kablo cut-outs, için metric vidalı connections
Siemens 3SU1853-3AA00-0AD1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationTwo-hand operation console
product type designation3SU1
Enclosure
design of the housingTwo-hand operating console without standard equipment
material of the enclosuremetal
number of command points7
color of the enclosure top partgrey
as a kitYok
pre-wired on strip terminalYok
fastening method of the enclosureHorizontal
Actuator
design of the actuating elementUnequipped
principle of operation of the actuating elementwithout
lockoutYok
staggered switchingYok
number of contact modules0
General technical data
positive openingYok
EMERGENCY OFF functionYok
EMERGENCY STOP functionYok
product component stand/pedestalYok
protection class IPIP66
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
vibration resistance according to IEC 60068-2-610... 500 Hz: 5 g
reference code according to IEC 81346-2U
Substance Prohibitance (day/month/year)10/01/2014
Net Weight4,4 kg
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Connections/ Terminals
type of electrical connection on enclosureCable routing the rear 2 x M25
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)

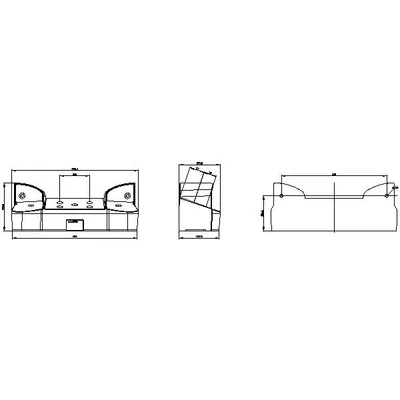

Installation/ mounting/ dimensions
height185,6 mm
width492,4 mm
depth159,5 mm
Accessories
number of backing plates0
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,625 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.267 kg
global warming potential [CO2 eq] / total0,593 kg
