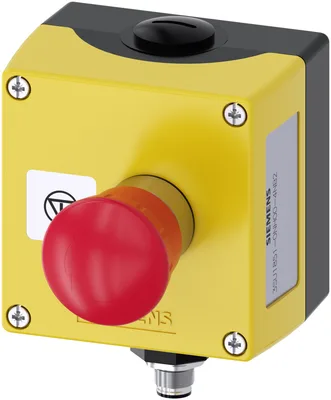

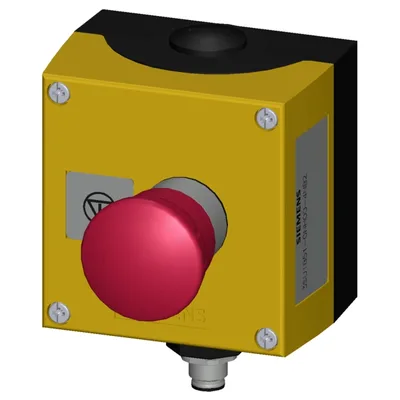

Siemens 3SU1851-0NH00-4NB2
muhafaza için command devices, 22 mm, round, muhafaza material metal, muhafaza top parça yellow, 1 kontrol nokta metal, A=acil durdurma mushroom pushbutton red, 40 mm, rotate-to-unlatch, 2 NC, yaylı klemens, floor montaj, silver etiket, black font, ile graphic symbol: acil durdurma, M12 konnektör (5-pin) bottom, insulated reserve conductors etiket glued in
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
of supplied empty enclosure3SU1851-0AA00-0AB2
design of the housingwith recess for label
shape of the enclosure frontSquare
Ürün Hakkında
muhafaza için command devices, 22 mm, round, muhafaza material metal, muhafaza top parça yellow, 1 kontrol nokta metal, A=acil durdurma mushroom pushbutton red, 40 mm, rotate-to-unlatch, 2 NC, yaylı klemens, floor montaj, silver etiket, black font, ile graphic symbol: acil durdurma, M12 konnektör (5-pin) bottom, insulated reserve conductors etiket glued in
Siemens 3SU1851-0NH00-4NB2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
equipment of commanding and signaling deviceA = EMERGENCY STOP mushroom pushbutton, 40 mm, with positive latching acc. to ISO 13850 ve rotate-to-unlatch mechanism
of supplied contact module at the command point A 13SU1400-1AA10-3CA0
of supplied contact module at the command point A 23SU1400-1AA10-3CA0
of the supplied holder at the command point A3SU1550-0AA10-0AA0
of the supplied actuator at the command point A3SU1050-1HB20-0AA0
of supplied empty enclosure3SU1851-0AA00-0AB2
Enclosure
design of the housingwith recess for label
shape of the enclosure frontSquare
material of the enclosuremetal
number of command points1
EMERGENCY STOP deviceVar
protective collarYok
color of the enclosure top partgrey
as a kitYok
pre-wired on strip terminalVar
fastening method of the enclosureVertical
Actuator
design of the actuating elementEMERGENCY STOP mushroom pushbutton
suitability for use EMERGENCY OFF switchVar
product feature lockoutYok
product extension optional light sourceYok
color of the actuating elementred
material of the actuating elementplastic
shape of the actuating elementround
number of contact modules2
type of unlocking deviceA = rotate-to-unlatch mechanism
Front ring
product component front ringYok
Holder
material of the holderPlastic
Display
number of LED modules0
General technical data
positive openingVar
EMERGENCY OFF functionVar
EMERGENCY STOP functionVar
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
according to IEC 60068-2-610... 500 Hz: 5 g
reference code according to IEC 81346-2S
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameLead CAS-Yok. 7439-92-1
Net Weight618,38 g
— at 50 Hz rated value5... 500 V
— at 60 Hz rated value5... 500 V
at DC rated value5... 500 V
cable entry typeM12 plug, 5-pole
Communication/ Protocol
design of the interface for communicationwithout
Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts0
Connections/ Terminals
type of electrical connection of modules and accessoriesSpring-type terminal
type of electrical connection on enclosureM12 connector, 5-pole
tightening torque of the screws in the bracket1... 1,2 N·m
tightening torque of fixing screws in the enclosure cover1,5... 1,7 N·m
Safety related data
product function suitable for safety functionVar
test wear-related service life necessaryVar
with low demand rate according to SN 3192020 %
with high demand rate per NC contact according to SN 3192020 %
B10 value with high demand rate according to SN 31920100.000
failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT
ISO 13849
device type according to ISO 13849-13
IEC 61508
safety device type according to IEC 61508-2Type A
T1 value for proof test interval or service life according to IEC 6150820 a
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
fastening method of modules and accessoriesFloor mounting
height89,4 mm
width85 mm
depth109 mm
shape of the installation openinground
Accessories
number of labels1
color of the labelA = black
number of inscription plates0
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,625 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.267 kg
global warming potential [CO2 eq] / total0,593 kg
Ürün bilgileri
EAN4047621048345
UPC804766530135
Ürün ailesiOrdering Data Overview
Yaşam döngüsü durumuAktif
Gümrük tarife kodu85365080
Teslimat ve lojistik
Menşe ülkeGermany
Teslim süresi3 gün
İade edilebilirEvet
Net ağırlık0,61838 Kg
Paket ölçüleri (U x G x Y)95 x 131 x 129 MM
Standart paket adedi1 adet
Minimum sipariş adedi1
Tehlikeli maddeHayır
İhracat kontrolüAL : N / ECCN : N
Çevre ve uyumluluk
RoHS uyumuSince: 01-07-06
WEEE kategorisi5
REACH bilgisiLead CAS-No. 7439-92-1 > 0,1 % (w / w)
SCIP numarası98c64652-576e-46a7-b513-a3ca66ef6364
Siemens kataloğu
Ürün grubu5454
Katalog kimliğiCC-IC10
Grup koduR711
Ürün sınıfıStraightforward, can be reused over the short term
Aksesuarlar 5
Siemens 3SU1851-0NH00-4NB2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1400-1AA10-3CA0 | Bileşen · Commanding and signaling devices | |
| 3SU1050-1HB20-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1851-0AA00-0AB2 | Bileşen · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1900-0HG10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
