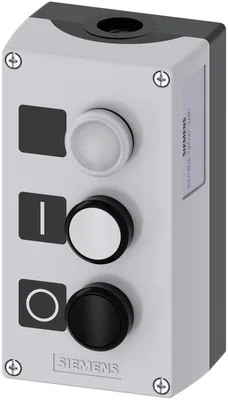

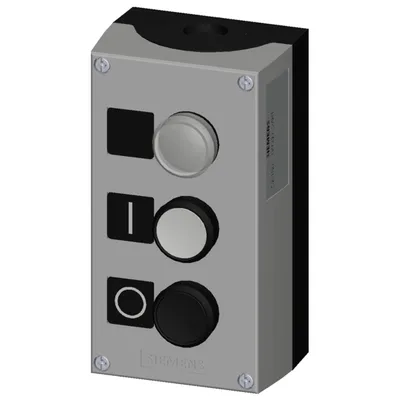

Siemens 3SU1803-0AC00-2AB1
muhafaza için command devices, 22 mm, round, muhafaza material plastic, muhafaza top parça gray, 3 command nokta plastic, C=indicator light clear, etiket, LED 24 V, vidalı klemens, B=pushbutton white, etiket: I, 1 NO, vidalı klemens, A=pushbutton black,etiket: O, 1 NC, vidalı klemens, base montaj, 1xM20 each on top ve bottom, labels enclosed
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
of supplied empty enclosure3SU1803-0AA00-0AB1
design of the housingwith recess for label
shape of the enclosure frontrectangular
Ürün Hakkında
muhafaza için command devices, 22 mm, round, muhafaza material plastic, muhafaza top parça gray, 3 command nokta plastic, C=indicator light clear, etiket, LED 24 V, vidalı klemens, B=pushbutton white, etiket: I, 1 NO, vidalı klemens, A=pushbutton black,etiket: O, 1 NC, vidalı klemens, base montaj, 1xM20 each on top ve bottom, labels enclosed
Siemens 3SU1803-0AC00-2AB1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
equipment of commanding and signaling deviceA = Pushbutton / B = Pushbutton / C = Indicator light
of supplied contact module at the command point A 13SU1400-2AA10-1CA0
of supplied contact module at the command point B 23SU1400-2AA10-1BA0
of supplied LED module at the command point C3SU1401-2BB60-1AA0
of the supplied holder at the command point A3SU1500-0AA10-0AA0
of the supplied holder at the command point B3SU1500-0AA10-0AA0
of the supplied holder at the command point C3SU1500-0AA10-0AA0
of the supplied actuator at the command point A3SU1000-0AB10-0AA0
of the supplied actuator at the command point B3SU1000-0AB60-0AA0
of the supplied actuator at the command point C3SU1001-6AA60-0AA0
of supplied empty enclosure3SU1803-0AA00-0AB1
of the supplied accessories at the command point A3SU1900-0AF16-0QA0
of the supplied accessories at the command point B3SU1900-0AF16-0QB0
of the supplied accessories at the command point C3SU1900-0AF16-0AA0
Enclosure
design of the housingwith recess for label
shape of the enclosure frontrectangular
material of the enclosureplastic
number of command points3
EMERGENCY STOP deviceYok
protective collarYok
color of the enclosure top partgrey
as a kitYok
pre-wired on strip terminalYok
fastening method of the enclosureVertical
Actuator
design of the actuating elementPushbutton / pushbutton / indicator light
suitability for use EMERGENCY OFF switchYok
product feature lockoutYok
product extension optional light sourceVar
color of the actuating elementA = black / B = white / C = clear
material of the actuating elementplastic
shape of the actuating elementround
number of contact modules2
type of unlocking deviceA = yok / B = yok / C = yok
Front ring
product component front ringVar
design of the front ringStandard
material of the front ringplastic
color of the front ringblack
Holder
material of the holderPlastic
Display
number of LED modules1
General technical data
positive openingVar
EMERGENCY OFF functionYok
EMERGENCY STOP functionYok
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12K, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
reference code according to IEC 81346-2S
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight495,38 g
— at 50 Hz rated value24 V
— at 60 Hz rated value24 V
at DC rated value24 V
Communication/ Protocol
design of the interface for communicationwithout
Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
Connections/ Terminals
type of electrical connection of modules and accessoriesScrew-type terminal
type of electrical connection on enclosureCable routing above ve below, both 1 x M20
tightening torque of the screws in the bracket1... 1,2 N·m
tightening torque of fixing screws in the enclosure cover1,5... 1,7 N·m
tightening torque with screw-type terminals0,8... 0,9 N·m
Lamp
light intensity900... 1.400 mcd
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)

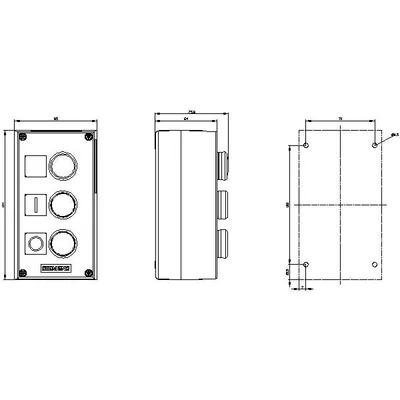

Installation/ mounting/ dimensions
fastening method of modules and accessoriesFloor mounting
height154 mm
width85 mm
depth75,8 mm
shape of the installation openinground
Accessories
number of labels3
marking of the name plate for command devicesA = O / B = I / C = without inscription
color of the labelA = black / B = black / C = black
number of inscription plates0
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 13
Siemens 3SU1803-0AC00-2AB1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0JQ10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-2AA10-1BA0 | Bileşen · Commanding and signaling devices | |
| 3SU1400-2AA10-1CA0 | Bileşen · Commanding and signaling devices | |
| 3SU1500-0AA10-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1000-0AB10-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1000-0AB60-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1001-6AA60-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1401-2BB60-1AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1803-0AA00-0AB1 | Bileşen · Commanding and signaling devices | |
| 3SU1900-0AF16-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1900-0AF16-0QA0 | Bileşen · Commanding and signaling devices | |
| 3SU1900-0AF16-0QB0 | Bileşen · Commanding and signaling devices | |
| 3SU1900-0HG10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
