Siemens 3SU1802-0NB00-2AB2 için nasıl fiyat teklifi alabilirim?

Siemens 3SU1802-0NB00-2AB2 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B02EBCA5 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3SU1802-0NB00-2AB2 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3SU1802-0NB00-2AB2 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3SU1802-0NB00-2AB2 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

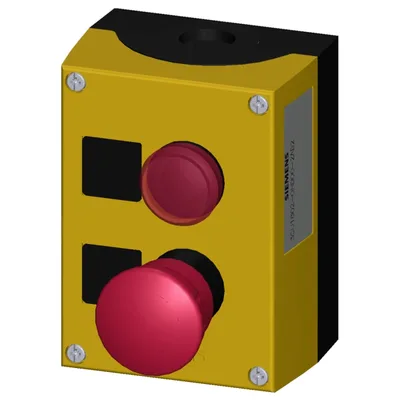

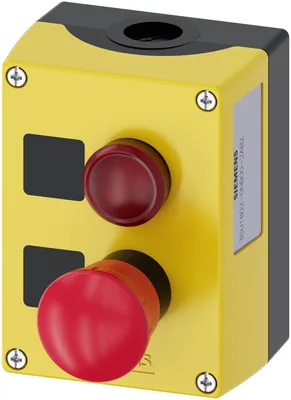

Siemens 3SU1802-0NB00-2AB2

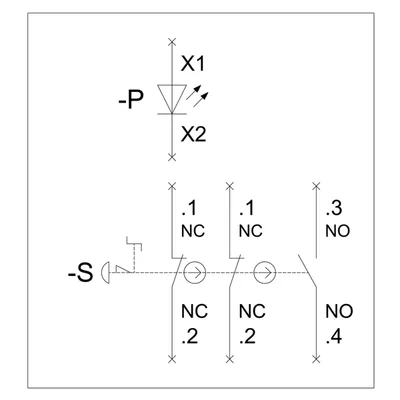

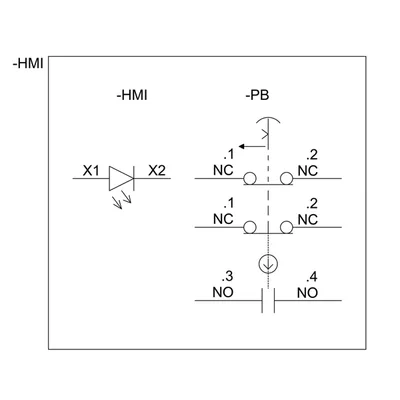

enclosure for command devices, 22 mm, round, enclosure material plastic, enclosure top part yellow, 2 command points plastic, B=indicator light red, LED 24 V, screw terminal, LED 24 V, screw terminal, label without inscription, A=EMERGENCY STOP 40 mm rotate-to-unlatch, label without inscription, 1 NO, 1 NC, 1 NC, screw terminal, base mounting, 1x M20 each on top and bottom, labels enclosed

SiemensMFR # 3SU1802-0NB00-2AB2SKU # CEY-8EF3B02EBCA5

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

of supplied empty enclosure3SU1802-0AA00-0AB2

design of the housingwith recess for label

shape of the enclosure frontrectangular

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3SU1802-0NB00-2AB2

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

equipment of commanding and signaling deviceA = EMERGENCY-STOP mushroom pushbutton, 40 mm, with positive latching according to ISO 13850 ve rotate-to-unlatch mechanism / B = indicator light 24 V AC/DC

of supplied contact module at the command point A 13SU1400-2AA10-1CA0

of supplied contact module at the command point A 23SU1400-2AA10-1BA0

of supplied contact module at the command point A 33SU1400-2AA10-1CA

of supplied LED module at the command point B3SU1401-2BB20-1AA0

of the supplied holder at the command point A3SU1500-0AA10-0AA0

of the supplied holder at the command point B3SU1500-0AA10-0AA0

of the supplied actuator at the command point A3SU1000-1HB20-0AA0

of the supplied actuator at the command point B3SU1001-6AA20-0AA0

of supplied empty enclosure3SU1802-0AA00-0AB2

of the supplied accessories at the command point A3SU1900-0AF16-0AA0

of the supplied accessories at the command point B3SU1900-0AF16-0AA0

Enclosure

design of the housingwith recess for label

shape of the enclosure frontrectangular

material of the enclosureplastic

number of command points2

EMERGENCY STOP deviceVar

protective collarYok

color of the enclosure top partyellow

as a kitYok

pre-wired on strip terminalYok

fastening method of the enclosureVertical

Actuator

design of the actuating elementIndicator light / EMERGENCY STOP mushroom pushbutton

suitability for use EMERGENCY OFF switchVar

product feature lockoutYok

product extension optional light sourceVar

color of the actuating elementA = red / B = red

material of the actuating elementplastic

shape of the actuating elementround

number of contact modules3

type of unlocking deviceA = Rotate to unlock / B = yok

Front ring

product component front ringVar

design of the front ringStandard

material of the front ringplastic

color of the front ringblack

Holder

material of the holderPlastic

Display

number of LED modules1

General technical data

positive openingVar

EMERGENCY OFF functionVar

EMERGENCY STOP functionVar

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12K, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

reference code according to IEC 81346-2S

continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A

continuous current of the DIAZED fuse link gG10 A

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1

Net Weight383,88 g

— at 50 Hz rated value24 V

— at 60 Hz rated value24 V

at DC rated value24 V

Communication/ Protocol

design of the interface for communicationwithout

Auxiliary circuit

design of the contact of auxiliary contactsSilver alloy

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts1

Connections/ Terminals

type of electrical connection of modules and accessoriesScrew-type terminal

type of electrical connection on enclosureCable routing above ve below, both 1 x M20

tightening torque of the screws in the bracket1... 1,2 N·m

tightening torque of fixing screws in the enclosure cover1,5... 1,7 N·m

tightening torque with screw-type terminals0,8... 0,9 N·m

Lamp

light intensity450... 1.120 mcd

Safety related data

product function suitable for safety functionVar

test wear-related service life necessaryVar

with low demand rate according to SN 3192020 %

with high demand rate per NC contact according to SN 3192020 %

B10 value with high demand rate according to SN 31920100.000

failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2Type A

T1 value for proof test interval or service life according to IEC 6150820 a

Ambient conditions

during operation-25... +70 °C

during storage-40... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFloor mounting

height114 mm

width85 mm

depth109 mm

shape of the installation openinground

Accessories

number of labels2

marking of the name plate for command devicesA = without inscription / B = without inscription

color of the labelA = black / B = black

number of inscription plates0

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0,566 kg

global warming potential [CO2 eq] / during operation0,235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0,787 kg
