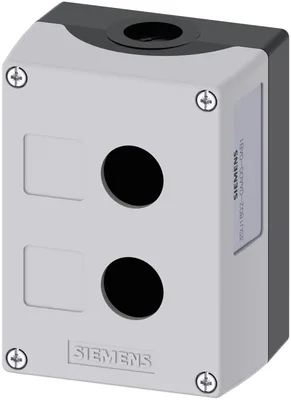

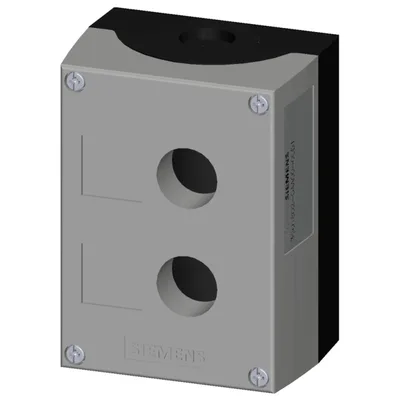

Siemens 3SU1802-0AA00-0AB1
Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 2 control points plastic, Recess for labels, without equipment
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
design of the housingwith recess for label
shape of the enclosure frontrectangular
material of the enclosureplastic
Ürün Hakkında
Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 2 control points plastic, Recess for labels, without equipment
Siemens 3SU1802-0AA00-0AB1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
Enclosure
design of the housingwith recess for label
shape of the enclosure frontrectangular
material of the enclosureplastic
number of command points2
product component protective collarYok
color of the enclosure top partgrey
fastening method of the enclosureVertical / yatay
General technical data
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance for railway applications according to EN 61373Category 1, Class B
vibration resistance for railway applications according to EN 61373Category 1, Class B
Substance Prohibitance (day/month/year)10/01/2014
Net Weight259,38 g
cable entry typeMetric cable glands 1 x M20 her biri on the top, bottom ve rear, 1 x M16 on the side
Connections/ Terminals
type of electrical connection on enclosureCable routing 1 x M20 her biri on the top, bottom ve rear, 1 x M16 on the side
tightening torque of fixing screws in the enclosure cover1,5... 1,7 N·m
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)

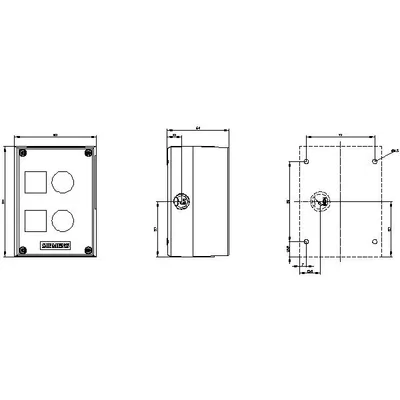

Installation/ mounting/ dimensions
fastening method of modules and accessoriesFloor mounting
height114 mm
width85 mm
depth64 mm
mounting diameter22,3 mm
positive tolerance of installation diameter0,4 mm
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 4
Siemens 3SU1802-0AA00-0AB1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0AF81-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0JQ10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AF16-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0HG10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
