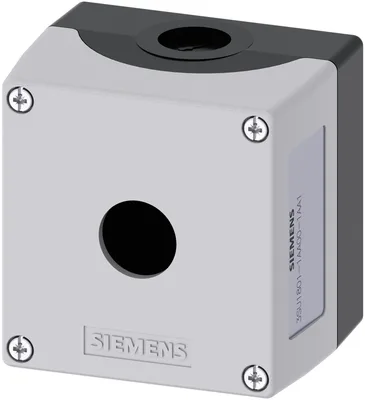

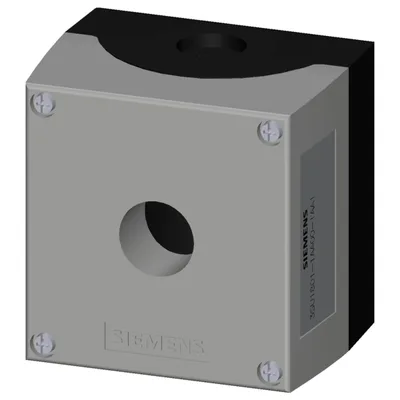

Siemens 3SU1801-1AA00-1AA1
enclosure for 4-position knob, coordinate, ID keyswitch, 22 mm, round, enclosure material plastic, enclosure top part gray, 1 command point plastic, without equipment, only for front plate mounting
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
design of the housingCommand point in center
shape of the enclosure frontSquare
material of the enclosureplastic
Ürün Hakkında
enclosure for 4-position knob, coordinate, ID keyswitch, 22 mm, round, enclosure material plastic, enclosure top part gray, 1 command point plastic, without equipment, only for front plate mounting
Siemens 3SU1801-1AA00-1AA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
Enclosure
design of the housingCommand point in center
shape of the enclosure frontSquare
material of the enclosureplastic
number of command points1
product component protective collarYok
color of the enclosure top partgrey
fastening method of the enclosureVertical / yatay
General technical data
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
shock resistance for railway applications according to EN 61373Category 1, Class B
vibration resistance for railway applications according to EN 61373Category 1, Class B
Substance Prohibitance (day/month/year)10/01/2014
Net Weight210,38 g
cable entry typeWithout
Connections/ Terminals
type of electrical connection on enclosureCable routing above ve below, both 1 x M20
tightening torque of fixing screws in the enclosure cover1,5... 1,7 N·m
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)

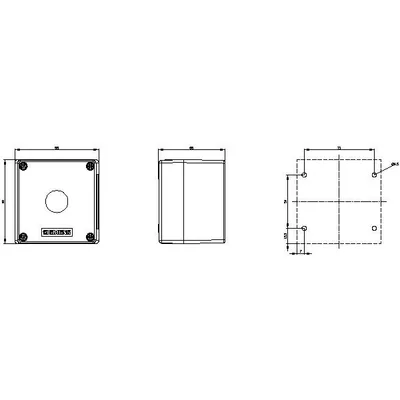

Installation/ mounting/ dimensions
fastening method of modules and accessoriesFront plate mounting
height85 mm
width85 mm
depth68 mm
mounting diameter22,3 mm
positive tolerance of installation diameter0,4 mm
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 2
Siemens 3SU1801-1AA00-1AA1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0JQ10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0HG10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
