Siemens 3SU1801-0AR00-2AB1

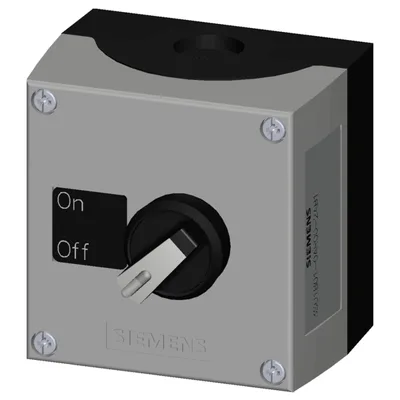

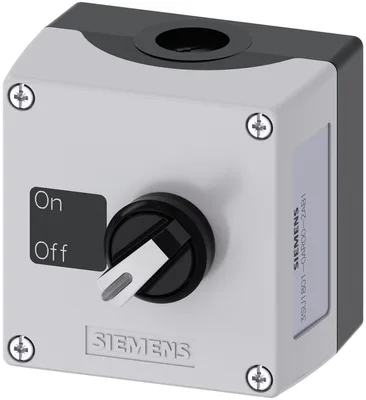

muhafaza için command devices 22 mm, round, muhafaza material plastic, muhafaza top parça gray, 1 kontrol nokta, A= seçici anahtar, black, plastic, 2 anahtar positions, latching, etiket: On Off, 1 NO, 1 NO, vidalı klemens, floor montaj, 1xM20 each on top ve bottom etiket glued in
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
of supplied empty enclosure3SU1801-0AZ00 K0Y
design of the housingwith recess for label
shape of the enclosure frontSquare
Ürün Hakkında
muhafaza için command devices 22 mm, round, muhafaza material plastic, muhafaza top parça gray, 1 kontrol nokta, A= seçici anahtar, black, plastic, 2 anahtar positions, latching, etiket: On Off, 1 NO, 1 NO, vidalı klemens, floor montaj, 1xM20 each on top ve bottom etiket glued in
Siemens 3SU1801-0AR00-2AB1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationEnclosures
product type designation3SU1
equipment of commanding and signaling deviceA = Toggle switch
of supplied contact module at the command point A 13SU1400-2AA10-1BA0
of supplied contact module at the command point A 23SU1400-2AA10-1BA0
of the supplied holder at the command point A3SU1500-0AA10-0AA0
of the supplied actuator at the command point A3SU1002-2BF60-0AA0
of supplied empty enclosure3SU1801-0AZ00 K0Y
of the supplied accessories at the command point A3SU1900-0AF16-0AZ0
Enclosure
design of the housingwith recess for label
shape of the enclosure frontSquare
material of the enclosureplastic
number of command points1
EMERGENCY STOP deviceYok
protective collarYok
color of the enclosure top partgrey
as a kitYok
pre-wired on strip terminalYok
fastening method of the enclosureVertical
Actuator
design of the actuating elementtoggle switch
suitability for use EMERGENCY OFF switchYok
product feature lockoutYok
product extension optional light sourceVar
color of the actuating elementwhite
material of the actuating elementplastic
shape of the actuating elementround
number of contact modules2
type of unlocking deviceA = without
Front ring
product component front ringVar
design of the front ringStandard
material of the front ringplastic
color of the front ringblack
Holder
material of the holderPlastic
Display
number of LED modules0
General technical data
positive openingYok
EMERGENCY OFF functionYok
EMERGENCY STOP functionYok
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12K, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
reference code according to IEC 81346-2S
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance name2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) CAS-Yok. 3147-75-9
Net Weight263,38 g
— at 50 Hz rated value5... 500 V
— at 60 Hz rated value5... 500 V
at DC rated value5... 500 V
Communication/ Protocol
design of the interface for communicationwithout
Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts2
Connections/ Terminals
type of electrical connection of modules and accessoriesScrew-type terminal
type of electrical connection on enclosureCable routing above ve below, both 1 x M20
tightening torque of the screws in the bracket1... 1,2 N·m
tightening torque of fixing screws in the enclosure cover1,5... 1,7 N·m
tightening torque with screw-type terminals0,8... 0,9 N·m
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
fastening method of modules and accessoriesFloor mounting
height85 mm
width85 mm
depth75 mm
shape of the installation openinground
Accessories
number of labels1
color of the labelA = black
number of inscription plates1
number of backing plates0
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Ürün bilgileri
EAN4047621080291
UPC195125063686
Ürün ailesiOrdering Data Overview
Yaşam döngüsü durumuAktif
Gümrük tarife kodu85365080
Teslimat ve lojistik
Menşe ülkeGermany
Teslim süresi5 gün
İade edilebilirEvet
Net ağırlık0,26338 Kg
Paket ölçüleri (U x G x Y)131 x 93 x 101 MM
Standart paket adedi1 adet
Minimum sipariş adedi1
Tehlikeli maddeHayır
İhracat kontrolüAL : N / ECCN : N
Çevre ve uyumluluk
RoHS uyumuSince: 01-10-14
WEEE kategorisi5
REACH bilgisi2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) CAS-No. 3147-75-9 > 0,1 % (w / w)
Siemens kataloğu
Ürün grubu5452
Katalog kimliğiCC-IC10
Grup koduR711
Ürün sınıfıStraightforward, can be reused over the short term
Aksesuarlar 6
Siemens 3SU1801-0AR00-2AB1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0JQ10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-2AA10-1BA0 | Bileşen · Commanding and signaling devices | |
| 3SU1500-0AA10-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1002-2BF60-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1801-0AZ00 | Bileşen | |
| 3SU1900-0HG10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
