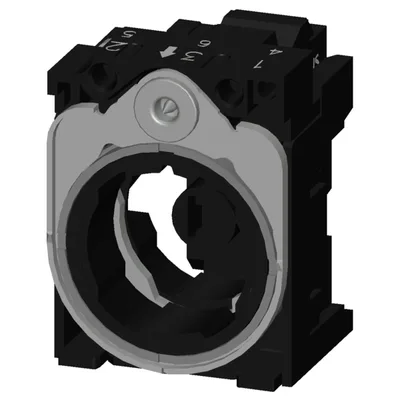

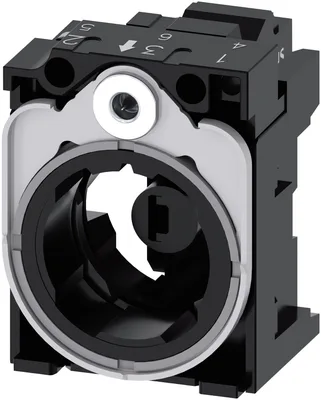

Siemens 3SU1551-1AB20-3AA0
holder, üniversal, 3-fold, plastic/metal, LED modül, red, 24 V AC/DC, yaylı klemens
product brand nameSIRIUS ACT
product designationHolders
design of the productholder, universal for plastic/metal
product type designation3SU1
of supplied LED module3SU1401-1BB20-3AA0
of the supplied holder3SU1550-0AA10-0AA0
Ürün Hakkında
holder, üniversal, 3-fold, plastic/metal, LED modül, red, 24 V AC/DC, yaylı klemens
Siemens 3SU1551-1AB20-3AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationHolders
design of the productholder, universal for plastic/metal
product type designation3SU1
of supplied LED module3SU1401-1BB20-3AA0
of the supplied holder3SU1550-0AA10-0AA0
Actuator
design of the actuating element3-way with module
number of modules attachable6
number of contact modules0
Holder
material of the holderPlastic
Display
number of LED modules1
General technical data
product function positive openingYok
diodeVar
lamp transformerYok
light sourceVar
series resistorYok
insulation voltage rated value500 V
degree of pollution3
surge voltage resistance rated value4 kV
protection class IP of the terminalIP20
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
thermal current10 A
reference code according to IEC 81346-2U
continuous current of the C characteristic MCB10 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5
Net Weight26 g
— at 50 Hz rated value24 V
— at 60 Hz rated value24 V
at DC rated value24 V
Power Electronics
contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
Control circuit/ Control
inrush current of LED module maximum2 A
Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
operational current at AC-15 at 230 V rated value6 A
Connections/ Terminals
of modules and accessoriesSpring-type terminal
solid without core end processing2x (0,25... 1,5 mm²)
finely stranded with core end processing2x (0,25... 0,75 mm²)
finely stranded without core end processing2x (0,25... 1,5 mm²)
for AWG cables2x (24... 16)
tightening torque of the screws in the bracket1... 1,2 N·m
for grounding0,8... 1 N·m
Lamp
type of light sourceLED
color of the light sourcered
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted)

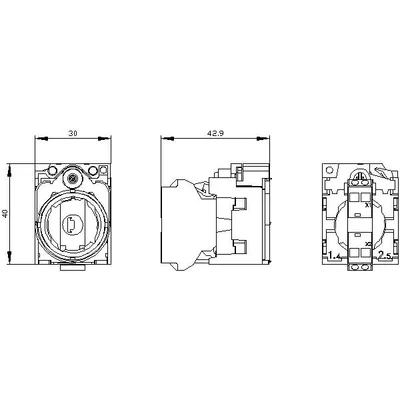

Installation/ mounting/ dimensions
fastening methodfront plate mounting
of modules and accessoriesFront plate mounting
height40 mm
width30 mm
shape of the installation openinground
mounting diameter22,5 mm
installation width30 mm
installation depth49,8 mm
thickness of the front plate usable1... 6 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,593 kg
global warming potential [CO2 eq] during manufacturing0,625 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.267 kg
Siemens eco profile (SEP)Siemens EcoTech
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,625 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.267 kg
global warming potential [CO2 eq] / total0,593 kg
Ürün bilgileri
EAN4047621071923
UPC195125101685
Ürün ailesiHolders
Yaşam döngüsü durumuAktif
Gümrük tarife kodu85318070
Teslimat ve lojistik
Menşe ülkeCzech Republic
Teslim süresi3 gün
İade edilebilirEvet
Net ağırlık0,026 Kg
Paket ölçüleri (U x G x Y)50 x 20 x 30 MM
Standart paket adedi1 adet
Minimum sipariş adedi1
Tehlikeli maddeHayır
İhracat kontrolüAL : N / ECCN : N
Çevre ve uyumluluk
RoHS uyumuSince: 01-10-14
WEEE kategorisi5
REACH bilgisiLead monoxide (lead oxide) CAS-No. 1317-36-8 > 0,1 % (w / w)
SCIP numarasıc8d92ec7-40e1-4b3d-9764-b8f49ec1d344
Siemens kataloğu
Ürün grubu5452
Katalog kimliğiCC-IC10
Grup koduR711
Ürün sınıfıStraightforward, can be reused over the short term
Aksesuarlar 4
Siemens 3SU1551-1AB20-3AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1950-0KK80-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1401-1BG20-3AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1401-1BB20-3AA0 | Bileşen · Commanding and signaling devices |
