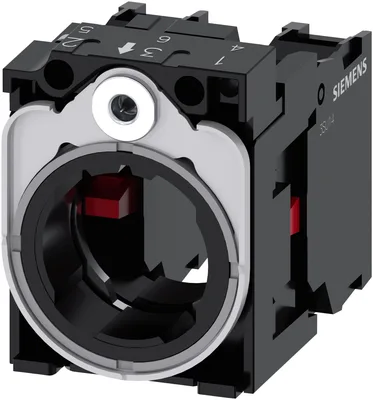

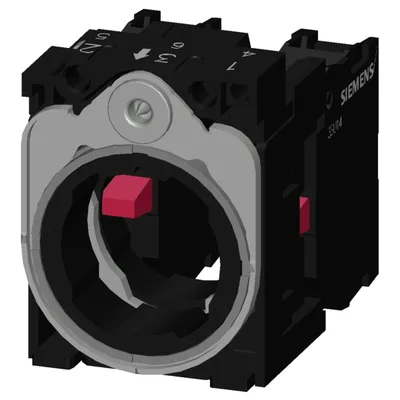

Siemens 3SU1550-1AA10-1PA0
holder, üniversal, 3-fold, plastic/metal, 1 NC, 1 NC, vidalı klemens
product brand nameSIRIUS ACT
product designationHolders
design of the productholder, universal for plastic/metal
product type designation3SU1
of supplied contact module3SU1400-1AA10-1CA0, 3SU1400-1AA10-1CA0
of supplied contact module at position 13SU1400-1AA10-1CA0
Ürün Hakkında
holder, üniversal, 3-fold, plastic/metal, 1 NC, 1 NC, vidalı klemens
Siemens 3SU1550-1AA10-1PA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationHolders
design of the productholder, universal for plastic/metal
product type designation3SU1
of supplied contact module3SU1400-1AA10-1CA0, 3SU1400-1AA10-1CA0
of supplied contact module at position 13SU1400-1AA10-1CA0
of supplied contact module at position 23SU1400-1AA10-1CA0
of the supplied holder3SU1550-0AA10-0AA0
Actuator
design of the actuating element3-way with module
number of modules attachable6
number of contact modules2
Holder
material of the holderPlastic
Display
number of LED modules0
General technical data
product function positive openingVar
diodeYok
lamp transformerYok
light sourceYok
series resistorYok
insulation voltage rated value500 V
degree of pollution3
surge voltage resistance rated value6 kV
protection class IP of the terminalIP20
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
operating frequency maximum3.600 1/h
mechanical service life (operating cycles) typical10.000.000
thermal current10 A
reference code according to IEC 81346-2U
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
Substance Prohibitance (day/month/year)10/01/2014
Net Weight38 g
— at 50 Hz rated value5... 500 V
— at 60 Hz rated value5... 500 V
at DC rated value5... 500 V
Power Electronics
contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy

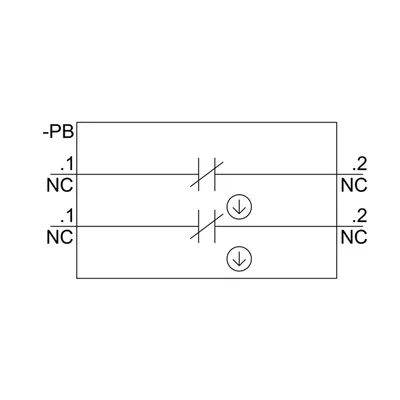

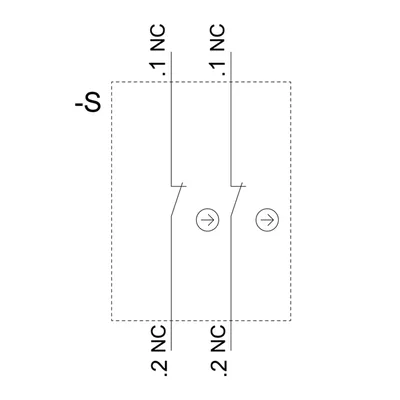

number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts0
operational current at AC-15 at 230 V rated value6 A
Connections/ Terminals
of modules and accessoriesScrew-type terminal
solid with core end processing2x (0,5... 0,75 mm²)
solid without core end processing2x (1,0... 1,5 mm²)
finely stranded with core end processing2x (0,5... 1,5 mm²)
finely stranded without core end processing2x (1,0... 1,5 mm²)
for AWG cables2x (18... 14)
tightening torque of the screws in the bracket1... 1,2 N·m
with screw-type terminals0,8... 0,9 N·m
for grounding0,8... 1 N·m
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted)

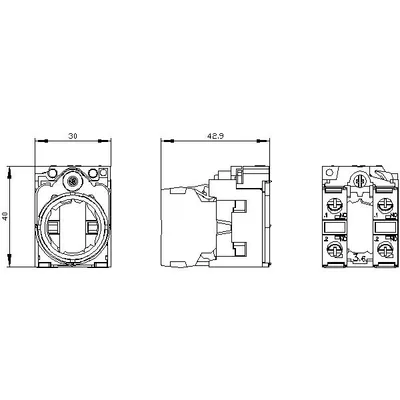

Installation/ mounting/ dimensions
fastening methodfront plate mounting
of modules and accessoriesFront plate mounting
height40 mm
width30 mm
shape of the installation openinground
mounting diameter22,5 mm
installation width30 mm
installation depth49,8 mm
thickness of the front plate usable1... 6 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,593 kg
global warming potential [CO2 eq] during manufacturing0,625 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.267 kg
Siemens eco profile (SEP)Siemens EcoTech
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,625 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.267 kg
global warming potential [CO2 eq] / total0,593 kg
Aksesuarlar 3
Siemens 3SU1550-1AA10-1PA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1950-0KK80-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1CA0 | Bileşen · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Bileşen · Commanding and signaling devices |
