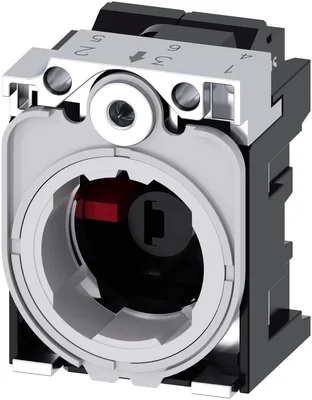

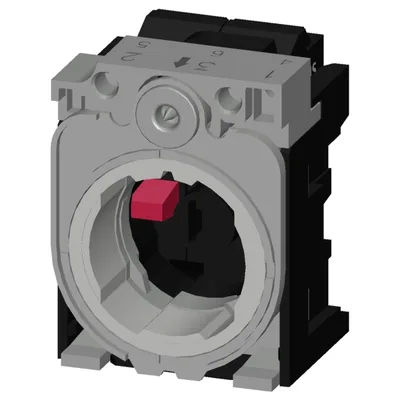

Siemens 3SU1511-1AB20-3MA0

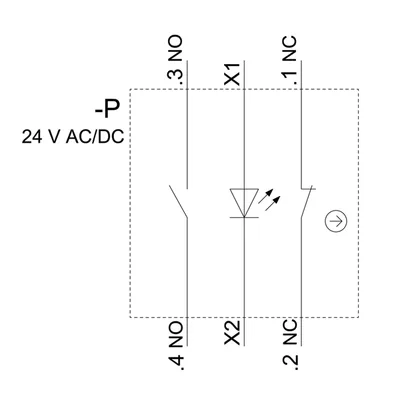

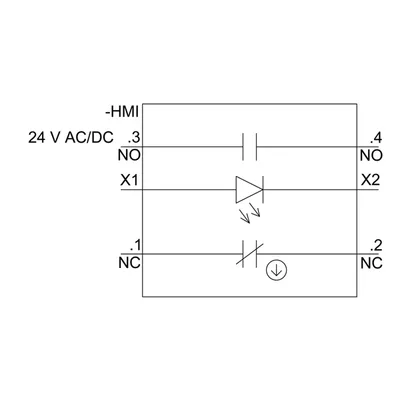

holder, 3-fold, metal, 1 NO, 1 NC, LED modül, red, 24 V AC/DC, yaylı klemens
product brand nameSIRIUS ACT
product designationHolders
design of the productholder for metal
product type designation3SU1
of supplied contact module3SU1400-1AA10-3BA0, 3SU1400-1AA10-3CA0
of supplied contact module at position 13SU1400-1AA10-3BA0
Ürün Hakkında
holder, 3-fold, metal, 1 NO, 1 NC, LED modül, red, 24 V AC/DC, yaylı klemens
Siemens 3SU1511-1AB20-3MA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationHolders
design of the productholder for metal
product type designation3SU1
of supplied contact module3SU1400-1AA10-3BA0, 3SU1400-1AA10-3CA0
of supplied contact module at position 13SU1400-1AA10-3BA0
of supplied contact module at position 23SU1400-1AA10-3CA0
of supplied LED module3SU1401-1BG20-3AA0
of the supplied holder3SU1510-0AA10-0AA0
Actuator
design of the actuating element3-way with module
number of modules attachable6
number of contact modules2
Holder
material of the holderMetal
Display
number of LED modules1
General technical data
product function positive openingVar
diodeVar
lamp transformerYok
light sourceVar
series resistorYok
insulation voltage rated value320 V
degree of pollution3
surge voltage resistance rated value4 kV
protection class IP of the terminalIP20
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
operating frequency maximum3.600 1/h
mechanical service life (operating cycles) typical10.000.000
thermal current10 A
reference code according to IEC 81346-2U
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5
Net Weight40 g
— at 50 Hz rated value24 V
— at 60 Hz rated value24 V
at DC rated value24 V
Power Electronics
contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
Control circuit/ Control
inrush current of LED module maximum2 A
Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
operational current at AC-15 at 230 V rated value6 A
Connections/ Terminals
of modules and accessoriesSpring-type terminal
solid without core end processing2x (0,25... 1,5 mm²)
finely stranded with core end processing2x (0,25... 0,75 mm²)
finely stranded without core end processing2x (0,25... 1,5 mm²)
for AWG cables2x (24... 16)
tightening torque of the screws in the bracket1... 1,2 N·m
for grounding0,8... 1 N·m
Lamp
type of light sourceLED
color of the light sourcered
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted)

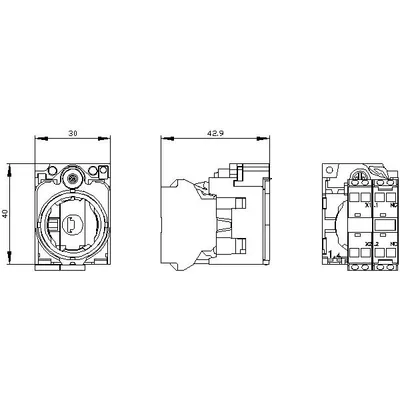

Installation/ mounting/ dimensions
fastening methodfront plate mounting
of modules and accessoriesFront plate mounting
height40 mm
width30 mm
shape of the installation openinground
mounting diameter22,5 mm
installation width30 mm
installation depth49,8 mm
thickness of the front plate usable1... 6 mm
Urun bilgileri
EAN4047621093154
Urun ailesiHolders
Yasam dongusu durumuAktif
Gumruk tarife kodu85365080
Teslimat ve lojistik
Mense ulkeGermany
Teslim suresi3 gun
Iade edilebilirEvet
Net agirlik0,04 Kg
Paket olculeri (U x G x Y)158 x 83 x 27 MM
Standart paket adedi1 adet
Minimum siparis adedi1
Tehlikeli maddeHayir
Ihracat kontroluAL : N / ECCN : N
Cevre ve uyumluluk
RoHS uyumuSince: 01-10-14
WEEE kategorisi5
REACH bilgisiLead monoxide (lead oxide) CAS-No. 1317-36-8 > 0,1 % (w / w)
Siemens katalogu
Urun grubu5452
Katalog kimligiCC-IC10
Grup koduR711
Urun sinifiStraightforward, can be reused over the short term
Aksesuarlar 4
Siemens 3SU1511-1AB20-3MA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1400-1AA10-3BA0 | Bileşen · Commanding and signaling devices | |
| 3SU1400-1AA10-3CA0 | Bileşen · Commanding and signaling devices | |
| 3SU1401-1BG20-3AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1510-0AA10-0AA0 | Bileşen · Commanding and signaling devices |
