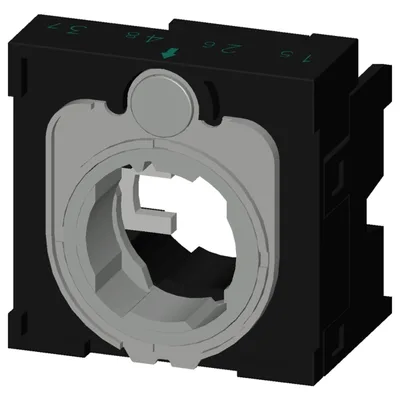

Siemens 3SU1500-0BA10-0AA0
holder, 4-fold, plastic, için seçici anahtar ile 4 anahtar positions ve için coordinate anahtar
product brand nameSIRIUS ACT
product designationHolders
design of the productholder for plastic
product type designation3SU1
design of the actuating element4-way without module
number of modules attachable8
Ürün Hakkında
holder, 4-fold, plastic, için seçici anahtar ile 4 anahtar positions ve için coordinate anahtar
Siemens 3SU1500-0BA10-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationHolders
design of the productholder for plastic
product type designation3SU1
Actuator
design of the actuating element4-way without module
number of modules attachable8
number of contact modules0
Holder
material of the holderPlastic
Display
number of LED modules0
General technical data
product function positive openingYok
diodeYok
lamp transformerYok
light sourceYok
series resistorYok
insulation voltage rated value500 V
degree of pollution3
surge voltage resistance rated value6 kV
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
reference code according to IEC 81346-2U
Substance Prohibitance (day/month/year)10/01/2014
Net Weight35 g
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
Connections/ Terminals
tightening torque of the screws in the bracket1... 1,2 N·m
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted)

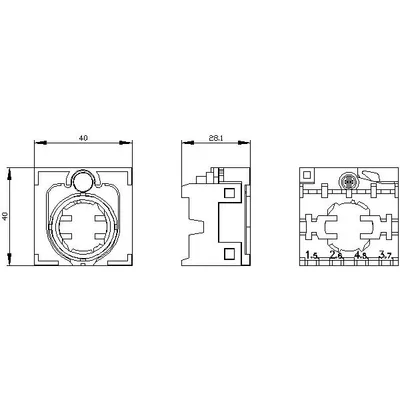

Installation/ mounting/ dimensions
fastening methodwithout
of modules and accessoriesFront plate mounting
height40 mm
width40 mm
shape of the installation openinground
mounting diameter22,5 mm
installation width40 mm
installation depth32,1 mm
thickness of the front plate usable1... 6 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,787 kg
global warming potential [CO2 eq] during manufacturing0,566 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.015 kg
Siemens eco profile (SEP)Siemens EcoTech
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 11
Siemens 3SU1500-0BA10-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1500-0AA10-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1000-2AS60-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1000-7AE10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1000-7AF10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1000-7BE10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1000-7BF10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1030-2AS60-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1030-7AE10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1030-7AF10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1030-7BE10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1030-7BF10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
