Siemens 3SU1401-2BB40-1AA0

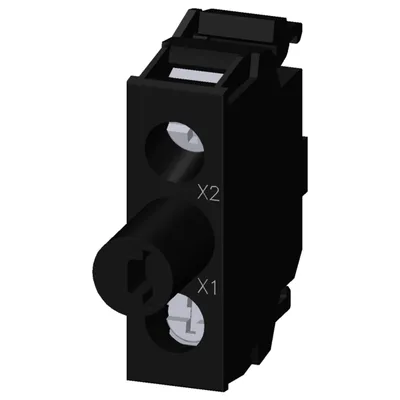

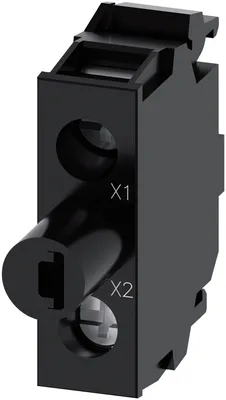

LED module with integrated LED 24 V AC/DC, green, screw terminal, for floor mounting, Minimum order quantity 5 or a multiple thereof
product brand nameSIRIUS ACT
product designationLED module
product type designation3SU1
diodeVar
lamp transformerYok
light sourceVar
Ürün Hakkında
LED module with integrated LED 24 V AC/DC, green, screw terminal, for floor mounting, Minimum order quantity 5 or a multiple thereof
Siemens 3SU1401-2BB40-1AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationLED module
product type designation3SU1
General technical data
diodeVar
lamp transformerYok
light sourceVar
series resistorYok
insulation voltage rated value320 V
degree of pollution3
type of voltage of the operating voltageAC/DC
for actuationAC/DC
surge voltage resistance rated value4 kV
consumed current maximum25 mA
of the enclosureIP40
of the terminalIP20
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
operating period typical100.000 h
reference code according to IEC 81346-2P
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight8 g
— at 50 Hz rated value24 V
— at 60 Hz rated value24 V
at DC rated value24 V
relative positive tolerance of the operating voltage20 %
relative negative tolerance of the operating voltage20 %
Control circuit/ Control
inrush current maximum2 A
Connections/ Terminals
type of electrical connectionscrew terminal
solid with core end processing2x (0,5... 0,75 mm²)
solid without core end processing2x (1,0... 1,5 mm²)
finely stranded with core end processing2x (0,5... 1,5 mm²)
finely stranded without core end processing2x (1,0... 1,5 mm²)
for AWG cables2x (18... 14)
connectable conductor cross-section finely stranded with core end processing0,5... 1,5 mm²
tightening torque with screw-type terminals0,8... 0,9 N·m
Lamp
type of light sourceLED
color of the light sourcegreen
light intensity900... 1.400 mcd
ATEX
ATEXYok
IECExYok
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted)

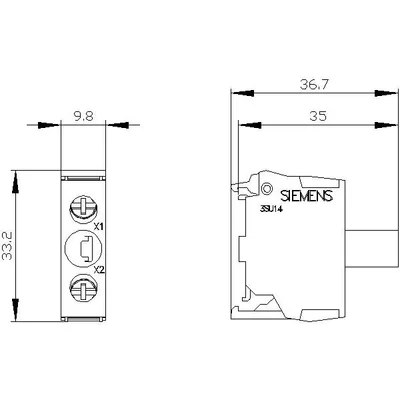

Installation/ mounting/ dimensions
of modules and accessoriesFloor mounting
height33,2 mm
width9,8 mm
depth29,4 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,787 kg
global warming potential [CO2 eq] during manufacturing0,566 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.015 kg
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 2
Siemens 3SU1401-2BB40-1AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1500-0AA10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
