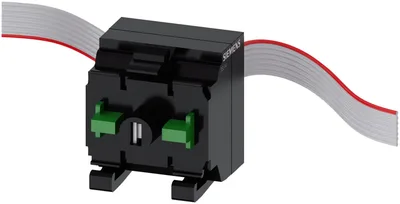

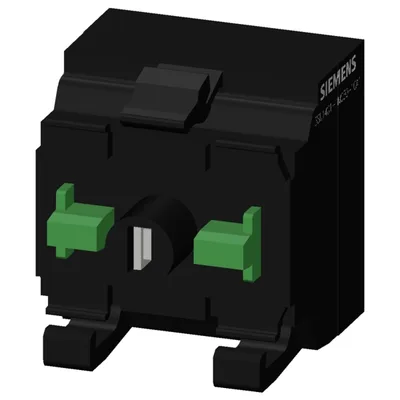

Siemens 3SU1401-1MC30-1CA1
SIRIUS ACT: terminal module (command and LED module), integrated LED yellow, for front plate mounting
product brand nameSIRIUS ACT
product designationTerminal module
design of the productwith 2 contacts ve dahili LED
product type designation3SU1
status Tx/Rx linkYok
reverse polarity protectionVar; Ribbon cable can be rotated 180°.
Ürün Hakkında
SIRIUS ACT: terminal module (command and LED module), integrated LED yellow, for front plate mounting
Siemens 3SU1401-1MC30-1CA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationTerminal module
design of the productwith 2 contacts ve dahili LED
product type designation3SU1
Display
for diagnostic function: Supply voltage monitoring power LEDVar
status Tx/Rx linkYok
General technical data
reverse polarity protectionVar; Ribbon cable can be rotated 180°.
diagnostics functionVar
firmware version1.0.0
hardware version1
software version with STEP 7 in the TIA Portal requiredV13 SP1 (V13 SP1 ve V14 with HSP0132)
power loss [W] typical0,115 W
degree of pollution3
of the operating voltageDC
of the input voltageDC
surge voltage resistance rated value0,8 kV
maximum27 mA
rated value23 mA
protection class IPIP20
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)12/19/2016
SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight18 g
Communication/ Protocol
PROFIsafe protocolYok
Connections/ Terminals
type of electrical connectionInsulation displacement connection
type of connectable conductor cross-sectionsRibbon cable 7-pole, 7 x 0,08 mm2
solid or stranded0,08 mm²
finely stranded with core end processing maximum0,08 mm²
solid0,08 mm²
solid with core end processing0,08 mm²
finely stranded with core end processing0,08 mm²
finely stranded without core end processing0,08 mm²
AWG number as coded connectable conductor cross section28
Lamp
color of the light sourceyellow
Safety related data
product function suitable for safety functionYok
service life maximum20 a
Ambient conditions
during operation-25... +60 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted)
explosion protection marking for intrinsic safety of related equipment EEx iaYok
explosion protection marking for intrinsic safety of related equipment EEx ibYok
Installation/ mounting/ dimensions
fastening method of modules and accessoriesFront plate mounting
height32,6 mm
width30 mm
depth31,5 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,787 kg
global warming potential [CO2 eq] during manufacturing0,566 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.015 kg
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 2
Siemens 3SU1401-1MC30-1CA1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1500-0AA10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
