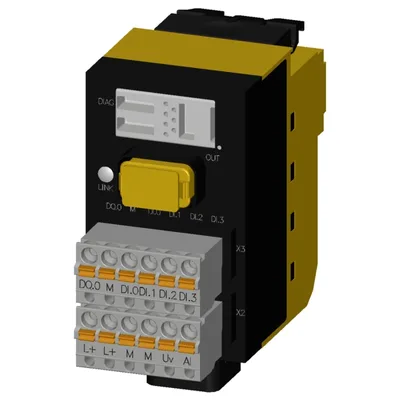

Siemens 3SU1400-1LL10-3BA1
SIRIUS ACT ile PROFINET: fail-safe arayüz modülü ile 4 DI, 1 DQ (24 V DC), 1 AI (12-bit A/D resolution), 24 V DC, yaylı klemens, ön plaka montaj, 1 to 20 klemens modülleri connectable
product brand nameSIRIUS ACT
product designationFail-safe interface module for PROFINET
product type designation3SU1
status Tx/Rx linkVar
diagnostics functionVar
alarmsVar
Ürün Hakkında
SIRIUS ACT ile PROFINET: fail-safe arayüz modülü ile 4 DI, 1 DQ (24 V DC), 1 AI (12-bit A/D resolution), 24 V DC, yaylı klemens, ön plaka montaj, 1 to 20 klemens modülleri connectable
Siemens 3SU1400-1LL10-3BA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationFail-safe interface module for PROFINET
product type designation3SU1
Display
for diagnostic function: Supply voltage monitoring power LEDVar
status Tx/Rx linkVar
General technical data
reverse polarity protectionVar; With polarity change, DI1... DI4 may not be connected to (M) pole
diagnostics functionVar
alarmsVar
I&M dataVar; I&M0... I&M3
firmware version2.1.4
hardware version1
configuration function with datasetVar
software version with STEP 7 in the TIA Portal requireddahili in TIA Portal Version 14 SP1 veya üstü (HSP for V13 ve V14)
number of units per rack maximum20
number of submodules per station maximum24
power loss [W] typical0,67 W
insulation voltage rated value30 V
degree of pollution3
of the operating voltageDC
of the input voltageDC
surge voltage resistance rated value0,8 kV
maximum100 mA
rated value28 mA
protection class IPIP20
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)12/19/2016
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight157,38 g
operating voltage rated value minimum20,4 V
I2t value0,008 A²·s
Besleme gerilimi
supply voltage at DC rated value24 V
Communication/ Protocol
PROFINET IO protocolVar
PROFIsafe protocolVar
AutocrossoverVar
Otomatik anlaşma (autonegotiation)Var
protocol at the 1st interface media redundancy protocolYok
product function at the 1st interface PROFINET IO deviceVar
product function of the PROFINET IO device is supported PROFINET system redundancyYok
prioritized startupYok
isochronous modeYok
supports Shared DeviceYok
supports PROFIenergyYok
IRTYok
MRPYok
MRPDYok
LLDPVar
SNMPVar
TCP/IPVar
GSD version/revision with PROFINET requiredV2.34
transmission mode for Industrial EthernetPROFINET with 100 Mbps full duplex (100BASE-TX)
network load class according to PROFINETI
specification for Security Level 1 test according to PROFINETResilient to network loading
Control circuit/ Control
inrush current maximum16 A
Galvanic isolation
galvanic isolation between PROFINET and all other circuitsVar
Inputs/ Outputs
number of digital inputs4
safety-related0
number of analog inputs1
number of digital outputs1
Connections/ Terminals
type of electrical connectionspring-loaded terminals
solid or stranded0,2... 2,5 mm²
finely stranded with core end processing maximum2,5 mm²
solid0,2... 2,5 mm²
solid with core end processing0,2... 2,5 mm²
finely stranded with core end processing0,25... 2,5 mm²
finely stranded without core end processing0,2... 2,5 mm²
AWG number as coded connectable conductor cross section26... 12
Safety related data
product function suitable for safety functionVar
safe stateProcess value within PROFISafe telegram is set to zero
service life maximum20 a
test wear-related service life necessaryYok
function test interval maximum1 mo
IEC 62061
Safety Integrity Level (SIL) according to IEC 62061SIL 3
PFHD with high demand rate according to IEC 620616E-10 1/h
ISO 13849
performance level (PL) according to ISO 13849-1PL e
category according to ISO 13849-14
device type according to ISO 13849-11
IEC 61508
Safety Integrity Level (SIL) according to IEC 61508SIL 3
safety device type according to IEC 61508-2Type B
PFHD with high demand rate according to IEC 615086E-10 1/h
PFDavg with low demand rate according to IEC 615082.426E-6
Safe failure fraction (SFF)99,6 %
hardware fault tolerance according to IEC 615081
according to IEC 615081 a
of service life according to IEC 6150820 a
Arayüzler
Ethernet interfaceVar; for Ethernet services
Fast Ethernet interfaceVar; PROFINET with 100 Mbps
Dahili switchYok
RJ45 (Ethernet)Var
number of ports at the 1st interface1
number of interfaces according to PROFINET1
Ambient conditions
during operation-25... +60 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted)
explosion protection marking for intrinsic safety of related equipment EEx iaYok
explosion protection marking for intrinsic safety of related equipment EEx ibYok

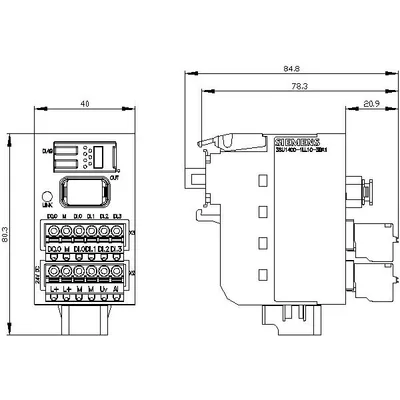

Installation/ mounting/ dimensions
fastening method of modules and accessoriesFront plate mounting
height80,1 mm
width40 mm
depth72,1 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,787 kg
global warming potential [CO2 eq] during manufacturing0,566 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.015 kg
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 8
Siemens 3SU1400-1LL10-3BA1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1401-3BA00-5AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1401-3BA20-5AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1401-3BA30-5AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1401-3BA40-5AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1401-3BA50-5AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1401-3BA60-5AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1500-0AA10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
