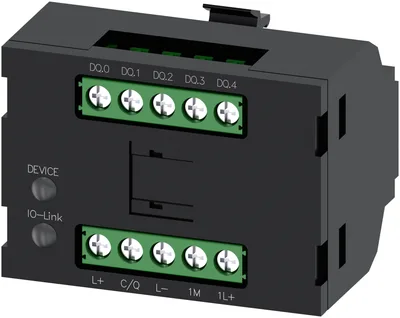

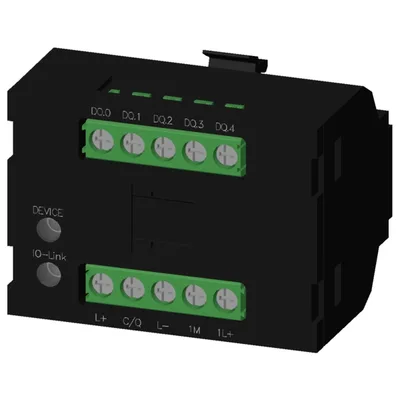

Siemens 3SU1400-1GD10-1AA0
elektronik modül IO-Link için RFID key-operated anahtar, ile 5 pre-programmed elektronik switches, kontrolcü ve RFID authentication of the anahtarlama fonksiyon, black, çalışma gerilim 24 V DC, vidalı klemens, için ön plaka montaj, için industrial application in kontrol cabinets ve machines
product brand nameSIRIUS ACT
product type designation3SU1
product extension optional light sourceYok
socket designother
number of LEDs4
insulation voltage rated value30 V
Ürün Hakkında
elektronik modül IO-Link için RFID key-operated anahtar, ile 5 pre-programmed elektronik switches, kontrolcü ve RFID authentication of the anahtarlama fonksiyon, black, çalışma gerilim 24 V DC, vidalı klemens, için ön plaka montaj, için industrial application in kontrol cabinets ve machines
Siemens 3SU1400-1GD10-1AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationElectronic module for ID key-operated switches
product type designation3SU1
Actuator
product extension optional light sourceYok
Contact block/ lampholder
socket designother
Display
number of LEDs4
General technical data
insulation voltage rated value30 V
degree of pollution3
of the operating voltageDC
of the input voltageDC
surge voltage resistance rated value0,8 kV
consumed current maximum49 mA
protection class IPIP20, clamping screw tightened
reference code according to IEC 81346-2P
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight45,38 g
rated value18... 30 V
at DC rated value24 V
operating voltage 1 at DC rated value24 V
Communication/ Protocol
protocol is supported IO-Link protocolVar
IO-Link transfer rateCOM2 (38,4 kBaud)
point-to-point cycle time between master and IO-Link device minimum10 ms
type of voltage supply via input/output link masterVar
of the address range of the inputs with cyclical transfer total2 bayt
of the address range of the outputs with cyclical transfer total0 bayt
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts5
Inputs/ Outputs
number of digital inputs0
safety-related0
number of digital outputs5
output voltage at digital output at DC rated value23,5 V
output current per output250 mA
Connections/ Terminals
type of electrical connectionscrew terminal
solid without core end processing1x (0,2... 2,5 mm²)
finely stranded with core end processing1x (0,25... 1,5 mm²), 2x (0,5... 0,75 mm²)
finely stranded without core end processing1x (0,2... 2,5 mm²), 2x (0,2... 0,75 mm²)
for AWG cables1x (26... 14)
tightening torque with screw-type terminals0,4 N·m
Product Function
product function parameterizableVar
Safety related data
at 70 °C138 a
at full load at 25 °C141 a
Electrical Safety
touch protection against electrical shockfinger-safe
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted)

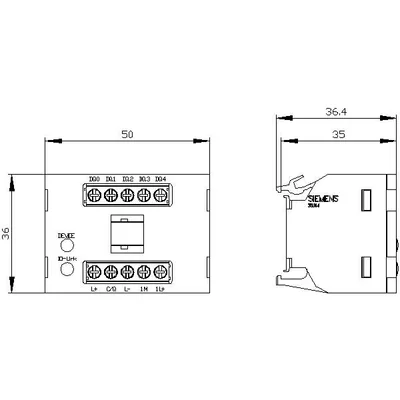

Installation/ mounting/ dimensions
fastening methodfront plate mounting
of modules and accessoriesFront plate mounting
height36 mm
width50 mm
depth36,4 mm
forwards100 mm
backwards100 mm
upwards100 mm
downwards100 mm
at the side100 mm
Measuring circuit
product functionIO-Link 24 V DC
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,787 kg
global warming potential [CO2 eq] during manufacturing0,566 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.015 kg
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 2
Siemens 3SU1400-1GD10-1AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1500-0AA10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
