Siemens 3SU1400-1EC10-2AA0

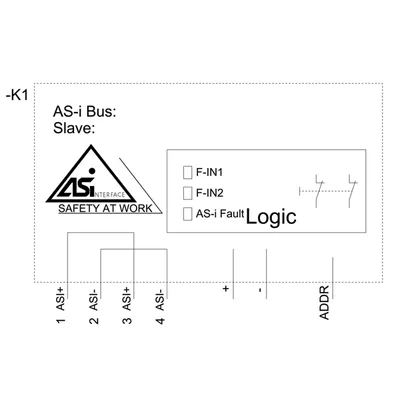

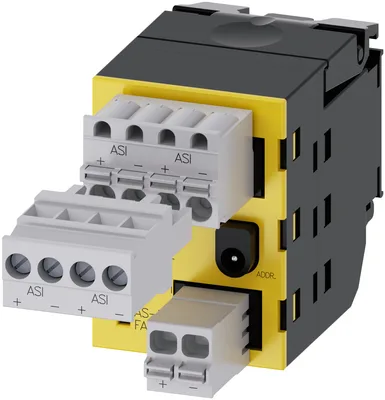

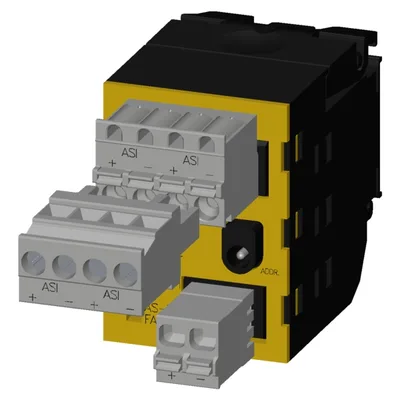

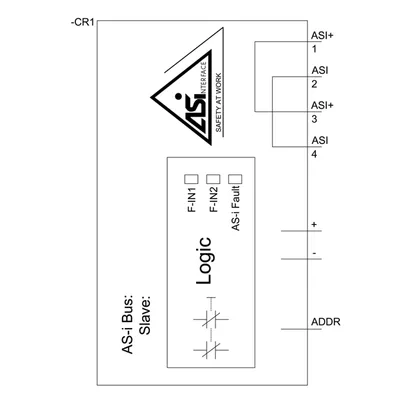

AS-Interface module, 2 safe inputs, 1 output, black, 4-pole connector with screw terminal, 2-pole and 4-pole connector with spring-type terminal, for front plate mounting
product brand nameSIRIUS ACT
product designationAS-Interface module
product type designation3SU1
product function2F-DI / 1 DQ
degree of pollution3
of the operating voltageDC
Ürün Hakkında
AS-Interface module, 2 safe inputs, 1 output, black, 4-pole connector with screw terminal, 2-pole and 4-pole connector with spring-type terminal, for front plate mounting
Siemens 3SU1400-1EC10-2AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationAS-Interface module
product type designation3SU1
General technical data
product function2F-DI / 1 DQ
degree of pollution3
of the operating voltageDC
of the input voltageDC
consumed current maximum60 mA
protection class IPIP20, clamping screw tightened
shock resistance for railway applications according to EN 61373Category 1, Class B
vibration resistance for railway applications according to EN 61373Category 1, Class B
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 Diboron trioxide CAS-Yok. 1303-86-2
Net Weight63,38 g
design of the device type2 F-DI + 1 DQ
AS-Interface device profileS-7.B.F
ID1 code0...F
number of AS-i devices1
operating voltage rated value26,5... 31,6 V
operating voltage 1 at DC rated value30 V
Communication/ Protocol
AS-Interface protocolVar
ASIsafe (Safety at work) protocolVar
Inputs/ Outputs
safety-related2
number of digital outputs1; Unrestricted
Connections/ Terminals
type of electrical connectionScrew connection + spring-type terminal
solid without core end processing1x (0,2... 2,5 mm²)
finely stranded with core end processing1x (0,25... 2,5 mm²)
finely stranded without core end processing1x (0,2... 2,5 mm²)
for AWG cables1x (30... 12)
tightening torque with screw-type terminals0,5... 0,6 N·m
Product Function
suitability for use safety-related circuitsVar
Safety related data
product function suitable for safety functionVar
safe stateoff
test wear-related service life necessaryYok
category according to EN 954-14
average diagnostic coverage level (DCavg)99 %
IEC 62061
Safety Integrity Level (SIL) according to IEC 62061SIL 3
PFHD with high demand rate according to IEC 620614.5E-9 1/h
ISO 13849
performance level (PL) according to ISO 13849-1PL e
category according to ISO 13849-14
device type according to ISO 13849-11
IEC 61508
according to IEC 61508SIL 3
safety device type according to IEC 61508-2Type B
PFHD with high demand rate according to IEC 615084.5E-9 1/h
PFDavg with low demand rate according to IEC 615085E-6
Safe failure fraction (SFF)99 %
hardware fault tolerance according to IEC 615081
T1 value of service life according to IEC 6150820 a
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10... 95%, no condensation in operation permitted)

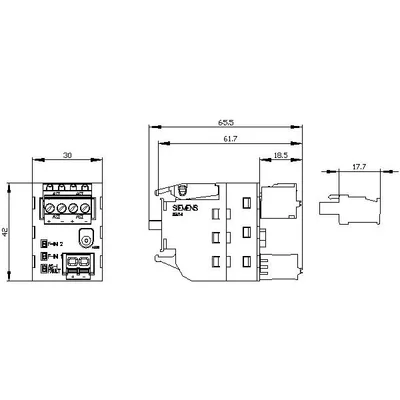

Installation/ mounting/ dimensions
of modules and accessoriesFront plate mounting
of the AS-i devicesFrontplattenbefestigung
height42 mm
width30 mm
depth65,5 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,787 kg
global warming potential [CO2 eq] during manufacturing0,566 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.015 kg
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 2
Siemens 3SU1400-1EC10-2AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1500-0AA10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
