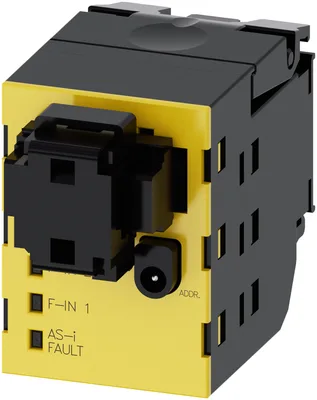

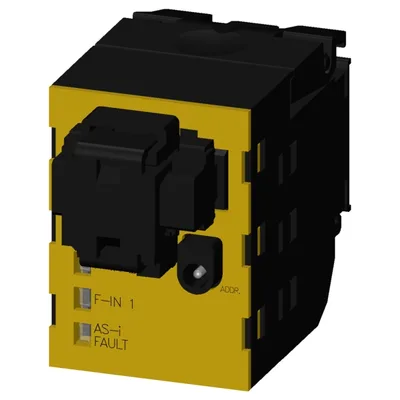

Siemens 3SU1400-1EA10-4AA0
AS-Interface modül, 2 safe giriş, black, izolasyon displacement system, için ön plaka montaj
product brand nameSIRIUS ACT
product designationAS-Interface module
product type designation3SU1
product function2F-DI
degree of pollution3
of the operating voltageDC
Ürün Hakkında
AS-Interface modül, 2 safe giriş, black, izolasyon displacement system, için ön plaka montaj
Siemens 3SU1400-1EA10-4AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationAS-Interface module
product type designation3SU1
General technical data
product function2F-DI
degree of pollution3
of the operating voltageDC
of the input voltageDC
consumed current maximum60 mA
protection class IPIP20
shock resistance for railway applications according to EN 61373Category 1, Class B
vibration resistance for railway applications according to EN 61373Category 1, Class B
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 Diboron trioxide CAS-Yok. 1303-86-2
Net Weight46,38 g
design of the device type2 F-DI
AS-Interface device profileS-0.B.F
ID1 code0...F
number of AS-i devices1
operating voltage rated value26,5... 31,6 V
operating voltage 1 at DC rated value30 V
Communication/ Protocol
AS-Interface protocolVar
ASIsafe (Safety at work) protocolVar
Inputs/ Outputs
safety-related2
Connections/ Terminals
type of electrical connectionInsulation displacement method
Product Function
suitability for use safety-related circuitsVar
Safety related data
product function suitable for safety functionVar
safe stateoff
test wear-related service life necessaryYok
category according to EN 954-14
average diagnostic coverage level (DCavg)99 %
IEC 62061
Safety Integrity Level (SIL) according to IEC 62061SIL 3
PFHD with high demand rate according to IEC 620614.5E-9 1/h
ISO 13849
performance level (PL) according to ISO 13849-1PL e
category according to ISO 13849-14
device type according to ISO 13849-11
IEC 61508
according to IEC 61508SIL 3
safety device type according to IEC 61508-2Type B
PFHD with high demand rate according to IEC 615084.5E-9 1/h
PFDavg with low demand rate according to IEC 615085E-6
Safe failure fraction (SFF)99 %
hardware fault tolerance according to IEC 615081
T1 value of service life according to IEC 6150820 a
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10... 95%, no condensation in operation permitted)

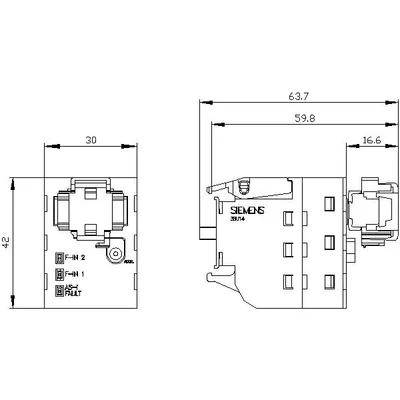

Installation/ mounting/ dimensions
of modules and accessoriesFront plate mounting
of the AS-i devicesFrontplattenbefestigung
height42 mm
width30 mm
depth65,5 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,787 kg
global warming potential [CO2 eq] during manufacturing0,566 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.015 kg
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 2
Siemens 3SU1400-1EA10-4AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1500-0AA10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
