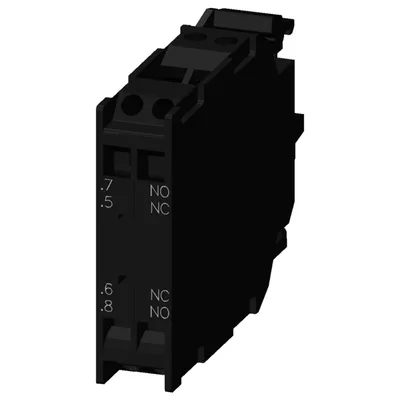

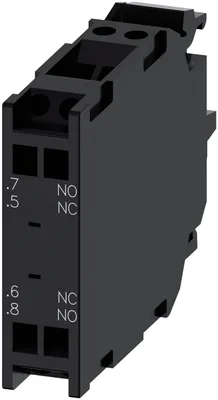

Siemens 3SU1400-1AA10-3GA0
kontak modül ile 2 kontak elements, 1 NO leading + 1 NC lagging, spring-type klemens, için ön plaka montaj
product brand nameSIRIUS ACT
product designationContact module
product type designation3SU1
socket designother
product function positive openingYok
insulation voltage rated value500 V
Ürün Hakkında
kontak modül ile 2 kontak elements, 1 NO leading + 1 NC lagging, spring-type klemens, için ön plaka montaj
Siemens 3SU1400-1AA10-3GA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationContact module
product type designation3SU1
Contact block/ lampholder
socket designother
General technical data
product function positive openingYok
insulation voltage rated value500 V
degree of pollution3
of the operating voltageAC/DC
of the input voltageAC/DC
surge voltage resistance rated value6 kV
of the enclosureIP40
of the terminalIP20
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
operating frequency maximum3.600 1/h
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) typical10.000.000
thermal current10 A
reference code according to IEC 81346-2S
continuous current of the C characteristic MCB10 A
Substance Prohibitance (day/month/year)10/01/2014
Net Weight16 g
— at 50 Hz rated value5... 500 V
— at 60 Hz rated value5... 500 V
at DC rated value5... 500 V
Power Electronics
contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

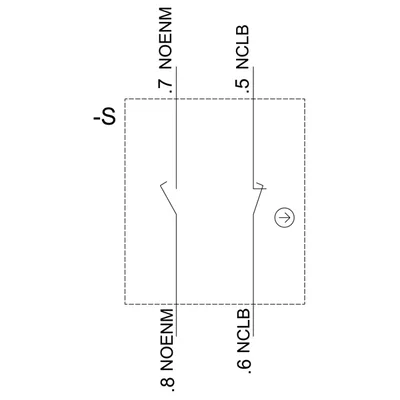

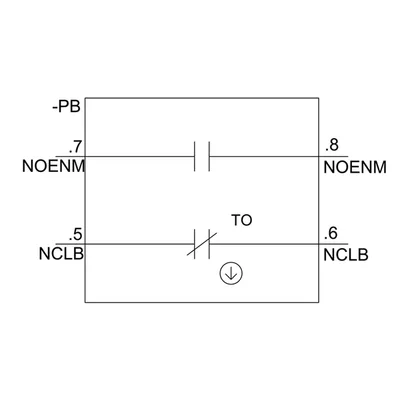

Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts1
lagging switching1
number of NO contacts for auxiliary contacts1
leading contact1
at 24 V rated value10 A
at 48 V rated value10 A
at 110 V rated value10 A
at 230 V rated value8 A
at 400 V rated value6 A
at 24 V rated value6 A
at 48 V rated value6 A
at 110 V rated value6 A
at 230 V rated value4 A
at 400 V rated value3 A
at 500 V rated value1,4 A
at 24 V rated value10 A
at 48 V rated value5 A
at 24 V rated value3 A
at 48 V rated value1,5 A
at 110 V rated value0,7 A
at 230 V rated value0,3 A
at 400 V rated value0,1 A
at 500 V rated value0,1 A
Connections/ Terminals
type of electrical connectionspring-loaded terminals
solid without core end processing2x (0,25... 1,5 mm²)
finely stranded with core end processing2x (0,25... 0,75 mm²)
finely stranded without core end processing2x (0,25... 1,5 mm²)
for AWG cables2x (24... 16)
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10... 95%, no condensation in operation permitted)

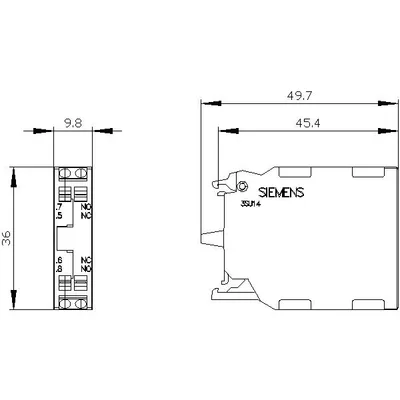

Installation/ mounting/ dimensions
fastening methodfront plate mounting
of modules and accessoriesFront plate mounting
height36 mm
width9,8 mm
depth49,7 mm
plastic enclosureYok
metal enclosureYok
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,787 kg
global warming potential [CO2 eq] during manufacturing0,566 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.015 kg
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
