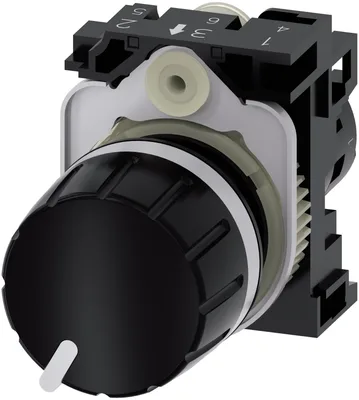

Siemens 3SU1200-2PQ10-1AA0

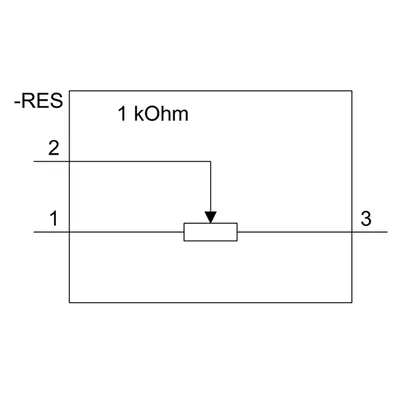

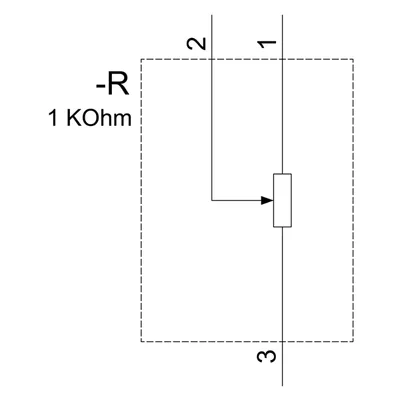

Potentiometer, compact, 22 mm, round, plastic, black, 1k ohm, ile holder, vidalı klemens
product brand nameSIRIUS ACT
product designationPotentiometers
design of the productCompact unit
product type designation3SU1
product linePlastic, black, 22 mm
number of command points1
Ürün Hakkında
Potentiometer, compact, 22 mm, round, plastic, black, 1k ohm, ile holder, vidalı klemens
Siemens 3SU1200-2PQ10-1AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationPotentiometers
design of the productCompact unit
product type designation3SU1
product linePlastic, black, 22 mm
manufacturer's article number of the supplied holder3SU1550-0AA10-0AA0
Enclosure
number of command points1
Actuator
design of the actuating elementRotary knob
principle of operation of the actuating elementInfinitely variable adjustment, angle of rotation 280°
color of the actuating elementblack
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element30 mm
Maximum deflection angle [°]280°
Front ring
product component front ringYok
Holder
material of the holderPlastic
General technical data
consumed active power1 W
insulation voltage rated value500 V
degree of pollution3
protection class IPIP66, IP67, IP69(IP69K)
protection class IP of the terminalIP20, clamping screw tightened
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
mechanical service life (operating cycles) typical25.000
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)01/01/2016
Net Weight63 g
Connections/ Terminals
type of electrical connectionscrew terminal
solid with core end processing2x (0,5... 0,75 mm²)
solid without core end processing2x (1,0... 1,5 mm²)
finely stranded with core end processing2x (0,5... 1,5 mm²)
finely stranded without core end processing2x (1,0... 1,5 mm²)
for AWG cables2x (18... 14)
tightening torque of the screws in the bracket1... 1,2 N·m
tightening torque with screw-type terminals0,8... 1 N·m
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
height40 mm
width30 mm
shape of the installation openinground
mounting diameter22,3 mm
positive tolerance of installation diameter0,4 mm
mounting height19,4 mm
installation width30 mm
installation depth46 mm
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 5
Siemens 3SU1200-2PQ10-1AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0BG16-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0BG16-0RT0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0BG16-0RU0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0BG16-0SA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Bileşen · Commanding and signaling devices |
