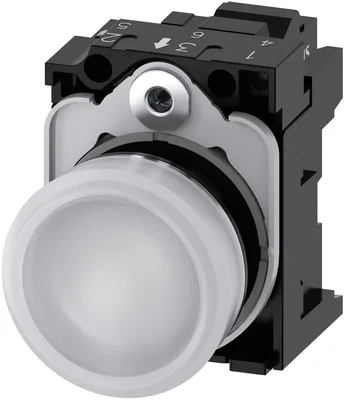

Siemens 3SU1153-6AA60-3AA0
Indicator lights, 22 mm, round, metal, shiny, white, lens, smooth, with holder, LED module with integrated LED 110 V AC, Spring-type terminal
product brand nameSIRIUS ACT
product designationIndicator lights
design of the productComplete unit
product type designation3SU1
product lineMetal, shiny, 22 mm
of supplied LED module3SU1401-1BC60-3AA0
Ürün Hakkında
Indicator lights, 22 mm, round, metal, shiny, white, lens, smooth, with holder, LED module with integrated LED 110 V AC, Spring-type terminal
Siemens 3SU1153-6AA60-3AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationIndicator lights
design of the productComplete unit
product type designation3SU1
product lineMetal, shiny, 22 mm
of supplied LED module3SU1401-1BC60-3AA0
of the supplied holder3SU1550-0AA10-0AA0
of supplied repeater3SU1051-6AA60-0AA0
Enclosure
number of command points1
Actuator
product extension optional light sourceVar
of the actuating elementwhite
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element29,45 mm
Front ring
product component front ringYok
Holder
material of the holderPlastic
Display
number of LED modules1
General technical data
product component light sourceVar
insulation voltage rated value320 V
degree of pollution3
type of voltage of the operating voltageAC
surge voltage resistance rated value4 kV
protection class IPIP66, IP67, IP69(IP69K)
protection class IP of the terminalIP20
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
according to IEC 60068-2-610... 500 Hz: 5 g
reference code according to IEC 81346-2P
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5
Net Weight54,5 g
Besleme gerilimi
type of voltage of the supply voltage of the light sourceAC
at 50 Hz rated value110 V
at 60 Hz rated value110 V
at 60 Hz rated value110 V
relative negative tolerance of the supply voltage20 %
relative positive tolerance of the supply voltage20 %
Control circuit/ Control
inrush current maximum3 A
Connections/ Terminals
type of electrical connectionother
of modules and accessoriesSpring-type terminal
solid without core end processing2x (0,25... 1,5 mm²)
finely stranded with core end processing2x (0,25... 0,75 mm²)
finely stranded without core end processing2x (0,25... 1,5 mm²)
for AWG cables2x (24... 16)
tightening torque of the screws in the bracket1... 1,2 N·m
Lamp
type of light sourceLED
color of the light sourcewhite
light intensity450... 1.120 mcd
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
fastening methodfront plate mounting
of modules and accessoriesFront plate mounting
height40 mm
width30 mm
shape of the installation openinground
mounting diameter22,3 mm
positive tolerance of installation diameter0,4 mm
mounting height11,8 mm
installation width29,5 mm
installation depth49,7 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,593 kg
global warming potential [CO2 eq] during manufacturing0,625 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.267 kg
Siemens eco profile (SEP)Siemens EcoTech
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,625 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.267 kg
global warming potential [CO2 eq] / total0,593 kg
Aksesuarlar 7
Siemens 3SU1153-6AA60-3AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0AC81-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AC16-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AN10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AG10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1401-1BC60-3AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1051-6AA60-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Bileşen · Commanding and signaling devices |
