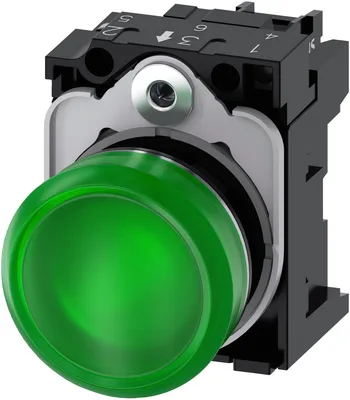

Siemens 3SU1152-6AA40-1AA0
indicator light, 22 mm, round, metal, shiny, green, lens, smooth, with holder, LED module with integrated LED 24 V AC/DC, screw terminal
product brand nameSIRIUS ACT
product designationIndicator lights
design of the productComplete unit
product type designation3SU1
product lineMetal, shiny, 22 mm
of supplied LED module3SU1401-1BB40-1AA0
Ürün Hakkında
indicator light, 22 mm, round, metal, shiny, green, lens, smooth, with holder, LED module with integrated LED 24 V AC/DC, screw terminal
Siemens 3SU1152-6AA40-1AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationIndicator lights
design of the productComplete unit
product type designation3SU1
product lineMetal, shiny, 22 mm
of supplied LED module3SU1401-1BB40-1AA0
of the supplied holder3SU1550-0AA10-0AA0
of supplied repeater3SU1051-6AA40-0AA0
Enclosure
number of command points1
Actuator
product extension optional light sourceVar
of the actuating elementgreen
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element29,45 mm
Front ring
product component front ringYok
Holder
material of the holderPlastic
Display
number of LED modules1
General technical data
product component light sourceVar
insulation voltage rated value320 V
degree of pollution3
type of voltage of the operating voltageAC/DC
surge voltage resistance rated value4 kV
protection class IPIP66, IP67, IP69(IP69K)
protection class IP of the terminalIP20
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
according to IEC 60068-2-610... 500 Hz: 5 g
reference code according to IEC 81346-2P
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance nameLead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5
Net Weight55,5 g
Besleme gerilimi
type of voltage of the supply voltage of the light sourceAC/DC
at 50 Hz rated value24 V
at 60 Hz rated value24 V
at 60 Hz rated value24 V
24 V
24 V
relative negative tolerance of the supply voltage20 %
relative positive tolerance of the supply voltage20 %
Control circuit/ Control
inrush current maximum2 A
Connections/ Terminals
type of electrical connectionother
of modules and accessoriesScrew-type terminal
solid with core end processing2x (0,5... 0,75 mm²)
solid without core end processing2x (1,0... 1,5 mm²)
finely stranded with core end processing2x (0,5... 1,5 mm²)
finely stranded without core end processing2x (1,0... 1,5 mm²)
for AWG cables2x (18... 14)
tightening torque of the screws in the bracket1... 1,2 N·m
tightening torque with screw-type terminals0,8... 0,9 N·m
Lamp
type of light sourceLED
color of the light sourcegreen
light intensity900... 1.800 mcd
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
fastening methodfront plate mounting
of modules and accessoriesFront plate mounting
height40 mm
width30 mm
shape of the installation openinground
mounting diameter22,3 mm
positive tolerance of installation diameter0,4 mm
mounting height11,8 mm
installation width29,5 mm
installation depth49,7 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,593 kg
global warming potential [CO2 eq] during manufacturing0,625 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.267 kg
Siemens eco profile (SEP)Siemens EcoTech
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,625 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.267 kg
global warming potential [CO2 eq] / total0,593 kg
