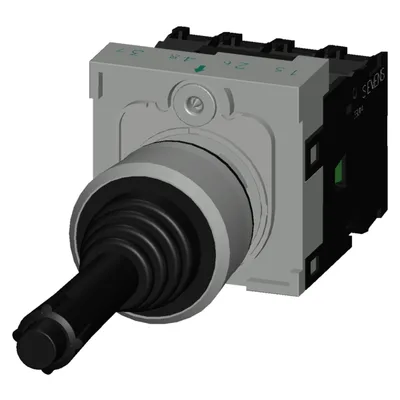

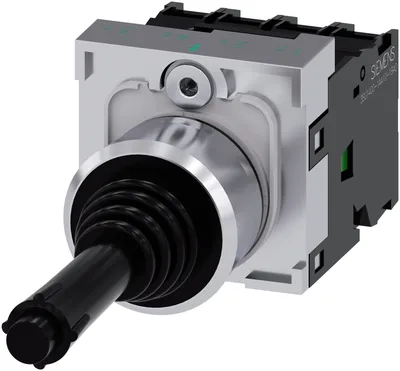

Siemens 3SU1150-7BF88-1QA0
coordinate anahtar, 22 mm, round, metal shiny, black, 4 anahtar positions, momentary kontak tip, ile mechanical interlock in O konum, ile holder, 1 NO, 1 NO, 1 NO, 1 NO, vidalı klemens,
product brand nameSIRIUS ACT
product designationCoordinate switches
design of the productComplete unit
product type designation3SU1
product lineMetal, shiny, 22 mm
of supplied contact module at position 13SU1400-1AA10-1BA0
Ürün Hakkında
coordinate anahtar, 22 mm, round, metal shiny, black, 4 anahtar positions, momentary kontak tip, ile mechanical interlock in O konum, ile holder, 1 NO, 1 NO, 1 NO, 1 NO, vidalı klemens,
Siemens 3SU1150-7BF88-1QA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationCoordinate switches
design of the productComplete unit
product type designation3SU1
product lineMetal, shiny, 22 mm
of supplied contact module at position 13SU1400-1AA10-1BA0
of supplied contact module at position 23SU1400-1AA10-1BA0
of supplied contact module at position 33SU1400-1AA10-1BA0
of supplied contact module at position 43SU1400-1AA10-1BA0
of the supplied holder3SU1550-0BA10-0AA0
of the supplied actuator3SU1050-7BF88-0AA0
Enclosure
shape of the enclosure frontround
Actuator
design of the actuating elementwith mechanical interlocking
principle of operation of the actuating elementmomentary contact type
direction of actuationyatay / dikey
product extension optional light sourceYok
color of the actuating elementblack
material of the actuating elementplastic
shape of the actuating elementExtended handle
outer diameter of the actuating element30,5 mm
number of contact modules4
type of unlocking devicepush-to-unlatch mechanism
number of switching positions4
Maximum deflection angle [°]30°
Front ring
product component front ringVar
design of the front ringhigh
material of the front ringMetal, high gloss
color of the front ringsilver
Holder
material of the holderPlastic
General technical data
product function positive openingYok
insulation voltage rated value500 V
degree of pollution3
type of voltage of the operating voltageAC/DC
surge voltage resistance rated value6 kV
protection class IPIP65, IP67
protection class IP of the terminalIP20
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
according to IEC 60068-2-610... 500 Hz: 5 g
operating frequency maximum2.400 1/h
as operating period per direction of actuation typical500.000
electrical endurance (operating cycles) typical10.000.000
electrical endurance (operating cycles) with contactors 3RT1015 to 3RT1026 typical10.000.000
thermal current10 A
reference code according to IEC 81346-2S
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance nameMelamine CAS-Yok. 108-78-1
Net Weight182,5 g
— at 50 Hz rated value5... 500 V
— at 60 Hz rated value5... 500 V
at DC rated value5... 500 V
Power Electronics
contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts4
Connections/ Terminals
type of electrical connection of modules and accessoriesScrew-type terminal
solid with core end processing2x (0,5... 0,75 mm²)
solid without core end processing2x (1,0... 1,5 mm²)
finely stranded with core end processing2x (0,5... 1,5 mm²)
finely stranded without core end processing2x (1,0... 1,5 mm²)
for AWG cables2x (18... 14)
tightening torque of the screws in the bracket1... 1,2 N·m
tightening torque for auxiliary contacts with screw-type terminals0,8... 1 N·m
Safety related data
with low demand rate according to SN 3192020 %
with high demand rate according to SN 3192020 %
B10 value with high demand rate according to SN 31920250.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
IEC 61508
T1 value for proof test interval or service life according to IEC 6150820 a
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)

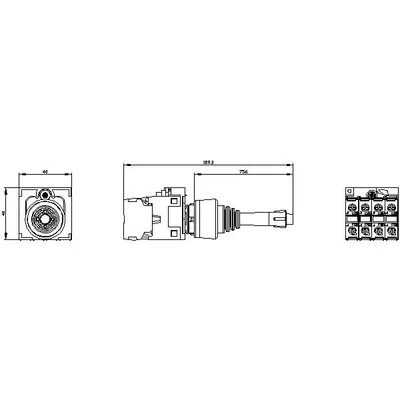

Installation/ mounting/ dimensions
fastening methodfront plate mounting
of modules and accessoriesFront plate mounting
height40 mm
width40 mm
shape of the installation openinground
mounting diameter22,3 mm
positive tolerance of installation diameter0,4 mm
mounting height75,6 mm
installation width30,5 mm
installation depth53,7 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,593 kg
global warming potential [CO2 eq] during manufacturing0,625 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.267 kg
Siemens eco profile (SEP)Siemens EcoTech
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,625 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.267 kg
global warming potential [CO2 eq] / total0,593 kg
Aksesuarlar 6
Siemens 3SU1150-7BF88-1QA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0AM10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AE81-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AE16-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1400-1AA10-1BA0 | Bileşen · Commanding and signaling devices | |
| 3SU1550-0BA10-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1050-7BF88-0AA0 | Bileşen · Commanding and signaling devices |
