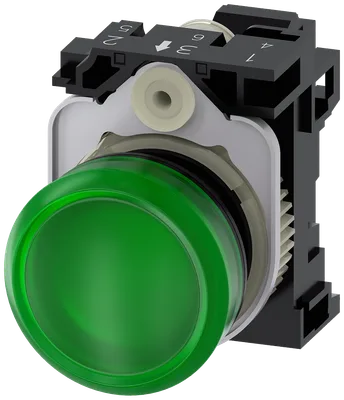

Siemens 3SU1106-6AA40-3AA0-ZY13
Indicator lights, 22 mm, round, plastic, green, lens, smooth, ile holder, LED modül, ile dahili LED 230 V AC, spring-type klemens, ile laser labeling, symbol sayı according to, ISO 7000 veya IEC 60417
product brand nameSIRIUS ACT
product designationIndicator lights
design of the productComplete unit
product type designation3SU1
product linePlastic, black, 22 mm
of supplied LED module3SU1401-1BF40-3AA0
Ürün Hakkında
Indicator lights, 22 mm, round, plastic, green, lens, smooth, ile holder, LED modül, ile dahili LED 230 V AC, spring-type klemens, ile laser labeling, symbol sayı according to, ISO 7000 veya IEC 60417
Siemens 3SU1106-6AA40-3AA0-ZY13
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationIndicator lights
design of the productComplete unit
product type designation3SU1
product linePlastic, black, 22 mm
of supplied LED module3SU1401-1BF40-3AA0
of the supplied holder3SU1500-0AA10-0AA0
of supplied repeater3SU1001-6AA40-0AA0
Enclosure
number of command points1
Actuator
product extension optional light sourceVar
of the actuating elementgreen
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element29,45 mm
marking of the actuating elementCustomized labeling, graphical symbols acc. to ISO7000 ve IEC60417
Front ring
product component front ringYok
Holder
material of the holderPlastic
Display
number of LED modules1
General technical data
product component light sourceVar
insulation voltage rated value320 V
degree of pollution3
type of voltage of the operating voltageAC
surge voltage resistance rated value4 kV
protection class IPIP66, IP67, IP69(IP69K)
protection class IP of the terminalIP20
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
reference code according to IEC 81346-2P
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance nameLead CAS-Yok. 7439-92-1 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5
Net Weight0,037 kg
Besleme gerilimi
type of voltage of the supply voltage of the light sourceAC
at 50 Hz rated value230 V
at 60 Hz rated value230 V
at 60 Hz rated value230 V
relative negative tolerance of the supply voltage20 %
relative positive tolerance of the supply voltage20 %
Control circuit/ Control
inrush current maximum3 A
Connections/ Terminals
type of electrical connectionother
of modules and accessoriesSpring-type terminal
solid without core end processing2x (0,25... 1,5 mm²)
finely stranded with core end processing2x (0,25... 0,75 mm²)
finely stranded without core end processing2x (0,25... 1,5 mm²)
for AWG cables2x (24... 16)
tightening torque of the screws in the bracket1... 1,2 N·m
Lamp
type of light sourceLED
color of the light sourcegreen
light intensity900... 1.800 mcd
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
fastening methodfront plate mounting
of modules and accessoriesFront plate mounting
height40 mm
width30 mm
shape of the installation openinground
mounting diameter22,3 mm
positive tolerance of installation diameter0,4 mm
mounting height11,8 mm
installation width29,5 mm
installation depth49,7 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,787 kg
global warming potential [CO2 eq] during manufacturing0,566 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.015 kg
Siemens eco profile (SEP)Siemens EcoTech
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
