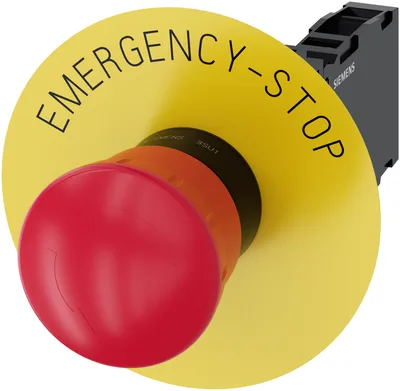

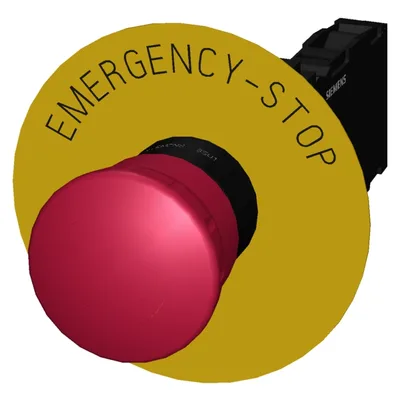

Siemens 3SU1100-1HB20-1FG0

acil durdurma mushroom pushbutton, 22 mm, round, plastic, red, 40 mm, positive latching, acc. to EN ISO 13850, rotate-to-unlatch, ile yellow backing plaka, inscription: acil durdurma, ile holder, 1 NO+1 NC, vidalı klemens

SiemensMFR # 3SU1100-1HB20-1FG0SKU # CEY-8EF3B02EDCBF

product brand nameSIRIUS ACT

product designationEMERGENCY STOP mushroom pushbuttons

design of the productComplete unit

product type designation3SU1

product linePlastic, black, 22 mm

of supplied contact module at position 13SU1400-1AA10-1FA0

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3SU1100-1HB20-1FG0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS ACT

product designationEMERGENCY STOP mushroom pushbuttons

design of the productComplete unit

product type designation3SU1

product linePlastic, black, 22 mm

of supplied contact module at position 13SU1400-1AA10-1FA0

of the supplied holder3SU1500-0AA10-0AA0

of the supplied actuator3SU1000-1HB20-0AA0

of supplied accessory3SU1900-0BC31-0DA0

Enclosure

number of command points1

Actuator

design of the actuating elementpositive latching

principle of operation of the actuating elementlatching

product extension optional light sourceYok

color of the actuating elementred

material of the actuating elementplastic

shape of the actuating elementround

outer diameter of the actuating element40 mm

number of contact modules1

type of unlocking devicerotate-to-unlatch mechanism

Front ring

product component front ringYok

Holder

material of the holderPlastic

Display

number of LED modules0

General technical data

positive openingVar

EMERGENCY OFF functionVar

EMERGENCY STOP functionVar

product component light sourceYok

insulation voltage rated value500 V

degree of pollution3

type of voltage of the operating voltageAC/DC

surge voltage resistance rated value6 kV

protection class IPIP66, IP67, IP69(IP69K)

protection class IP of the terminalIP20, clamping screw tightened

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

operating frequency maximum600 1/h

mechanical service life (operating cycles) typical300.000

electrical endurance (operating cycles) typical300.000

thermal current10 A

reference code according to IEC 81346-2S

continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A

continuous current of the DIAZED fuse link gG10 A

Substance Prohibitance (day/month/year)10/01/2014

Net Weight89,5 g

— at 50 Hz rated value5... 500 V

— at 60 Hz rated value5... 500 V

at DC rated value5... 500 V

Power Electronics

contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Auxiliary circuit

design of the contact of auxiliary contactsSilver alloy

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

Connections/ Terminals

of modules and accessoriesScrew-type terminal

solid with core end processing2x (0,5... 0,75 mm²)

solid without core end processing2x (1,0... 1,5 mm²)

finely stranded with core end processing2x (0,5... 1,5 mm²)

finely stranded without core end processing2x (1,0... 1,5 mm²)

for AWG cables2x (18... 14)

tightening torque of the screws in the bracket1... 1,2 N·m

tightening torque for auxiliary contacts with screw-type terminals0,8... 0,9 N·m

Safety related data

product function suitable for safety functionVar

service life maximum20 a

test wear-related service life necessaryVar

with low demand rate according to SN 3192020 %

with high demand rate per NC contact according to SN 3192020 %

B10 value with high demand rate according to SN 31920100.000

failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2Type A

T1 value for proof test interval or service life according to IEC 6150820 a

Ambient conditions

during operation-25... +70 °C

during storage-40... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)

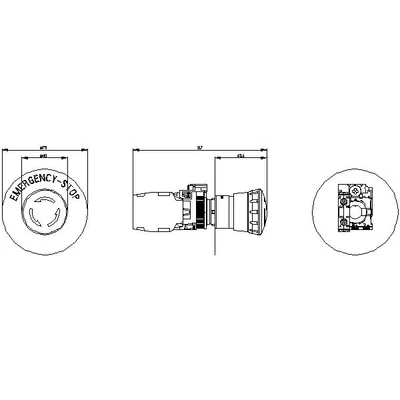

Installation/ mounting/ dimensions

fastening methodfront plate mounting

of modules and accessoriesFront plate mounting

height40 mm

width30 mm

shape of the installation openinground

mounting diameter22,3 mm

positive tolerance of installation diameter0,4 mm

mounting height46,4 mm

installation width75 mm

installation depth70,6 mm

Accessories

number of backing plates1

marking of backing plateEMERGENCY STOP

color of backing plateYellow

Environmental footprint

Environmental Product Declaration(EPD)Var

global warming potential [CO2 eq] total0,787 kg

global warming potential [CO2 eq] during manufacturing0,566 kg

global warming potential [CO2 eq] during operation0,235 kg

global warming potential [CO2 eq] after end of life-0.015 kg

Siemens eco profile (SEP)Siemens EcoTech

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0,566 kg

global warming potential [CO2 eq] / during operation0,235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0,787 kg

Aksesuarlar 5

Siemens 3SU1100-1HB20-1FG0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3SU1900-0DF70-0AA0	Aksesuar · Commanding and signaling devices
3SU1000-1HB20-0AA0	Bileşen · Commanding and signaling devices
3SU1400-1AA10-1FA0	Bileşen · Commanding and signaling devices
3SU1500-0AA10-0AA0	Bileşen · Commanding and signaling devices
3SU1900-0BC31-0DA0	Bileşen · Commanding and signaling devices
