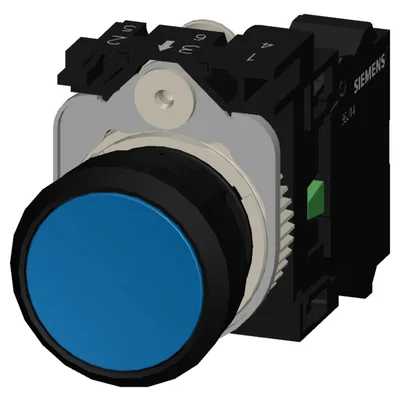

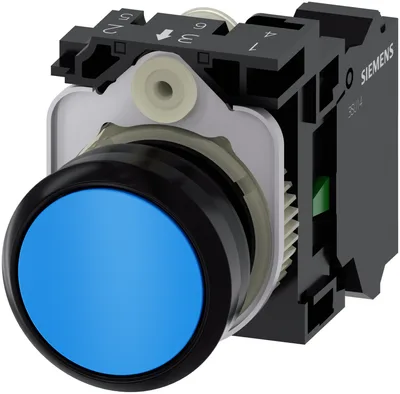

Siemens 3SU1100-0AB50-3BA0
Pushbutton, 22 mm, round, plastic, blue, pushbutton, flat, momentary kontak tip, ile holder 1 NO, Spring-type klemens
product brand nameSIRIUS ACT
product designationPushbuttons
design of the productComplete unit
product type designation3SU1
product linePlastic, black, 22 mm
of supplied contact module at position 13SU1400-1AA10-3BA0
Ürün Hakkında
Pushbutton, 22 mm, round, plastic, blue, pushbutton, flat, momentary kontak tip, ile holder 1 NO, Spring-type klemens
Siemens 3SU1100-0AB50-3BA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationPushbuttons
design of the productComplete unit
product type designation3SU1
product linePlastic, black, 22 mm
of supplied contact module at position 13SU1400-1AA10-3BA0
of the supplied holder3SU1500-0AA10-0AA0
of the supplied actuator3SU1000-0AB50-0AA0
number of command points1
Actuator
design of the actuating elementButton, flat
principle of operation of the actuating elementmomentary contact type
product extension optional light sourceYok
color of the actuating elementblue
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element29,45 mm
number of contact modules1
Front ring
product component front ringVar
design of the front ringStandard
material of the front ringplastic
color of the front ringblack
Holder
material of the holderPlastic
Display
number of LED modules0
General technical data
product function positive openingYok
product component light sourceYok
insulation voltage rated value500 V
degree of pollution3
type of voltage of the operating voltageAC/DC
surge voltage resistance rated value6 kV
protection class IPIP66, IP67, IP69(IP69K)
protection class IP of the terminalIP20
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
operating frequency maximum3.600 1/h
mechanical service life (operating cycles) typical10.000.000
electrical endurance (operating cycles) typical10.000.000
thermal current10 A
reference code according to IEC 81346-2S
continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A
continuous current of the quick DIAZED fuse link10 A
continuous current of the DIAZED fuse link gG10 A
Substance Prohibitance (day/month/year)10/01/2014
Net Weight47,5 g
— at 50 Hz rated value5... 500 V
— at 60 Hz rated value5... 500 V
at DC rated value5... 500 V
Power Electronics
contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
Auxiliary circuit
design of the contact of auxiliary contactsSilver alloy
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts1
Connections/ Terminals
type of electrical connectionspring-loaded terminals
of modules and accessoriesSpring-type terminal
solid without core end processing2x (0,25... 1,5 mm²)
finely stranded with core end processing2x (0,25... 0,75 mm²)
finely stranded without core end processing2x (0,25... 1,5 mm²)
for AWG cables2x (24... 16)
tightening torque of the screws in the bracket1... 1,2 N·m
Safety related data
product function suitable for safety functionVar
test wear-related service life necessaryVar
with high demand rate per NO contact according to SN 3192050 %
B10 value with high demand rate according to SN 3192010.000.000
ISO 13849
device type according to ISO 13849-13
IEC 61508
safety device type according to IEC 61508-2Type A
T1 value for proof test interval or service life according to IEC 6150820 a
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)
Installation/ mounting/ dimensions
fastening methodfront plate mounting
of modules and accessoriesFront plate mounting
height40 mm
width30 mm
shape of the installation openinground
mounting diameter22,3 mm
positive tolerance of installation diameter0,4 mm
mounting height11 mm
installation width29,5 mm
installation depth49,7 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,787 kg
global warming potential [CO2 eq] during manufacturing0,566 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.015 kg
Siemens eco profile (SEP)Siemens EcoTech
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 8
Siemens 3SU1100-0AB50-3BA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0AC81-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0DB70-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AC16-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AN10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AG10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1500-0AA10-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1000-0AB50-0AA0 | Bileşen · Commanding and signaling devices | |
| 3SU1400-1AA10-3BA0 | Bileşen · Commanding and signaling devices |
