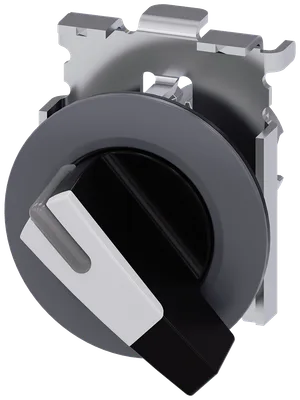

Siemens 3SU1062-2EF60-0AA0
Selector switch, illuminable, 30 mm, round, metal, matte, white, selector switch, long, front ring for flush installation, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h
product brand nameSIRIUS ACT
product designationSelector switches
design of the productActuating/signaling element
product type designation3SU1
product lineMetal, matt, flat, 30 mm
number of command points1
Ürün Hakkında
Selector switch, illuminable, 30 mm, round, metal, matte, white, selector switch, long, front ring for flush installation, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h
Siemens 3SU1062-2EF60-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationSelector switches
design of the productActuating/signaling element
product type designation3SU1
product lineMetal, matt, flat, 30 mm
Enclosure
number of command points1
Actuator
design of the actuating elementselector, long
principle of operation of the actuating elementlatching, 90° (10:30 h/13:30 h)
light sourceVar
contact moduleVar
color of the actuating elementwhite
material of the actuating elementplastic
shape of the actuating elementHandle
outer diameter of the actuating element44,8 mm
number of switching positions2
clockwise90°
Front ring
product component front ringVar
design of the front ringFlat
material of the front ringMetal, matt
color of the front ringsand gray
General technical data
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
operating frequency maximum1.800 1/h
mechanical service life (operating cycles) typical300.000
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance name2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) CAS-Yok. 3147-75-9
Net Weight78,5 g
Safety related data
with low demand rate according to SN 3192020 %
with high demand rate per NC contact according to SN 3192020 %
with high demand rate per NO contact according to SN 3192050 %
B10 value with high demand rate according to SN 31920100.000
failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT
IEC 61508
T1 value for proof test interval or service life according to IEC 6150820 a
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%)
Installation/ mounting/ dimensions
height44,8 mm
width44,8 mm
shape of the installation openinground
mounting diameter30,5 mm
positive tolerance of installation diameter0,5 mm
mounting height22,1 mm
installation width44,8 mm
installation depth32,1 mm
Aksesuarlar 16
Siemens 3SU1062-2EF60-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0AC81-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AD81-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AC16-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AD16-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AN10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AG10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1960-0AH10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1960-0AS10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Zorunlu ek ürün · Commanding and signaling devices | |
| 3SU1400-1AA10-1BA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1400-1AA10-1CA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1401-1BH40-1AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1401-1BB40-1AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1401-1BF40-1AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1401-1BB24-1AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1401-1BF24-1AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
