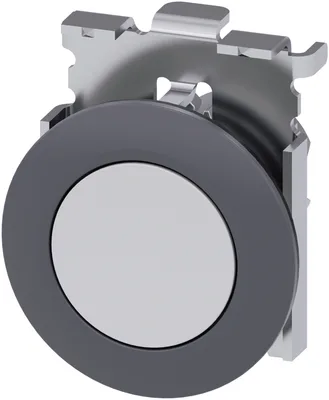

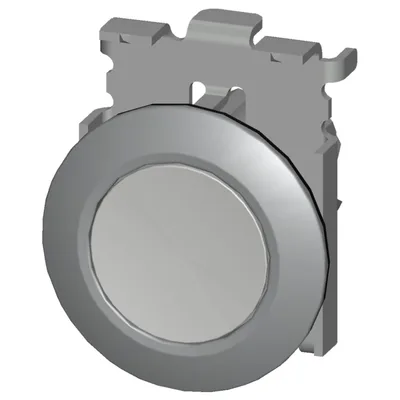

Siemens 3SU1060-0JA60-0AA0
Pushbutton, 30 mm, round, metal, matte, white, front ring for flush installation, latching, Push-to-release mechanism
product brand nameSIRIUS ACT
product designationPushbuttons
design of the productActuating/signaling element
product type designation3SU1
product lineMetal, matt, flat, 30 mm
number of command points1
Ürün Hakkında
Pushbutton, 30 mm, round, metal, matte, white, front ring for flush installation, latching, Push-to-release mechanism
Siemens 3SU1060-0JA60-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationPushbuttons
design of the productActuating/signaling element
product type designation3SU1
product lineMetal, matt, flat, 30 mm
Enclosure
number of command points1
Actuator
design of the actuating elementFlat button
principle of operation of the actuating elementlatching
light sourceYok
contact moduleVar
color of the actuating elementwhite
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element38 mm
type of unlocking devicepush-to-unlatch mechanism
Front ring
product component front ringVar
design of the front ringFlat
material of the front ringMetal, matt
color of the front ringsand gray
General technical data
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
operating frequency maximum1.800 1/h
mechanical service life (operating cycles) typical500.000
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)10/01/2014
Net Weight61,5 g
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%)
Installation/ mounting/ dimensions
height38 mm
width38 mm
shape of the installation openinground
mounting diameter30,5 mm
positive tolerance of installation diameter0,5 mm
mounting height4,2 mm
installation width38 mm
installation depth31,1 mm
Aksesuarlar 11
Siemens 3SU1060-0JA60-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0AC81-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AD81-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AC16-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AD16-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AN10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AG10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1960-0AH10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1960-0AS10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Zorunlu ek ürün · Commanding and signaling devices | |
| 3SU1400-1AA10-1BA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1400-1AA10-1CA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
