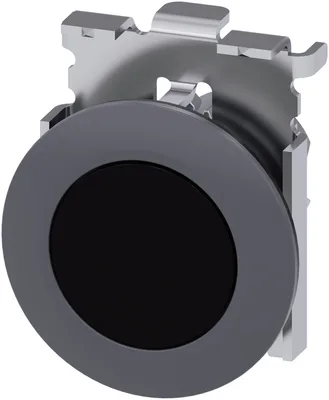

Siemens 3SU1060-0JA10-0AA0-ZY10
Pushbutton, 30 mm, round, Metal, matte, black, ön ring için gömme installation, latching, Push-to-release mechanism, ile laser labeling, upper kutu ve lower kutu, always upper kutu at beginning of hat
product brand nameSIRIUS ACT
product designationPushbuttons
design of the productActuating/signaling element
product type designation3SU1
product lineMetal, matt, flat, 30 mm
number of command points1
Ürün Hakkında
Pushbutton, 30 mm, round, Metal, matte, black, ön ring için gömme installation, latching, Push-to-release mechanism, ile laser labeling, upper kutu ve lower kutu, always upper kutu at beginning of hat
Siemens 3SU1060-0JA10-0AA0-ZY10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationPushbuttons
design of the productActuating/signaling element
product type designation3SU1
product lineMetal, matt, flat, 30 mm
Enclosure
number of command points1
Actuator
design of the actuating elementFlat button
principle of operation of the actuating elementlatching
light sourceYok
contact moduleVar
color of the actuating elementblack
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element38 mm
marking of the actuating elementCustomized labeling, text in lower case/capital letters, all lines start with capital letter
type of unlocking devicepush-to-unlatch mechanism
Front ring
product component front ringVar
design of the front ringFlat
material of the front ringMetal, matt
color of the front ringsand gray
General technical data
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
operating frequency maximum1.800 1/h
mechanical service life (operating cycles) typical500.000
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)10/01/2014
Net Weight0,048 kg
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%)
Installation/ mounting/ dimensions
height38 mm
width38 mm
shape of the installation openinground
mounting diameter30,5 mm
positive tolerance of installation diameter0,5 mm
mounting height4,2 mm
installation width38 mm
installation depth31,1 mm
