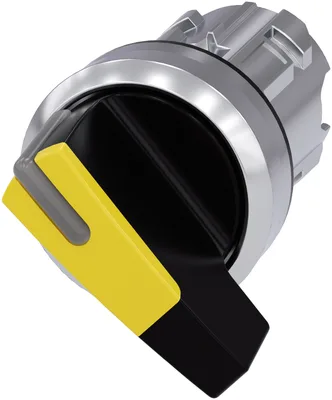

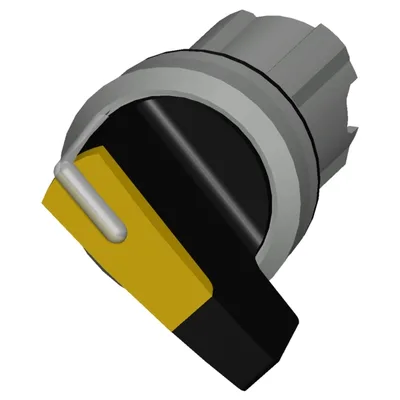

Siemens 3SU1052-2CC30-0AA0
Selector switch, illuminable, 22 mm, round, metal, shiny, yellow, selector switch, long, 2 switch positions O<I, momentary contact type, Actuating angle 45°, 10:30h/12h
product brand nameSIRIUS ACT
product designationSelector switches
design of the productActuating/signaling element
product type designation3SU1
product lineMetal, shiny, 22 mm
number of command points1
Ürün Hakkında
Selector switch, illuminable, 22 mm, round, metal, shiny, yellow, selector switch, long, 2 switch positions O<I, momentary contact type, Actuating angle 45°, 10:30h/12h
Siemens 3SU1052-2CC30-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationSelector switches
design of the productActuating/signaling element
product type designation3SU1
product lineMetal, shiny, 22 mm
Enclosure
number of command points1
Actuator
design of the actuating elementselector, long
principle of operation of the actuating elementmomentary contact, 45° (10:30 h/12 h), return from center to left
light sourceVar
contact moduleVar
color of the actuating elementyellow
material of the actuating elementplastic
shape of the actuating elementHandle
outer diameter of the actuating element44,8 mm
number of switching positions2
clockwise45°
Front ring
product component front ringVar
design of the front ringstandard
material of the front ringMetal, high gloss
color of the front ringsilver
General technical data
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
according to IEC 60068-2-610... 500 Hz: 5 g
operating frequency maximum1.800 1/h
mechanical service life (operating cycles) typical1.000.000
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)10/01/2014
SVHC substance name2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329) CAS-Yok. 3147-75-9
Net Weight49,5 g
Safety related data
with low demand rate according to SN 3192020 %
with high demand rate per NC contact according to SN 3192020 %
with high demand rate per NO contact according to SN 3192050 %
B10 value with high demand rate according to SN 31920500.000
failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT
IEC 61508
T1 value for proof test interval or service life according to IEC 6150820 a
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%)
Installation/ mounting/ dimensions
height44,8 mm
width44,8 mm
shape of the installation openinground
mounting diameter22,3 mm
positive tolerance of installation diameter0,4 mm
mounting height28,8 mm
installation width44,8 mm
installation depth25,4 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,593 kg
global warming potential [CO2 eq] during manufacturing0,625 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.267 kg
Siemens eco profile (SEP)Siemens EcoTech
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,625 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.267 kg
global warming potential [CO2 eq] / total0,593 kg
Aksesuarlar 12
Siemens 3SU1052-2CC30-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0AC81-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AC16-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AN10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AG10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1550-0AA10-0AA0 | Zorunlu ek ürün · Commanding and signaling devices | |
| 3SU1400-1AA10-1BA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1400-1AA10-1CA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1401-1BH30-1AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1401-1BB30-1AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1401-1BF30-1AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1401-1BB24-1AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1401-1BF24-1AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
