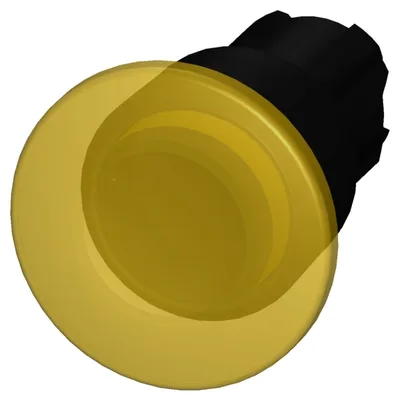

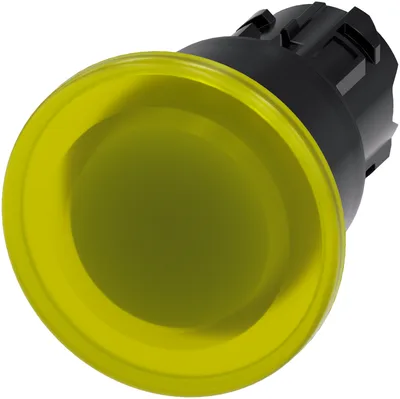

Siemens 3SU1001-1BA30-0AA0
Illuminated mushroom pushbutton, 22 mm, round, plastic, yellow, 40 mm, latching, Pull-to-unlatch mechanism
product brand nameSIRIUS ACT
product designationMushroom pushbuttons
design of the productActuating/signaling element
product type designation3SU1
product linePlastic, black, 22 mm
number of command points1
Ürün Hakkında
Illuminated mushroom pushbutton, 22 mm, round, plastic, yellow, 40 mm, latching, Pull-to-unlatch mechanism
Siemens 3SU1001-1BA30-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationMushroom pushbuttons
design of the productActuating/signaling element
product type designation3SU1
product linePlastic, black, 22 mm
Enclosure
number of command points1
Actuator
design of the actuating elementilluminated
principle of operation of the actuating elementlatching
product extension optional light sourceVar
color of the actuating elementyellow
material of the actuating elementplastic
shape of the actuating elementround
outer diameter of the actuating element40 mm
type of unlocking devicepull-to-unlatch mechanism
number of switching positions2
Front ring
product component front ringVar
design of the front ringStandard
material of the front ringplastic
color of the front ringblack
General technical data
EMERGENCY OFF functionYok
EMERGENCY STOP functionYok
protection class IPIP66, IP67, IP69(IP69K)
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
operating frequency maximum1.800 1/h
mechanical service life (operating cycles) typical500.000
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)10/01/2014
Net Weight0,028 kg
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%)
Installation/ mounting/ dimensions
height40 mm
width40 mm
shape of the installation openinground
mounting diameter22,3 mm
positive tolerance of installation diameter0,4 mm
mounting height27,5 mm
installation width40 mm
installation depth24,4 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,787 kg
global warming potential [CO2 eq] during manufacturing0,566 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.015 kg
Siemens eco profile (SEP)Siemens EcoTech
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 11
Siemens 3SU1001-1BA30-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0AC81-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0DE70-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AC16-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AN10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AG10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1500-0AA10-0AA0 | Zorunlu ek ürün · Commanding and signaling devices | |
| 3SU1400-1AA10-1BA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1400-1AA10-1CA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1401-1BH30-1AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1401-1BB30-1AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1401-1BF30-1AA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
