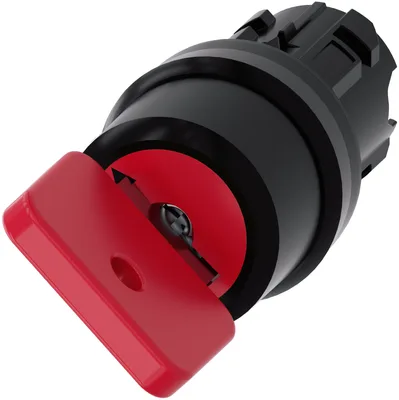

Siemens 3SU1000-4FC01-0AA0
key-operated switch O.M.R, 22 mm, round, plastic, lock number 73037, red, with 2 keys, 2 switch positions O<I, momentary contact type, actuating angle 45°, 10:30h/12h, key removal O
product brand nameSIRIUS ACT
product designationKey-operated switches
design of the productActuating/signaling element
product type designation3SU1
product linePlastic, black, 22 mm
product extension optional light sourceYok
Ürün Hakkında
key-operated switch O.M.R, 22 mm, round, plastic, lock number 73037, red, with 2 keys, 2 switch positions O<I, momentary contact type, actuating angle 45°, 10:30h/12h, key removal O
Siemens 3SU1000-4FC01-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS ACT
product designationKey-operated switches
design of the productActuating/signaling element
product type designation3SU1
product linePlastic, black, 22 mm
manufacturer's article number of included key3SU1950-0FK20-0AA0
Actuator
principle of operation of the actuating elementmomentary contact, 45° (10:30 h/12 h), return from center to left
product extension optional light sourceYok
of the actuating elementred
material of the actuating elementmetal
shape of the actuating elementKey
outer diameter of the actuating element29,5 mm
number of switching positions2
switch position for key distractionO
clockwise45°
lock makeO.M.R.
key number73037
Front ring
product component front ringVar
design of the front ringStandard
material of the front ringplastic
color of the front ringblack
General technical data
protection class IPIP66, IP67, IP69(IP69K)
protection class IP of the terminalIP20
degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13
according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms
for railway applications according to EN 61373Category 1, Class B
according to IEC 60068-2-610... 500 Hz: 5 g
for railway applications according to EN 61373Category 1, Class B
operating frequency maximum1.800 1/h
mechanical service life (operating cycles) typical1.000.000
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)10/01/2014
Net Weight85,5 g
Ambient conditions
during operation-25... +70 °C
during storage-40... +80 °C
environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%)
Installation/ mounting/ dimensions
height29,5 mm
width29,5 mm
shape of the installation openinground
mounting diameter22,3 mm
positive tolerance of installation diameter0,4 mm
mounting height51,7 mm
installation width29,5 mm
installation depth25,4 mm
Environmental footprint
Environmental Product Declaration(EPD)Var
global warming potential [CO2 eq] total0,787 kg
global warming potential [CO2 eq] during manufacturing0,566 kg
global warming potential [CO2 eq] during operation0,235 kg
global warming potential [CO2 eq] after end of life-0.015 kg
Siemens eco profile (SEP)Siemens EcoTech
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,566 kg
global warming potential [CO2 eq] / during operation0,235 kg
global warming potential [CO2 eq] / after end of life-0.0145 kg
global warming potential [CO2 eq] / total0,787 kg
Aksesuarlar 9
Siemens 3SU1000-4FC01-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SU1900-0AC81-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1950-0FK20-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AC16-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0EB10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AN10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1900-0AG10-0AA0 | Aksesuar · Commanding and signaling devices | |
| 3SU1500-0AA10-0AA0 | Zorunlu ek ürün · Commanding and signaling devices | |
| 3SU1400-1AA10-1BA0 | Seçmeli zorunlu ürün · Commanding and signaling devices | |
| 3SU1400-1AA10-1CA0 | Seçmeli zorunlu ürün · Commanding and signaling devices |
