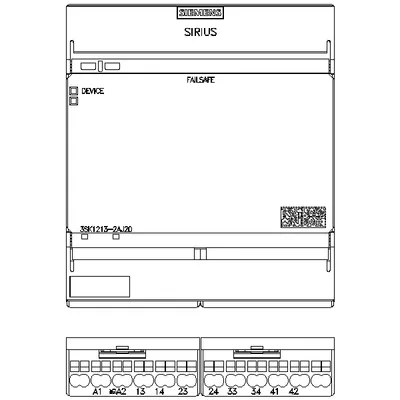

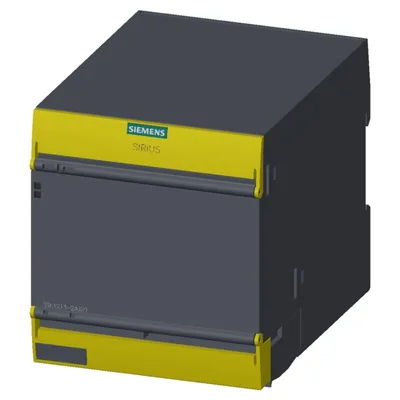

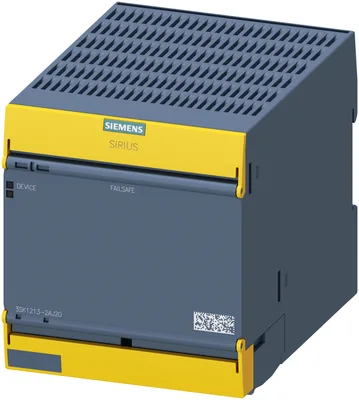

Siemens 3SK1213-2AJ20
SIRIUS safety relay Output expansion 3RO Power, with Relay enabling circuits 3 NO contacts plus Relay signaling circuit 1 NC contact Us = 115 V AC Spring-type terminal (push-in)
product brand nameSIRIUS
product categorySafety relays
product designationOutput expansion
design of the productRelay enabling circuits
product type designation3SK1
safety-related circuitsVar
Ürün Hakkında
SIRIUS safety relay Output expansion 3RO Power, with Relay enabling circuits 3 NO contacts plus Relay signaling circuit 1 NC contact Us = 115 V AC Spring-type terminal (push-in)
Siemens 3SK1213-2AJ20
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categorySafety relays
product designationOutput expansion
design of the productRelay enabling circuits
product type designation3SK1
Product Function
safety-related circuitsVar
General technical data
certificate of suitability UL approvalVar
product feature protective coating on printed-circuit boardYok
power loss [W] maximum4 W
insulation voltage rated value300 V
degree of pollution3
overvoltage category3
surge voltage resistance rated value4.000 V
protection class IP of the enclosureIP20
shock resistance5 g / 10 ms
vibration resistance according to IEC 60068-2-65... 500 Hz: 0,75 mm
operating frequency maximum360 1/h
reference code according to IEC 81346-2F
Substance Prohibitance (day/month/year)11/05/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight0,93 kg
Ambient conditions
installation altitude at height above sea level maximum4.000 m
noteDerating, see Product Notification 109792701
during operation-25... +60 °C
during storage-40... +80 °C
relative humidity during operation10... 95 %
air pressure according to SN 31205900... 1.060 hPa
Electromagnetic compatibility
installation environment regarding EMCThis product is suitable for Class B environments ve can also be used in domestic environments.
EMC emitted interferenceIEC 60947-5-1, Class B
Safety related data
product function suitable for safety functionVar
safe stateSafety outputs switched off
test wear-related service life necessaryVar
function test interval maximum1 a
stop category according to IEC 60204-10
proportion of dangerous failures with low demand rate according to SN 3192040 %
failure rate [FIT] with low demand rate according to SN 31920100 FIT
IEC 62061
SIL Claim Limit (subsystem) according to EN 620613
according to IEC 62061SIL 3
1E-9 1/h
0,000000001 1/h
ISO 13849
category according to EN ISO 13849-14
according to ISO 13849-1PL e
according to ISO 13849-14
device type according to ISO 13849-11
overdimensioning according to ISO 13849-2 necessaryYok
IEC 61508
according to IEC 615083
safety device type according to IEC 61508-2Type A
PFHD with high demand rate according to IEC 615081E-9 1/h
PFHD with high demand rate according to IEC 615080,000000001 1/h
1E-6
0,000001
Safe failure fraction (SFF)99 %
according to IEC 615081
of service life according to IEC 6150820 a
for proof test interval or service life according to IEC 6150820 a
Electrical Safety
touch protection against electrical shockfinger-safe
Short-circuit protection
design of the fuse link for short-circuit protection of the NO contacts of the relay outputs requiredgL/gG: 16 A veya MCB type A: 6 A veya MCB type B: 4 A veya MCB type C: 4 A
Inputs
feedback inputYok
Outputs
— for signaling function delayed switching0
— safety-related instantaneous contact0
— safety-related delayed switching0
— for signaling function instantaneous contact0
— for signaling function delayed switching0
— safety-related instantaneous contact3
— safety-related delayed switching0
mechanical service life (operating cycles) typical10.000.000
thermal current of the switching element with contacts maximum10 A
— delayed switching0
at 24 V6 A
at 115 V1,1 A
at 230 V0,55 A
at 24 V10 A
at 115 V10 A
at 230 V10 A
total current maximum30 A
operational current at 17 V minimum5 mA
Times
typical10 ms
at AC maximum15 ms
typical10 ms
maximum15 ms
typical15 ms
maximum15 ms
recovery time after power failure typical0 s
Control circuit/ Control
type of voltage of the control supply voltageAC
at 50 Hz rated value115 V
at 60 Hz rated value115 V
1 rated value50 Hz
2 rated value60 Hz
at 50 Hz0,85... 1,1
at 60 Hz0,85... 1,1
at AC maximum15 ms
OFF-delay time maximum15 ms

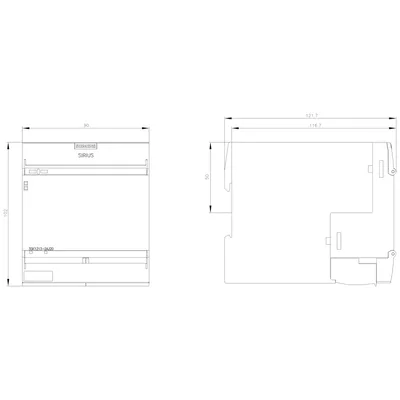

Installation/ mounting/ dimensions
mounting positionon yatay standard DIN rail
fastening methodscrew ve snap-on mounting
height100 mm
width90 mm
depth121,6 mm
with side-by-side mounting at the side0 mm
for grounded parts at the side5 mm
Connections/ Terminals
type of electrical connectionspring-loaded terminal (push-in)
solid1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)
finely stranded with core end processing1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)
finely stranded without core end processing1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid1x (20... 16), 2x (20... 16)
for AWG cables stranded1x (20... 16), 2x (20... 16)
type of electrical connection plug-in socketYok
Aksesuarlar 6
Siemens 3SK1213-2AJ20 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RA2908-1A | Aksesuar · Miscellaneous accessories · screwdrivers | |
| 3ZY1311-0AA00 | Aksesuar · Further accessories | |
| 3ZY1212-2AB00 | Aksesuar · Device connector | |
| 3ZY1440-1AA00 | Aksesuar · Further accessories | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3ZY1321-2AA00 | Aksesuar · Further accessories |
