Siemens 3SK1111-1AB30 için nasıl fiyat teklifi alabilirim?

Siemens 3SK1111-1AB30 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-937FC780BD28 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3SK1111-1AB30 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3SK1111-1AB30 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3SK1111-1AB30 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

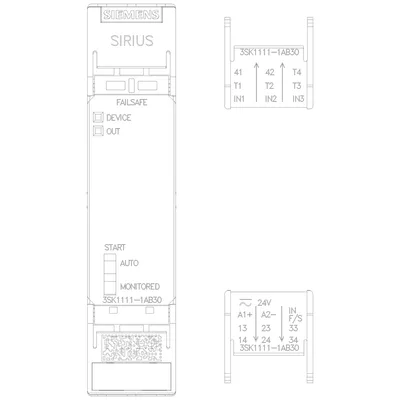

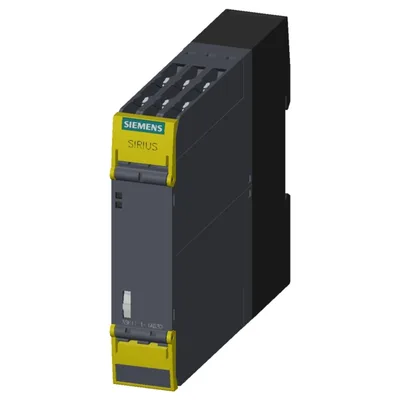

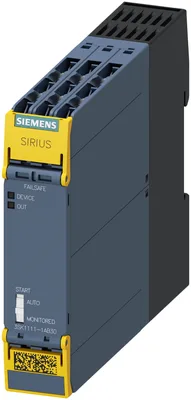

Siemens 3SK1111-1AB30

SIRIUS safety röle temel ünite standart series röle enabling circuits 3 NO contacts plus röle sinyalizasyon circuit 1 NC kontak Us = 24 V AC/DC vidalı klemens

SiemensMFR # 3SK1111-1AB30SKU # CEY-937FC780BD28

product brand nameSIRIUS

product categorySafety relays

product designationsafety relays

design of the productRelay enabling circuits

product type designation3SK1

product lineStandard basic unit

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SIRIUS safety röle temel ünite standart series röle enabling circuits 3 NO contacts plus röle sinyalizasyon circuit 1 NC kontak Us = 24 V AC/DC vidalı klemens

Siemens 3SK1111-1AB30

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product categorySafety relays

product designationsafety relays

design of the productRelay enabling circuits

product type designation3SK1

product lineStandard basic unit

Product Function

product function parameterizablesensor floating / sensor non-floating, monitored start-up / automatic start

automatic startVar

light barrier monitoringVar

protective door monitoringVar

magnetically operated switch monitoring NC-NOYok

magnetically operated switch monitoring NC-NCVar

laser scanner monitoringVar

light array monitoringVar

EMERGENCY OFF functionVar

monitored start-upVar

pressure-sensitive mat monitoringYok

product feature cross-circuit-proofVar

suitability for interaction press controlYok

suitability for operation device connector 3ZY12Yok

monitoring of floating sensorsVar

monitoring of non-floating sensorsVar

position switch monitoringVar

EMERGENCY-OFF circuit monitoringVar

opto-electronic protection device monitoringVar

magnetically operated switch monitoringVar

safety-related circuitsVar

General technical data

certificate of suitability UL approvalVar

product feature protective coating on printed-circuit boardYok

power loss [W] maximum2 W

insulation voltage rated value300 V

degree of pollution3

overvoltage category3

surge voltage resistance rated value4.000 V

protection class IP of the enclosureIP20

shock resistance10 g / 11 ms

vibration resistance according to IEC 60068-2-65... 500 Hz: 0,75 mm

operating frequency maximum360 1/h

reference code according to IEC 81346-2F

Substance Prohibitance (day/month/year)11/05/2012

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-Yok. 80-05-7

Net Weight0,226 kg

Ambient conditions

installation altitude at height above sea level maximum4.000 m

noteDerating, see Product Notification 109792701

during operation-25... +60 °C

during storage-40... +80 °C

relative humidity during operation10... 95 %

air pressure according to SN 31205900... 1.060 hPa

Electromagnetic compatibility

installation environment regarding EMCThis product is suitable for Class B environments ve can also be used in domestic environments.

EMC emitted interferenceIEC 60947-5-1, Class B

Safety related data

product function suitable for safety functionVar

safe stateSafety outputs switched off

test wear-related service life necessaryVar

function test interval maximum1 a

stop category according to IEC 60204-10

IEC 62061

SIL Claim Limit (subsystem) according to EN 620613

according to IEC 62061SIL 3

at single-channel evaluation according to IEC 620611

at 2-channel evaluation according to IEC 620613

PFHD with high demand rate according to IEC 620610,0000000017

ISO 13849

category according to EN ISO 13849-14

according to ISO 13849-1PL e

at single-channel evaluation according to ISO 13849-1c

at 2-channel evaluation according to ISO 13849-1e

according to ISO 13849-14

at 2-channel evaluation according to ISO 13849-14

overdimensioning according to ISO 13849-2 necessaryYok

IEC 61508

according to IEC 615083

at single-channel evaluation according to IEC 615081

at 2-channel evaluation according to IEC 615083

safety device type according to IEC 61508-2Type A

PFHD with high demand rate according to IEC 615080,0000000017

PFDavg with low demand rate according to IEC 615080,000001

Safe failure fraction (SFF)99 %

according to IEC 615081

at single-channel evaluation according to IEC 615080

at 2-channel evaluation according to IEC 615081

of service life according to IEC 6150820 a

for proof test interval or service life according to IEC 6150820 a

Electrical Safety

touch protection against electrical shockfinger-safe

Short-circuit protection

for short-circuit protection of the NO contacts of the relay outputs requiredgL/gG: 6A veya circuit breaker type A: 3A veya circuit breaker type B: 2A veya circuit breaker type C: 1A

for short circuit protection of the NC contacts of the relay outputs requiredDiazed veya Neozed fuses, operating class gL/gG: 6 A veya MCB type A: 2 A veya MCB type B: 2 A veya MCB type C: 1 A

Inputs

cascading input/functional switchingYok

feedback inputVar

start inputVar

pulse duration of the sensor input minimum150 ms

number of sensor inputs 1-channel or 2-channel1

Outputs

— for signaling function instantaneous contact1

— safety-related instantaneous contact3

— safety-related delayed switching0

mechanical service life (operating cycles) typical10.000.000

thermal current of the switching element with contacts maximum5 A

at 24 V5 A

at 115 V0,2 A

at 230 V0,1 A

at 115 V5 A

at 230 V5 A

at 24 V1 A

at 115 V0,2 A

at 230 V0,1 A

at 24 V2 A

at 115 V1,5 A

at 230 V1,5 A

total current maximum12 A

operational current at 17 V minimum5 mA

Times

typical200 ms

at DC maximum320 ms

at AC maximum320 ms

typical200 ms

maximum320 ms

typical15 ms

maximum20 ms

backslide delay time after opening of the safety circuits typical10 ms

typical65 ms

maximum75 ms

recovery time after opening of the safety circuits typical10 ms

recovery time after power failure typical0,09 s

of the ON pushbutton input minimum0,015 s

Control circuit/ Control

type of voltage of the control supply voltageAC/DC

at 50 Hz rated value24 V

at 60 Hz rated value24 V

1 rated value50 Hz

2 rated value60 Hz

control supply voltage at DC rated value24 V

initial value0,85

full-scale value1,2

at 50 Hz0,85... 1,1

at 60 Hz0,85... 1,1

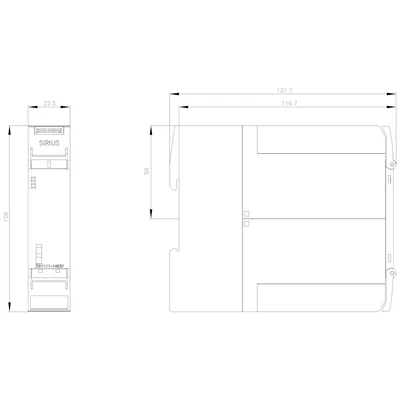

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew ve snap-on mounting

height100 mm

width22,5 mm

depth121,6 mm

for grounded parts at the side5 mm

Connections/ Terminals

type of electrical connectionscrew terminal

for total of all sensor circuits with Cu 1.5 mm² and 150 nF/km maximum2.000 m

solid1x (0,5... 2,5 mm²), 2x (1,0... 1,5 mm²)

finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,0 mm²)

for AWG cables solid1x (20... 14), 2x (18... 16)

for AWG cables stranded1x (20... 16), 2x (20... 16)

type of electrical connection plug-in socketYok

Aksesuarlar 15

Siemens 3SK1111-1AB30 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3SE5000-0AV05	Seçmeli zorunlu ürün
3SE5000-0AW21	Seçmeli zorunlu ürün
3SE5000-0AV07-1AK2	Seçmeli zorunlu ürün
3SE5000-0AV05-1AA6	Seçmeli zorunlu ürün
3SE5000-0AV07	Seçmeli zorunlu ürün
3SE5000-0AV06	Seçmeli zorunlu ürün
3SE5000-0AV04	Seçmeli zorunlu ürün
3SE5000-0AW52	Seçmeli zorunlu ürün
3SE5000-0AV01-1AL7	Seçmeli zorunlu ürün
3SE5000-0AW51	Seçmeli zorunlu ürün
3SE5000-0AV03	Seçmeli zorunlu ürün
3SE5000-0AV02	Seçmeli zorunlu ürün
3SE5000-0AV01	Seçmeli zorunlu ürün
3SE5000-0AW53	Seçmeli zorunlu ürün
3SE5000-0AV05-1AN3	Seçmeli zorunlu ürün
