Detayları Gör
Siemens
3MV8100-0MB00
MFR #3MV8100-0MB00
SKU #YLSTQVYRHTPPWXE
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

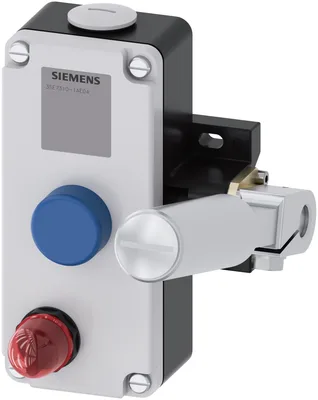

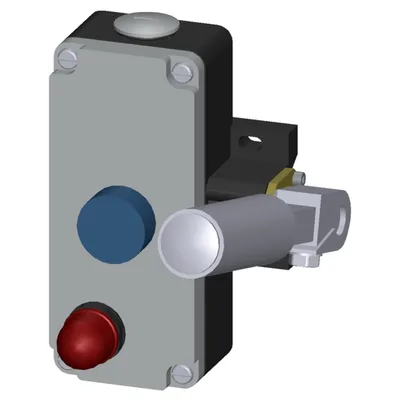

Siemens 3SE7310-1AE04
Conveyor belt unbalance tracker Metal muhafaza, 2 x M25 x 1,5 2 NO+2 NC, ile latching According to EN ISO 13850 Pushbutton açtırma ile LED lamba 24 V DC, red
product brand nameSIRIUS
product designationconveyor belt unbalance device
product type designation3SE7
product function EMERGENCY STOP functionYok
product component light sourceVar
insulation voltage rated value400 V
Ürün Hakkında
Conveyor belt unbalance tracker Metal muhafaza, 2 x M25 x 1,5 2 NO+2 NC, ile latching According to EN ISO 13850 Pushbutton açtırma ile LED lamba 24 V DC, red
Siemens 3SE7310-1AE04
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationconveyor belt unbalance device
product type designation3SE7
General technical data
product function EMERGENCY STOP functionYok
product component light sourceVar
insulation voltage rated value400 V
degree of pollutionclass 3
surge voltage resistance rated value6 kV
protection class IPIP65
mechanical service life (operating cycles) typical100.000
thermal current6 A
reference code according to IEC 81346-2S
continuous current of the DIAZED fuse link gG6 A
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameLead CAS-Yok. 7439-92-1
Net Weight2,028 kg
Ambient conditions
ambient temperature during operation-25... +70 °C
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts2
at 240 V rated value6 A
at 400 V rated value6 A
at 24 V rated value3 A
at 250 V rated value0,27 A
Enclosure
material of the enclosuremetal
material of the enclosure coverMetal
product component EMERGENCY STOP deviceYok
of the enclosureblack
of the enclosure top partgrey
coating of the enclosurepainted
Display
product function status displayYok
Lamp
color of the light sourcered

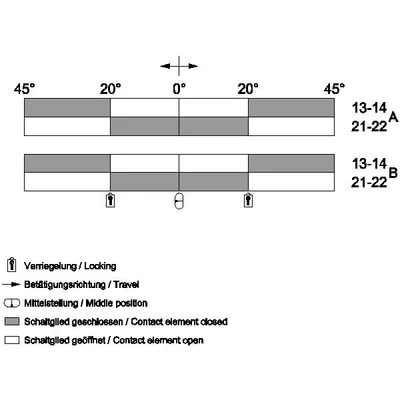

circuit principleJump function
material of the contactSilver
number of switching contacts safety-related2
cable entry type2x M25 x 1,5
Installation/ mounting/ dimensions
fastening methodscrew fixing
height160 mm
width135 mm
depth206 mm
Connections/ Terminals
type of electrical connectionscrew terminal
solid2x (0,5... 2,5 mm²)
finely stranded with core end processing2x (0,5... 2,5 mm²)
for AWG cables solid2x (20... 14)
for AWG cables stranded2x (20... 14)
Besleme gerilimi
type of voltage of the supply voltage of the light sourceDC
supply voltage 1 of the light source at DC rated value24 V
relative negative tolerance of the supply voltage-15 %
relative positive tolerance of the supply voltage10 %
Safety related data
proportion of dangerous failures with high demand rate according to SN 3192050 %
B10 value with high demand rate according to SN 31920100.000
