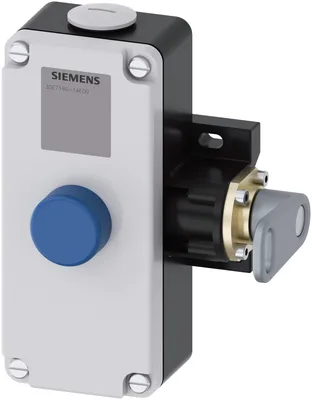

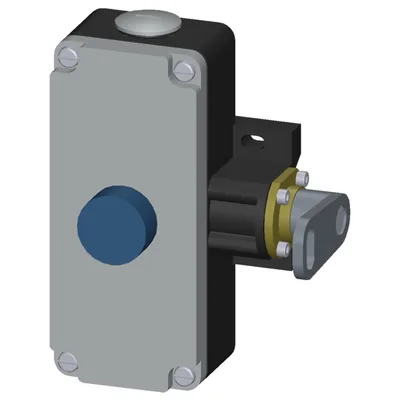

Siemens 3SE7160-1AE00
Cable-operated switch and lever Metal enclosure, 2 x M25 x 1.5; 2 NO+2 NC, latching EN ISO 13850 and pushbutton release, 2-sided operation for wire lengths up to 2 x 100 m
product brand nameSIRIUS
product designationcable-operated switch
product type designation3SE7
product function EMERGENCY STOP functionVar
product component light sourceYok
insulation voltage rated value400 V
Ürün Hakkında
Cable-operated switch and lever Metal enclosure, 2 x M25 x 1.5; 2 NO+2 NC, latching EN ISO 13850 and pushbutton release, 2-sided operation for wire lengths up to 2 x 100 m
Siemens 3SE7160-1AE00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationcable-operated switch
product type designation3SE7
General technical data
product function EMERGENCY STOP functionVar
product component light sourceYok
insulation voltage rated value400 V
degree of pollutionclass 3
surge voltage resistance rated value6 kV
protection class IPIP65
mechanical service life (operating cycles) typical100.000
thermal current6 A
reference code according to IEC 81346-2S
continuous current of the DIAZED fuse link gG6 A
Substance Prohibitance (day/month/year)07/01/2006
SVHC substance nameLead CAS-Yok. 7439-92-1
Net Weight1,218 kg
Ambient conditions
ambient temperature during operation-25... +70 °C
number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts2
at 240 V rated value6 A
at 400 V rated value6 A
at 24 V rated value3 A
at 250 V rated value0,27 A
Enclosure
material of the enclosuremetal
material of the enclosure coverMetal
product component EMERGENCY STOP deviceYok
of the enclosureblack
of the enclosure top partgrey
coating of the enclosurepainted
Display
product function status displayYok

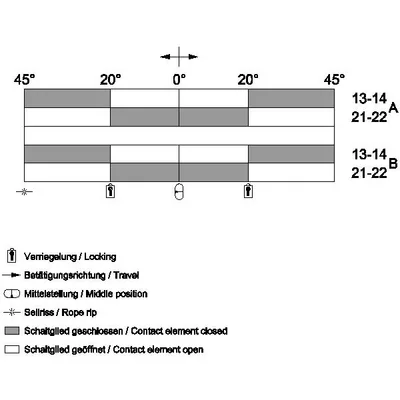

circuit principleJump function
material of the contactSilver
number of switching contacts safety-related2
cable entry type2x M25 x 1,5
Installation/ mounting/ dimensions
fastening methodscrew fixing
height160 mm
width127 mm
depth77 mm
Connections/ Terminals
type of electrical connectionscrew terminal
solid2x (0,5... 2,5 mm²)
finely stranded with core end processing2x (0,5... 2,5 mm²)
for AWG cables solid2x (20... 14)
for AWG cables stranded2x (20... 14)
Safety related data
proportion of dangerous failures with high demand rate according to SN 3192050 %
B10 value with high demand rate according to SN 31920100.000
Aksesuarlar 9
Siemens 3SE7160-1AE00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SE7921-1AA | Aksesuar · Miscellaneous accessories · fixing elements | |
| 3SX3235 | Aksesuar · Miscellaneous accessories · LEDs | |
| 3SE7950-1AB | Aksesuar · Miscellaneous accessories · turnbuckles | |
| 3SE7921-1AC | Aksesuar · Miscellaneous accessories · rollers | |
| 3SE7941-1AC | Seçmeli zorunlu ürün · Miscellaneous accessories · cable clamps | |
| 3SE7930-1AD | Seçmeli zorunlu ürün · Miscellaneous accessories · cable eyes | |
| 3SE7920-1AB | Seçmeli zorunlu ürün · Miscellaneous accessories · bolts | |
| 3SE7931-1AD | Seçmeli zorunlu ürün · Miscellaneous accessories · springs | |
| 3SE7910-3AH | Seçmeli zorunlu ürün · Miscellaneous accessories · steel cables |
