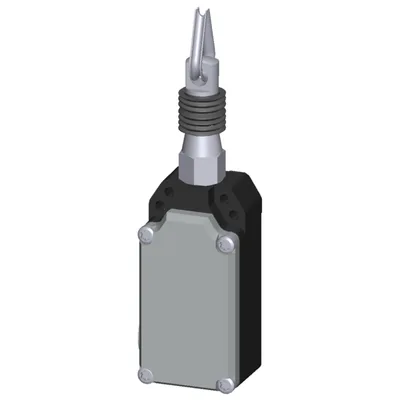

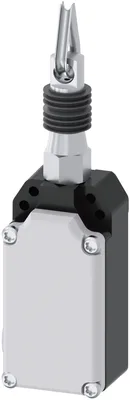

Siemens 3SE7120-2DD01
cable-operated switch metal enclosure, 2x M20 x1.5; 1 NO+1 NC, without latching, for cable lengths up to 5 m, only Bowden cable function, 55 N spring, maximum actuating force 80 N
product brand nameSIRIUS
product designationcable-operated switch
product type designation3SE7
product function EMERGENCY STOP functionYok
product component light sourceYok
insulation voltage rated value400 V
Ürün Hakkında
cable-operated switch metal enclosure, 2x M20 x1.5; 1 NO+1 NC, without latching, for cable lengths up to 5 m, only Bowden cable function, 55 N spring, maximum actuating force 80 N
Siemens 3SE7120-2DD01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationcable-operated switch
product type designation3SE7
General technical data
product function EMERGENCY STOP functionYok
product component light sourceYok
insulation voltage rated value400 V
degree of pollutionclass 3
surge voltage resistance rated value6 kV
protection class IPIP65
mechanical service life (operating cycles) typical1.000.000
thermal current6 A
reference code according to IEC 81346-2S
continuous current of the DIAZED fuse link gG6 A
Substance Prohibitance (day/month/year)07/01/2006
Net Weight427 g
Ambient conditions
ambient temperature during operation-25... +70 °C
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
at 240 V rated value6 A
at 400 V rated value6 A
at 24 V rated value3 A
at 250 V rated value0,27 A
Enclosure
material of the enclosuremetal
material of the enclosure coverPlastic
product component EMERGENCY STOP deviceYok
of the enclosureblack
of the enclosure top partgrey
coating of the enclosurepainted
Display
product function status displayYok

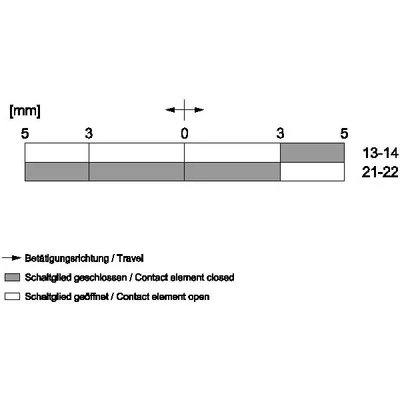

circuit principleJump function
material of the contactSilver
number of switching contacts safety-related1
cable entry type1x M20 x 1,5

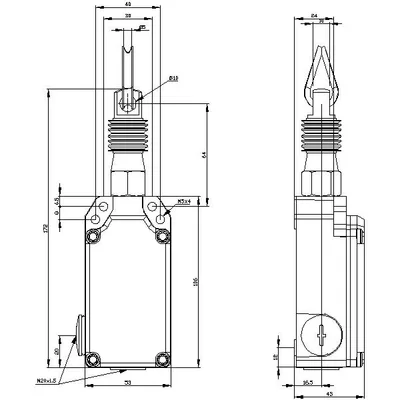

Installation/ mounting/ dimensions
fastening methodscrew fixing
height172 mm
width53 mm
depth43 mm
Connections/ Terminals
type of electrical connectionscrew terminal
solid2x (0,5... 2,5 mm²)
finely stranded with core end processing2x (0,5... 2,5 mm²)
for AWG cables solid2x (20... 14)
for AWG cables stranded2x (20... 14)
Safety related data
proportion of dangerous failures with high demand rate according to SN 3192050 %
B10 value with high demand rate according to SN 31920100.000
Aksesuarlar 8
Siemens 3SE7120-2DD01 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SE7921-1AA | Aksesuar · Miscellaneous accessories · fixing elements | |
| 3SE7921-1AC | Aksesuar · Miscellaneous accessories · rollers | |
| 3SE7950-1AB | Aksesuar · Miscellaneous accessories · turnbuckles | |
| 3SX3235 | Aksesuar · Miscellaneous accessories · LEDs | |
| 3SE7910-3AA | Seçmeli zorunlu ürün · Miscellaneous accessories · steel cables | |
| 3SE7920-1AB | Seçmeli zorunlu ürün · Miscellaneous accessories · bolts | |
| 3SE7930-1AD | Seçmeli zorunlu ürün · Miscellaneous accessories · cable eyes | |
| 3SE7941-1AC | Seçmeli zorunlu ürün · Miscellaneous accessories · cable clamps |
