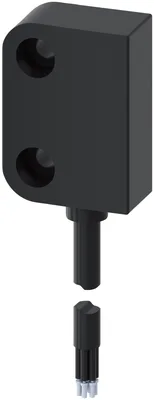

Siemens 3SE6627-3CA04
magnetically operated anahtar kontak block rectangular küçük 26 x 36 mm, için right-hinged door, contacts: safety contacts 2 NC, sinyalizasyon kontak 1 NC, ile 3 m bağlantı kablo olmadan LED, the matching solenoid 3SE6714-3CA veya ofset by 90° 3SE6724-3CA
product brand nameSIRIUS
product designationMagnetically operated switch
design of the productRectangular sensor unit
product type designation3SE66
positive openingYok
control function for downstream devicesYok
Ürün Hakkında
magnetically operated anahtar kontak block rectangular küçük 26 x 36 mm, için right-hinged door, contacts: safety contacts 2 NC, sinyalizasyon kontak 1 NC, ile 3 m bağlantı kablo olmadan LED, the matching solenoid 3SE6714-3CA veya ofset by 90° 3SE6724-3CA
Siemens 3SE6627-3CA04
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMagnetically operated switch
design of the productRectangular sensor unit
product type designation3SE66
suitability for use safety-related circuitsVar
General technical data
positive openingYok
control function for downstream devicesYok
cross-circuit/short-circuit recognitionVar
type of voltage of the operating voltageDC
protection class IPIP67
shock resistance according to IEC 60068-2-27Sinusoidal half-wave 30 g / 11 ms
vibration resistance according to IEC 60068-2-610... 55 Hz: 1 mm
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)07/01/2006
Net Weight210 g
height of the sensor36 mm
length of the sensor13 mm
width of the sensor26 mm
material of the active sensor areaPlastic, glass-fiber reinforced thermoplastic
Ambient conditions
ambient temperature during operation-25... +70 °C
Control circuit/ Control
type of voltageDC
operating voltage rated value75 V
operational current rated value400 mA
operating power rated value10 W
number of NC contacts for auxiliary contacts3
number of NC contacts safety-related2
number of NO contacts for auxiliary contacts0
number of NO contacts safety-related0
Enclosure
material of the enclosurePlastic, glass-fiber reinforced thermoplastic
opening direction of the doorright
material of cable sheathPVC
Actuator
design of the actuating elementmagnet
Display
evaluation unit requiredyes
Contact
switching frequency5 Hz
assured operating distance OFF15 mm
assured operating distance ON5 mm
design of the switching functionNC contact
number of switching contacts for signaling function1
safety-related0
Installation/ mounting/ dimensions
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectioncable
wire length3 m
Inputs/ Outputs
for signaling function0
safety-related0
— for signaling function instantaneous contact1
— safety-related instantaneous contact2
as NO contact safety-related instantaneous contact0
Safety related data
with low demand rate according to SN 3192050 %
with high demand rate according to SN 3192050 %
B10 value with high demand rate according to SN 3192012.500.000
ISO 13849
performance level (PL) according to EN ISO 13849-1e
IEC 61508
Safety Integrity Level (SIL) according to IEC 615083
T1 value for proof test interval or service life according to IEC 6150820 a
Aksesuarlar 1
Siemens 3SE6627-3CA04 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SX5600-2GA01 | Aksesuar |
