Siemens 3SE6606-2BA04

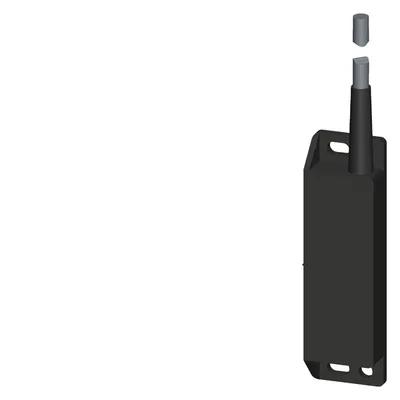

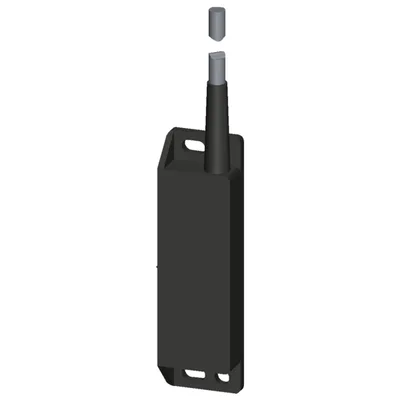

magnetically operated switch contact block 25 x 88 mm, 1 NO+2 NC with 3 m connection cable LIYY, 6 x 0.25 mm2 required solenoid 3SE6704-2BA
product brand nameSIRIUS
product designationMagnetically operated switch
design of the productRectangular sensor unit
product type designation3SE66
positive openingYok
cross-circuit/short-circuit recognitionVar
Ürün Hakkında
magnetically operated switch contact block 25 x 88 mm, 1 NO+2 NC with 3 m connection cable LIYY, 6 x 0.25 mm2 required solenoid 3SE6704-2BA
Siemens 3SE6606-2BA04
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMagnetically operated switch
design of the productRectangular sensor unit
product type designation3SE66
suitability for use safety-related circuitsVar
General technical data
positive openingYok
cross-circuit/short-circuit recognitionVar
type of voltage of the operating voltageAC/DC
protection class IPIP67
shock resistance according to IEC 60068-2-27Sinusoidal half-wave 30 g / 11 ms
vibration resistance according to IEC 60068-2-610... 55 Hz: 1 mm
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)07/01/2006
Net Weight0,191 kg

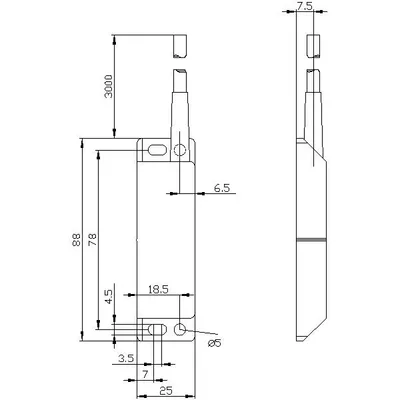

height of the sensor13 mm
length of the sensor88 mm
width of the sensor25 mm
material of the active sensor areaPlastic, glass-fiber reinforced thermoplastic
Ambient conditions
ambient temperature during operation-25... +70 °C
Control circuit/ Control
type of voltageAC/DC
operating voltage rated value100 V
operational current rated value250 mA
operating power rated value3 W

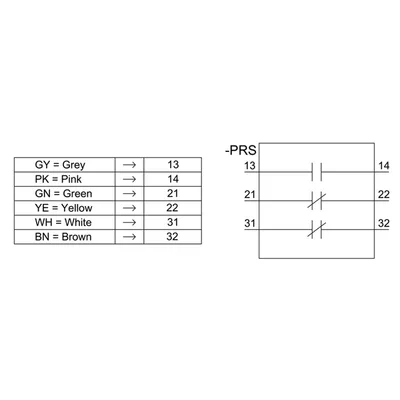

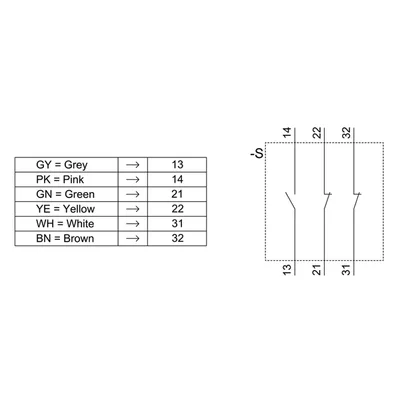

number of NC contacts for auxiliary contacts2
number of NO contacts for auxiliary contacts1
Enclosure
design of the housingblock
material of the enclosurePlastic, glass-fiber reinforced thermoplastic
material of cable sheathPVC
Actuator
design of the actuating elementmagnet
Display
evaluation unit requiredyes
Contact
circuit principlereed switches
switching frequency5 Hz
assured operating distance OFF15 mm
assured operating distance ON5 mm
design of the switching functionNC contact ve NO contact
Installation/ mounting/ dimensions
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectioncable
wire length3 m
Inputs/ Outputs
type of switching outputReed contacts
Safety related data
category according to EN 954-14
ISO 13849
performance level (PL) according to EN ISO 13849-1e
IEC 61508
Safety Integrity Level (SIL) according to IEC 615083
Aksesuarlar 1
Siemens 3SE6606-2BA04 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SX3260 | Aksesuar · Miscellaneous accessories · spacers |
