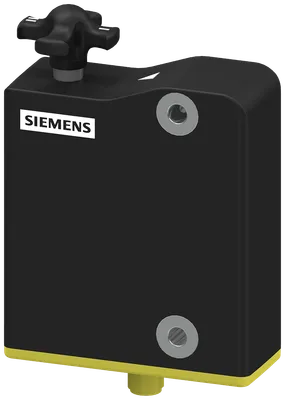

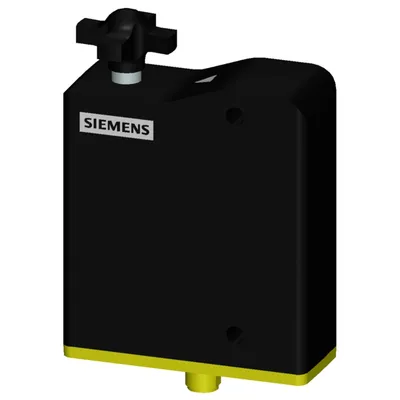

Siemens 3SE6415-1AB02
RFID safety switch with tumbler, plastic, open-circuit principle, actuator monitoring, 24 V DC, with auxiliary release, IP69, locking force 1150 N, individually encoded multiple teach-in, coding level high according to ISO 14119, diagnostics output M12 plug 8-pole, 3 LEDs for display of the operating states, 3 directions of actuation, latching force with turnstile adjustable: 25 N or 50 N, hygienic design, actuator 3SE6410-1AC01 to be ordered separately
product brand nameSIRIUS
product categoryNon-contact safety switch
product designationRFID safety switch with tumbler
design of the productrectangular sensor unit
product type designation3SE64
positive openingYok
Ürün Hakkında
RFID safety switch with tumbler, plastic, open-circuit principle, actuator monitoring, 24 V DC, with auxiliary release, IP69, locking force 1150 N, individually encoded multiple teach-in, coding level high according to ISO 14119, diagnostics output M12 plug 8-pole, 3 LEDs for display of the operating states, 3 directions of actuation, latching force with turnstile adjustable: 25 N or 50 N, hygienic design, actuator 3SE6410-1AC01 to be ordered separately
Siemens 3SE6415-1AB02
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryNon-contact safety switch
product designationRFID safety switch with tumbler
design of the productrectangular sensor unit
product type designation3SE64
Product Function
positive openingYok
control function for downstream devicesYok
cross-circuit/short-circuit recognitionVar
suitability for use safety-related circuitsVar
General technical data
product featureindividually coded, programmable several times, catch 25N/50N
product feature suitable for series connectionVar
locking force1.500 N
according to EN ISO 141191.150 N
design of the RFID codingindividually coded, multiple teach-in capability
insulation voltage rated value32 V
degree of pollution according to EN 60664-13
overvoltage categoryClass III
surge voltage resistance rated value0,8 kV
no-load current rated value100 mA
protection class IPIP66 in accordance with EN 60529 IP67 in accordance with EN 60529 IP69 in accordance with EN 60529
according to IEC 60068-2-2730 g / 11 ms
vibration resistance according to IEC 60068-2-610... 150 Hz, amplitude 0,35 mm
switching frequency0,5 Hz
mechanical service life (operating cycles) typical1.000.000
noteşu şekilde kullanıldığında: door stop: ≥ 50,000 switching cycles (door masses ≤ 5 kg ve actuating speed ≤ 0,5 m/s)
relative ON period [%] of magnet coil100 %
reference code according to IEC 81346-2B
Substance Prohibitance (day/month/year)07/01/2006
Net Weight0,6 kg
Sensor
height of the sensor35 mm
length of the sensor120 mm
width of the sensor87,5 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation0... 60 °C
during storage and transport-10... +90 °C
operating resource protection class according to IEC 61140III
relative humidity during operation maximum93 %
notenon-condensing, non-icing
Control circuit/ Control
current consumption of magnet coil rated value100 mA
pickup current peak of magnet coil250 mA
duration of pickup current peak200 ms
Main circuit
operating voltage rated value24 V
operational current rated value250 mA
Enclosure
design of the housingspecial design
material of the enclosureplastic, fiberglass reinforced thermoplast, self-extinguishing
Actuator
Product equipment auxiliary release of guard lockingVar
product feature latchingVar
locking mechanism designopen-circuit principle
detent force adjustable 125 N
detent force adjustable 250 N
angular offset between guard locking and actuator maximum2°
Display
product function status displayVar
display version as status display by LED3 LEDs
Contact
circuit principlesolenoid-locked (open-circuit principle)
operating distance2 mm
assured operating distance OFF20 mm
assured operating distance ON1 mm

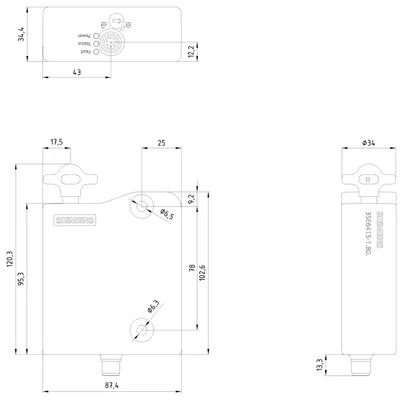

Installation/ mounting/ dimensions
fastening methodscrew fixing
design of the thread of the screw for securing the equipment2x M6
tightening torque of fixing screw minimum6 N·m
tightening torque of fixing screw maximum7 N·m
Connections/ Terminals
type of electrical connectionM12 plug, 8-pole, A-coded
wire length maximum200 m
of socket 1 at PIN 1A1 supply voltage Ub
of socket 1 at PIN 2X1 safety input 1
of socket 1 at PIN 3A2 GND
of socket 1 at PIN 4OSSD1 safety output 1
of socket 1 at PIN 5OUT diagnostic output
of the bushing 1 at PIN 6X2 safety input 2
of the bushing 1 at PIN 7OSSD2 safety output 2
of the bushing 1 at PIN 8IN magnet controller
Besleme gerilimi
type of voltage of the supply voltageDC
supply voltage rated value24 V
supply voltage26,4... 20,4 V
fuse protection type for external auxiliary power supply required2 A gG
Inputs/ Outputs
for signal <0> at DC-3... +5 V
for signal <1> at DC15... 30 V
input current at digital input for signal <1> typical10 mA
input current at safety-related digital input for signal <1> typical5 mA
for signaling function1
safety-related2
design of the contactless switching element safety-relatedshort-circuit proof, sourcing output
type of diagnostic outputshort-circuit proof, sourcing output
dark period at safety-related digital output maximum0,5 ms
at digital input maximum5 ms
at safety-related digital input maximum1 ms
at digital input minimum40 ms
at safety-related digital input minimum100 ms
at safety-related digital output maximum1.000 ms
residual current at digital output with signal <0> maximum0,5 mA
at safety-related output maximum2 V
at diagnostic output maximum2 V
output current minimum0,5 mA
output current at safety-related output maximum0,25 A
output current at diagnostic output maximum0,05 A
Communication/ Protocol
design of the interface for safety-related communicationconnector M12
transmission frequency rated value125 kHz
Safety related data
product function suitable for safety functionVar
category according to EN 954-14
IEC 62061
for position monitoring according to IEC 620613
for position monitoring according to IEC 620615.2E-9 1/h
ISO 13849
performance level (PL) according to EN ISO 13849-1e
category according to EN ISO 13849-14
for position monitoring according to ISO 13849-1e
for position monitoring according to ISO 13849-14
IEC 61508
Safety Integrity Level (SIL) according to IEC 615083
for position monitoring according to IEC 620614.5E-4
for position monitoring according to IEC 6150820 a
type of monitoringactuator
response delay maximum5.000 ms
when switched off via control inputs maximum1,5 ms
for safety-related shutdown via actuator maximum100 ms
conditional short-circuit current (Iq) at 400 V according to IEC 60947-4-1 rated value100 A
Aksesuarlar 14
Siemens 3SE6415-1AB02 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RK1902-4BA00-5AA0 | Aksesuar | |
| 3RK1902-4DA00-5AA0 | Aksesuar | |
| 3SX5601-2GA10 | Aksesuar | |
| 3SX5601-2GA03 | Aksesuar | |
| 3SX5601-2GA05 | Aksesuar | |
| 3SX5601-3SV18 | Aksesuar | |
| 6GT2090-0BE00 | Aksesuar | |
| 3SX5600-1F | Aksesuar | |
| 3SX5600-2F | Aksesuar | |
| 3SX5600-3F | Aksesuar | |
| 3SX5600-4F | Aksesuar | |
| 3SX5601-2GA15 | Aksesuar | |
| 3SX5601-3SY00-1AK4 | Aksesuar | |
| 3SE6410-1AC01 | Seçmeli zorunlu ürün |
