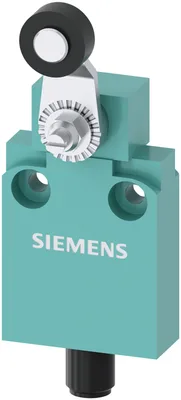

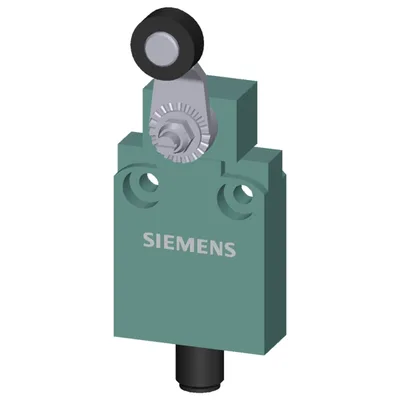

Siemens 3SE5423-0CN20-1EB1
konum anahtar in compact tasarım 40 mm wide ile konnektör plug M12 Snap-action contacts 1 NO+1 NC ile twist lever
product brand nameSIRIUS
product designationMechanical position switches
product type designation3SE5
product function positive openingVar
insulation voltage rated value400 V
degree of pollution3
Ürün Hakkında
konum anahtar in compact tasarım 40 mm wide ile konnektör plug M12 Snap-action contacts 1 NO+1 NC ile twist lever
Siemens 3SE5423-0CN20-1EB1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMechanical position switches
product type designation3SE5
General technical data
product function positive openingVar
insulation voltage rated value400 V
degree of pollution3
surge voltage resistance rated value4 kV
protection class IPIP67
according to IEC 60068-2-2730 g / 11 ms
vibration resistance according to IEC 60068-2-60,35 mm/5 g
mechanical service life (operating cycles) typical5.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current10 A
material of the enclosure of the switch headmetal
reference code according to IEC 81346-2B
active principlemechanical
repeat accuracy0,05 mm
Substance Prohibitance (day/month/year)07/01/2006
Net Weight0,142 kg
minimum actuating torque in directions of actuation0,2 N·m
length of the sensor95 mm
width of the sensor40 mm
Ambient conditions
during operation-25... +85 °C
during storage-25... +85 °C
explosion protection category for dustyok
design of the switching contactmechanical
operating frequency rated value50... 60 Hz
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
at 125 V rated value6 A
at 230 V rated value3 A
at 125 V rated value0,55 A
at 230 V rated value0,27 A
Enclosure
design of the housingblock
material of the enclosuremetal
coating of the enclosurepainted
design of the housing according to standardYok
Drive Head
design of the actuating elementtwist lever
shape of the switch headlever
design of the switching functionpositive opening
circuit principlesnap-action contacts
number of switching contacts safety-related1
design of plug-in connectionM12 connector, 5-pole: pin 1= terminal BK, pin 2= BK/WH, pin 3= BU, pin 4= BN, pin 5= GN/YE

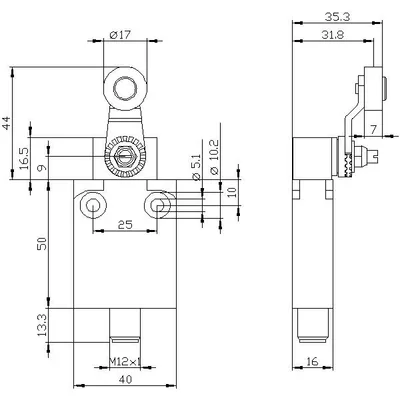

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectionM12 plug, fixed, 5-pole
design of the interface for safety-related communicationwithout
Communication/ Protocol
design of the interfacewithout
Aksesuarlar 3
Siemens 3SE5423-0CN20-1EB1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SX5601-3SB55 | Aksesuar | |
| 3SY3027 | Aksesuar · Miscellaneous accessories · base plates | |
| 3SY3110 | Aksesuar · Miscellaneous accessories · laminations |
