Siemens 3SE5413-0CD20-1EA2

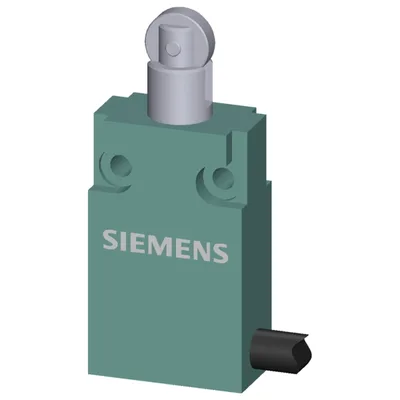

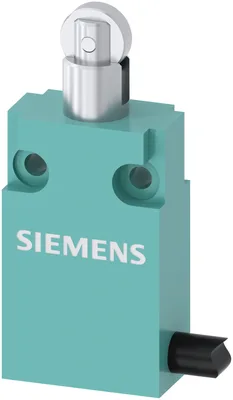

Position switch in compact design 30 mm wide with connection cable 2 m Snap-action contacts 1 NO+1 NC with roller plunger
product brand nameSIRIUS
product designationMechanical position switches
product type designation3SE5
product function positive openingVar
insulation voltage rated value400 V
degree of pollution3
Ürün Hakkında
Position switch in compact design 30 mm wide with connection cable 2 m Snap-action contacts 1 NO+1 NC with roller plunger
Siemens 3SE5413-0CD20-1EA2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationMechanical position switches
product type designation3SE5
General technical data
product function positive openingVar
insulation voltage rated value400 V
degree of pollution3
surge voltage resistance rated value4 kV
protection class IPIP67
according to IEC 60068-2-2730 g / 11 ms
vibration resistance according to IEC 60068-2-60,35 mm/5 g
mechanical service life (operating cycles) typical5.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical100.000
thermal current10 A
material of the enclosure of the switch headstainless steel
reference code according to IEC 81346-2B
active principlemechanical
repeat accuracy0,05 mm
Substance Prohibitance (day/month/year)07/01/2006
Net Weight0,297 kg
minimum actuating force in directions of actuation15 N
length of the sensor70 mm
width of the sensor30 mm
Ambient conditions
during operation-25... +85 °C
during storage-25... +85 °C
explosion protection category for dustyok
design of the switching contactmechanical
operating frequency rated value50... 60 Hz
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
at 125 V rated value6 A
at 230 V rated value3 A
at 125 V rated value0,55 A
at 230 V rated value0,27 A
Enclosure
design of the housingblock
material of the enclosuremetal
coating of the enclosurepainted
design of the housing according to standardYok
material of cable sheathPVC
Drive Head
design of the actuating elementroller plunger
shape of the switch headroller
design of the switching functionpositive opening
circuit principlesnap-action contacts
number of switching contacts safety-related1

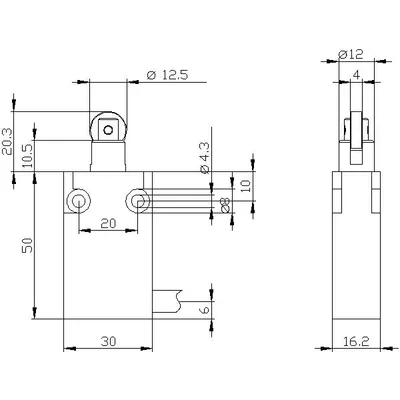

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew fixing
Connections/ Terminals
type of electrical connectioncable, 5 x 0.75mm²
design of the interface for safety-related communicationwithout
Communication/ Protocol
design of the interfacewithout
